316-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 34POS 0.156

Part	Material - Insulation	Termination Rows	Card Type	Flange Feature	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Read Out	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions [custom]	Number of Rows [custom]	Gender	Contact Finish	Number of Positions	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 316-034-521-108	Polyester Thermoplastic	1	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Dual	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	34	2	Female	Gold

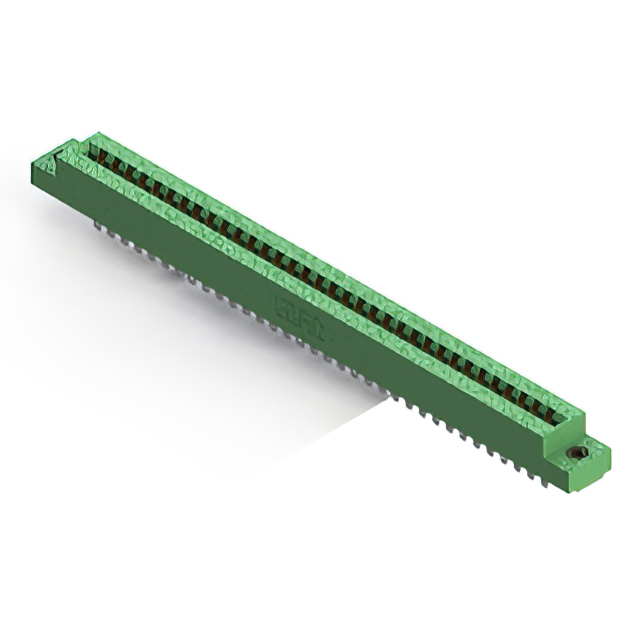

EDAC Inc. 316-034-500-108	Polyester Thermoplastic	1	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	Dual	Copper Alloy	Solder Eyelet(s)	0.25 Ám	10 Áin	Green	34	2	Female	Gold
EDAC Inc. 316-034-520-108	Polyester Thermoplastic	1	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	Dual	Copper Alloy	Solder	0.25 Ám	10 Áin	Green		2	Female	Gold	68 positions

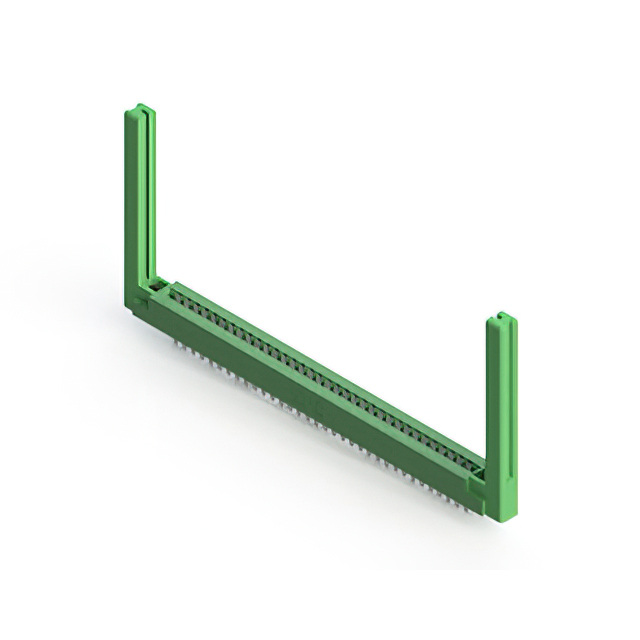

EDAC Inc. 316-034-400-158	Polyester Thermoplastic	1	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	Dual	Copper Alloy	Solder Eyelet(s)			Green		2	Female	Tin	68 positions	Card Guides
EDAC Inc. 316-034-500-102	Polyester Thermoplastic	1	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	Dual	Copper Alloy	Solder Eyelet(s)	0.25 Ám	10 Áin	Green	34	2	Female	Gold			3.25 mm	0.128 "

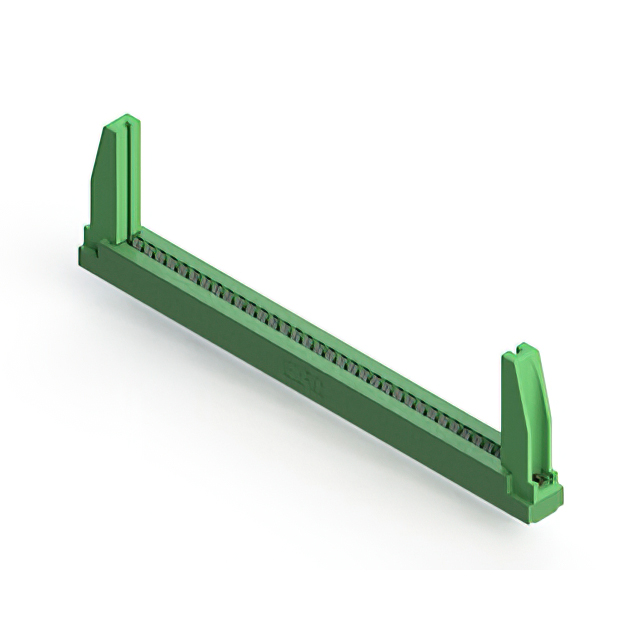

EDAC Inc. 316-034-420-178	Polyester Thermoplastic	1	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	Dual	Copper Alloy	Solder			Green		2	Female	Tin	68 positions	Card Guides

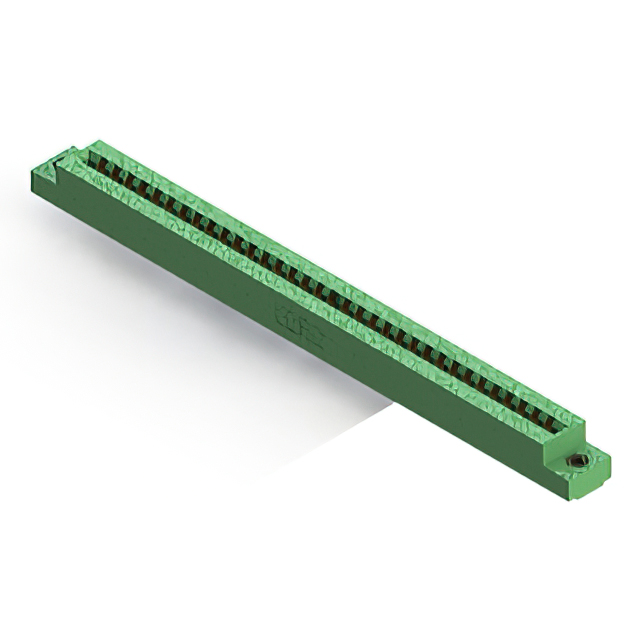

EDAC Inc. 316-034-521-107	Polyester Thermoplastic	1	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Dual	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	34	2	Female	Gold

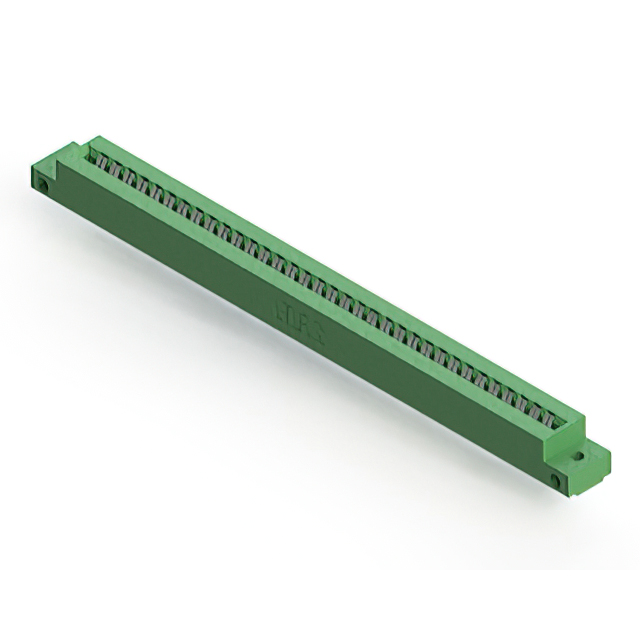

EDAC Inc. 316-034-420-112	Polyester Thermoplastic	1	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	Dual	Copper Alloy	Solder			Green		2	Female	Tin	68 positions		3.25 mm	0.128 "

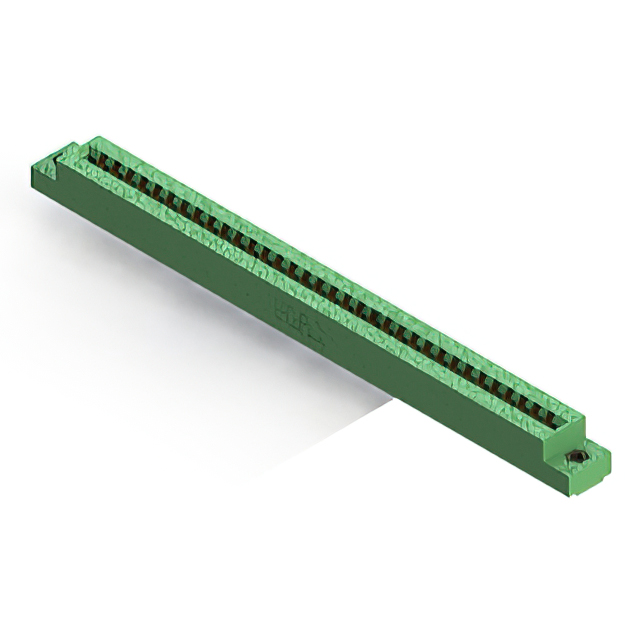

EDAC Inc. 316-034-520-107	Polyester Thermoplastic	1	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Dual	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	34	2	Female	Gold
EDAC Inc. 316-034-421-107	Polyester Thermoplastic	1	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	34	-40 C	105 ░C	Cantilever	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	Dual	Copper Alloy	Solder			Green		2	Female	Tin	68 positions
