A561 Series
Manufacturer: American Opto Plus LED
Beta
⌘K

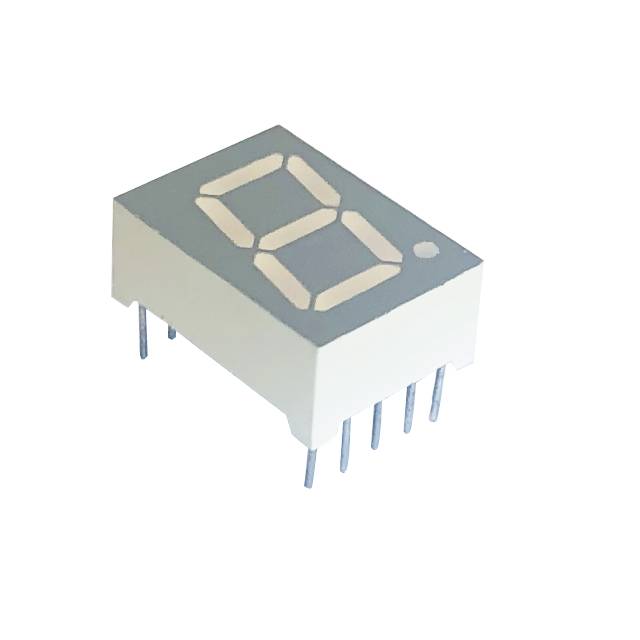

DISPLAY 7SEG 0.56" SGL RED 18DIP
| Part | Millicandela Rating | Current - Test | Color | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Common Pin | Power Dissipation (Max) [Max] | Package / Case | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Wavelength - Peak | Display Type | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Opto Plus LED | 6 mcd | 20 mA | Red | 0.56 in | 14.22 mm | 1 | Common Anode | 75 mw | 0.6 in 15.24 mm | 10-DIP | 12.6 mm | 0.325 in | 19 mm | 8.25 mm | 0.748 in | 0.496 in | 655 nm | 7-Segment | 1.8 V |
