UF9439 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

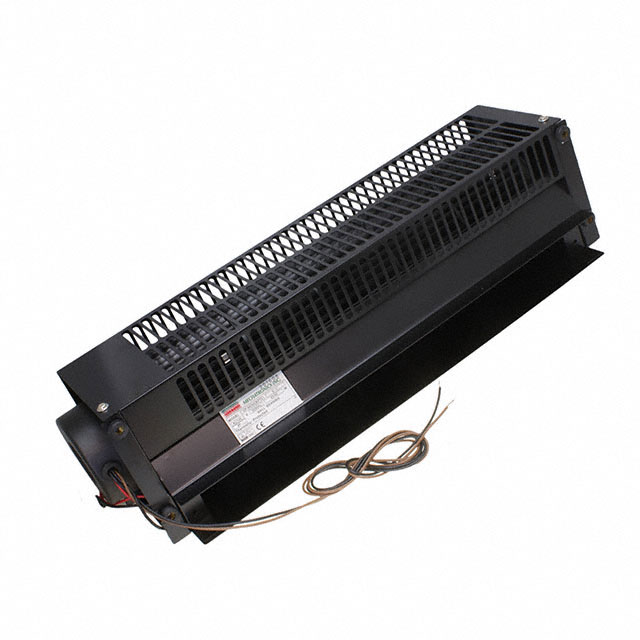

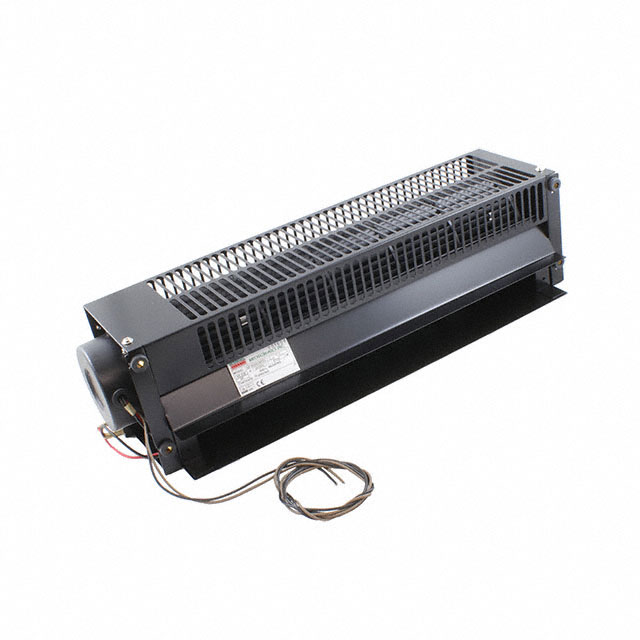

FAN BLWR CF 230VAC 510X150X130MM
| Part | Material - Frame | Current Rating (Amps) | Material - Blade [custom] | Termination | Weight | Weight | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Fan Type | Width [y] | Approval Agency | RPM | Power (Watts) | Noise | Features | Static Pressure | Static Pressure | Air Flow | Air Flow | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Steel | 0.22 A | Aluminum | 2 Wire Leads | 7.7 lbs | 3.5 kg | 130 mm | 510 mm | Rectangular | -40 C | 70 °C | 70 °C | -40 °C | Ball | Blower Cross Flow | 125 mm | CE TUV | 1600 RPM | 50 W | 53 dB | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 44.8 Pa | 0.18 in H2O | 8.9 m³/min | 318 CFM | 230 VAC |
 Mechatronics Fan Group | Steel | 400 mA | Aluminum | 2 Wire Leads | 7.7 lbs | 3.5 kg | 130 mm | 510 mm | Rectangular | -40 C | 70 °C | 70 °C | -40 °C | Ball | Blower Cross Flow | 125 mm | CE TUV | 1600 RPM | 50 W | 53 dB | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 44.8 Pa | 0.18 in H2O | 8.9 m³/min | 318 CFM | 120 VAC |
