S11MCC-P Series

Manufacturer: ODU

Catalog

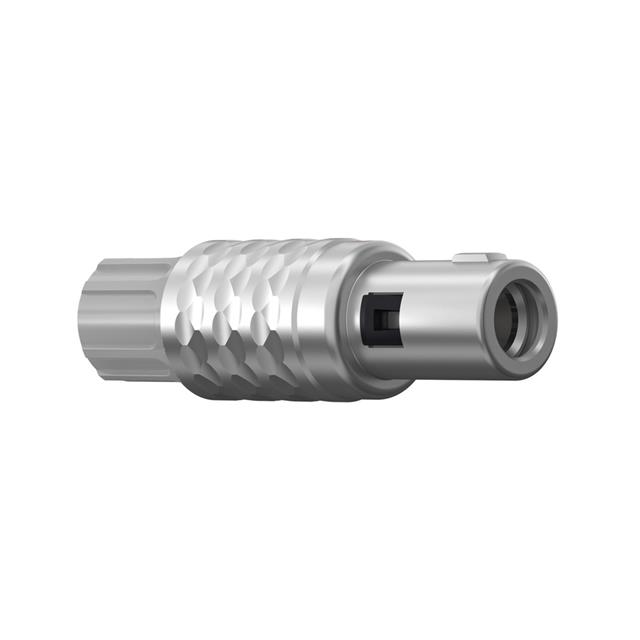

ODU MEDI-SNAP METAL, STRAIGHT PL

Part	Fastening Type	Connector Type	Cable Opening	Cable Opening [Max]	Cable Opening [Min]	Shell Finish	Applications	Ingress Protection	Number of Positions	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Color	Primary Material	Voltage Rating	Orientation	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Backshell Material, Plating	Shielding	Features	Insert Material	Contact Finish - Mating	Contact Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]
ODU S11MCC-P06MFG0-5230	Detent Lock Push-Pull	Plug Male Pins	4 mm 5.2 mm	0.205 in	0.157 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	6	Free Hanging (In-Line)	UL94 V-0	7.5 A	Silver White	Metal	33 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass
ODU S11MCC-P07MFG0-5220	Detent Lock Push-Pull	Plug Male Pins	4 mm 5.2 mm	0.205 in	0.157 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	7	Free Hanging (In-Line)	UL94 V-0	7.5 A	Red Silver	Metal	33 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass
ODU S11MCC-P04MJG0-5250	Detent Lock Push-Pull	Plug Male Pins	4 mm 5.2 mm	0.205 in	0.157 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	4	Free Hanging (In-Line)	UL94 V-0	7.5 A	Green Silver	Metal	48 VDC	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass
ODU S11MCC-P06MFG0-3970	Detent Lock Push-Pull	Plug Male Pins		0.154 in	0.106 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	6	Free Hanging (In-Line)	UL94 V-0	7.5 A	Gray Silver	Metal	33 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass	3.9 mm	2.7 mm
ODU S11MCC-P14MCC0-5230	Detent Lock Push-Pull	Plug Male Pins	4 mm 5.2 mm	0.205 in	0.157 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	14	Free Hanging (In-Line)	UL94 V-0	4 A	Silver White	Metal	25 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass
ODU S11MCC-P06MFG0-5280	Detent Lock Push-Pull	Plug Male Pins	4 mm 5.2 mm	0.205 in	0.157 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	6	Free Hanging (In-Line)	UL94 V-0	7.5 A	Black Silver	Metal	33 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass
ODU S11MCC-P12MCC9-5230	Detent Lock Push-Pull	Plug Male Pins	4 mm 5.2 mm	0.205 in	0.157 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	12	Free Hanging (In-Line)	UL94 V-0	4 A	Silver White	Metal	25 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass
ODU S11MCC-P14MCC0-3940	Detent Lock Push-Pull	Plug Male Pins		0.154 in	0.106 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	14	Free Hanging (In-Line)	UL94 V-0	4 A		Metal	25 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass	3.9 mm	2.7 mm
ODU S11MCC-P02MPH0-6540	Detent Lock Push-Pull	Plug Male Pins		0.256 in	0.209 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	2	Free Hanging (In-Line)	UL94 V-0	12 Amps		Metal	48 VDC	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass		5.3 mm	6.5 mm
ODU S11MCC-P06MFG0-3940	Detent Lock Push-Pull	Plug Male Pins		0.154 in	0.106 in	Chrome	Industrial Medical Testing Equipment & Measurement	IP50 - Dust Protected	6	Free Hanging (In-Line)	UL94 V-0	7.5 A		Metal	33 V	C	Brass	120 °C	-50 °C	1	Brass Chrome	Unshielded	Backshell	Polyetheretherketone (PEEK)	Gold	Brass	3.9 mm	2.7 mm
