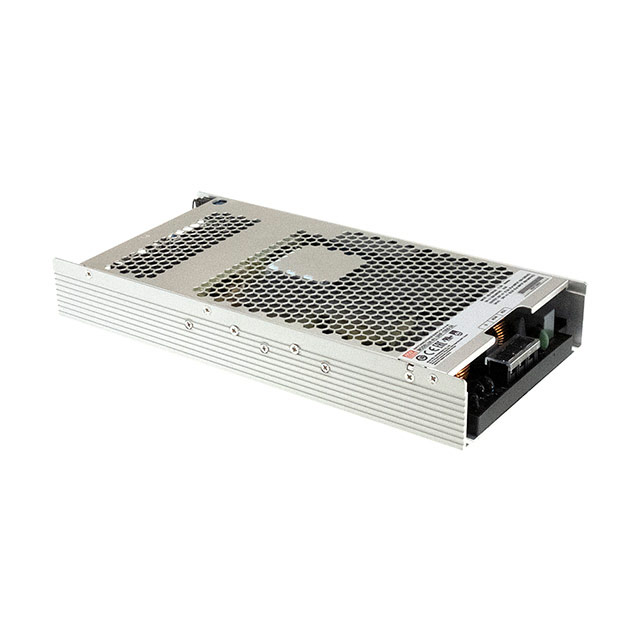

UHP-1500 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 1500W
| Part | Applications | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Type | Voltage - Isolation | Voltage - Output 1 | Current - Output 1 | Number of Outputs | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 1500 W | 90 VAC 250 VDC | 264 VAC 370 VDC | Chassis Mount | -30 °C | 70 °C | Enclosed | 3750 VDC | 24 V | 62.5 A | 1 | CB CE cURus EAC | 41 mm | 290 mm | 140 mm | 5.51 in | 1.61 " | 11.42 in | 95 % | Adjustable Output PFC Remote On/Off Universal Input |
