PRPC016 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 32POS 2.54MM

Part	Contact Finish Thickness - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Shape	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Fastening Type	Contact Finish - Mating	Insulation Color	Current Rating (Amps)	Termination	Number of Rows [custom]	Number of Positions	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PRPC016DABN-RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	5.84 mm	0.23 "	Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm	0.558 in	14.18 mm	Unshrouded	0.1 in	2.54 mm	All	Gold	0.23 in	5.84 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder	2

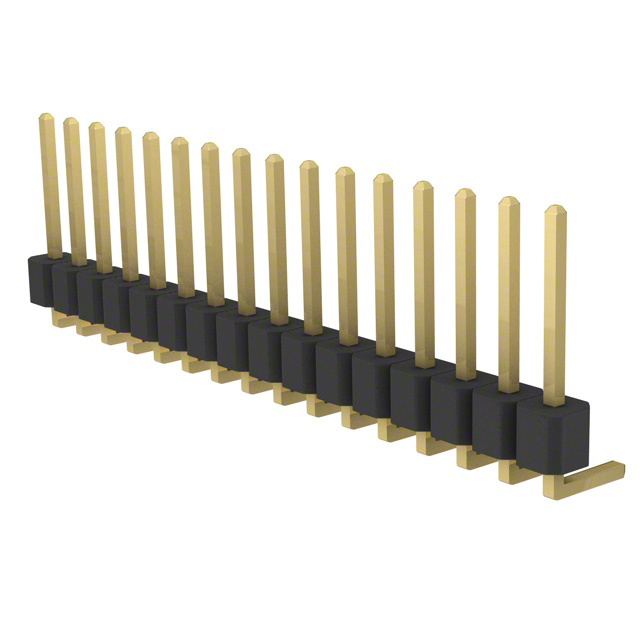

Sullins Connector Solutions PRPC016SGAN-M71RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	3.05 mm	0.12 in	Right Angle Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm			Unshrouded			All	Gold	0.318 in	8.08 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder		16	1
Sullins Connector Solutions PRPC016SFAN-RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	3.05 mm	0.12 in	Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm			Unshrouded			All	Gold	0.318 in	8.08 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder		16	1	13.63 mm	0.537 in

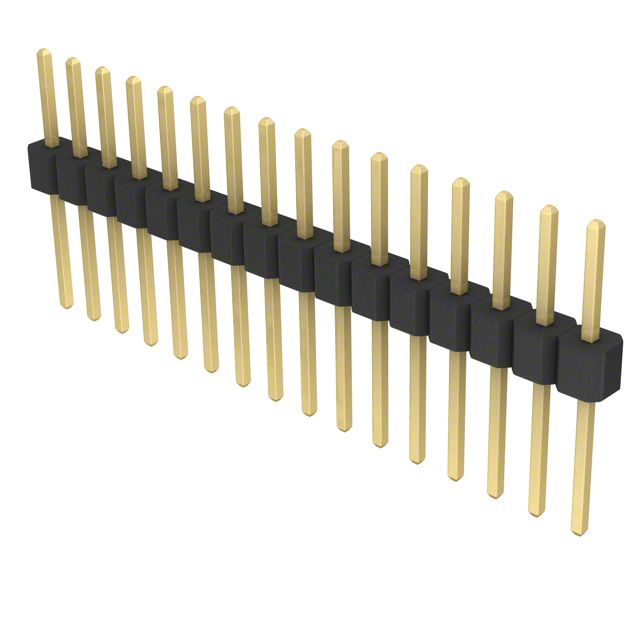

Sullins Connector Solutions PRPC016SACN-RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	8.13 mm	0.32 in	Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm			Unshrouded			All	Gold	0.23 in	5.84 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder		16	1	16.47 mm	0.648 in
Sullins Connector Solutions PRPC016SBAN-M71RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	3.05 mm	0.12 in	Right Angle Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm			Unshrouded			All	Gold	0.23 in	5.84 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder		16	1

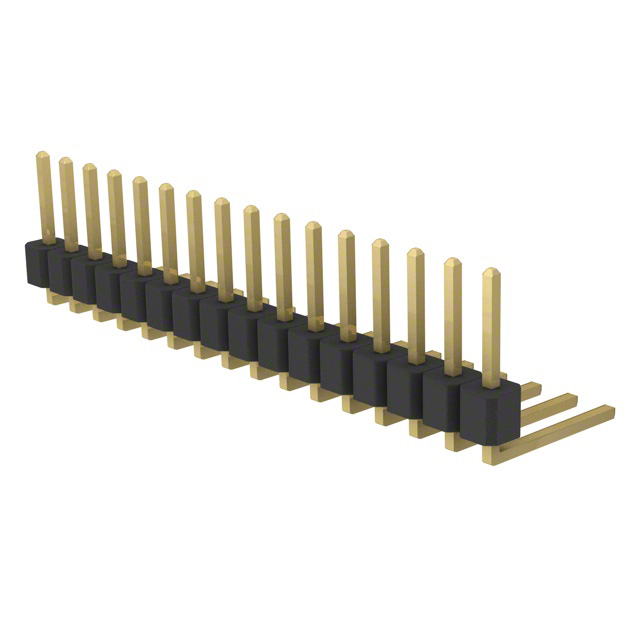

Sullins Connector Solutions PRPC016SBCN-M71RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	8.13 mm	0.32 in	Right Angle Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm			Unshrouded			All	Gold	0.23 in	5.84 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder		16	1
Sullins Connector Solutions PRPC016DAAN-RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	3.05 mm	0.12 in	Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm	0.448 in	11.39 mm	Unshrouded	0.1 in	2.54 mm	All	Gold	0.23 in	5.84 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder	2
Sullins Connector Solutions PRPC016SAAN-RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	3.05 mm	0.12 in	Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm	0.448 in	11.39 mm	Unshrouded			All	Gold	0.23 in	5.84 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder		16	1
Sullins Connector Solutions PRPC016SADN-RC	Flash	Polybutylene Terephthalate (PBT)	Flash	Brass	10.67 mm	0.42 in	Through Hole	Square	Male Pin	-40 C	105 ░C	Board to Board Cable	0.1 "	2.54 mm	0.748 in	19.01 mm	Unshrouded			All	Gold	0.23 in	5.84 mm	UL94 V-0	0.098 "	2.5 mm	Header Breakaway	Push-Pull	Gold	Black	3 A	Solder		16	1
