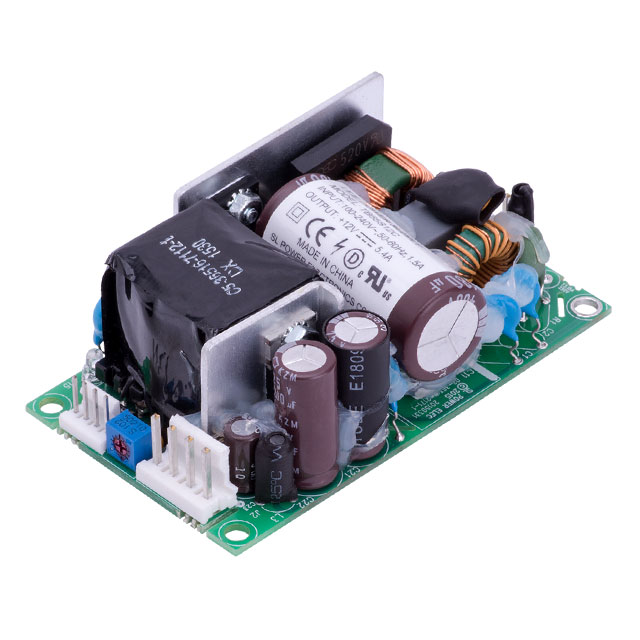

TB65S24 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.7A 65W 11-PIN

Part	Minimum Load Required	Type	Number of Outputs	Voltage - Isolation	Mounting Type	Efficiency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Current - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features
SL POWER / Advanced Energy TB65S24C		Open Frame	1	3000 V	Chassis Mount	90 %	24 V	2 in	50.8 mm	88.9 mm	1.3 in	3.5 "	33.1 mm	CE cURus DEMKO	2.7 A	ITE (Commercial)	70 °C	-20 °C	Adjustable Output Universal Input
SL POWER / Advanced Energy TB65S24K		Open Frame	1	3000 V	Chassis Mount	90 %	24 V	2 in	50.8 mm	88.9 mm	1.3 in	3.5 "	33.1 mm	CE cURus DEMKO	2.7 A	ITE (Commercial)	70 °C	-20 °C	Adjustable Output Universal Input
