KMF1.1213 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

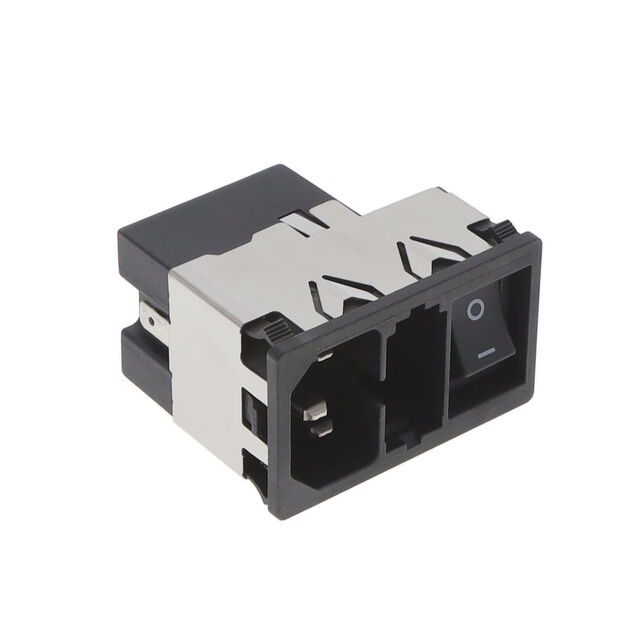

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Material Flammability Rating | Accomodates a Fuse | Mounting Type | Termination | Termination | Termination | Connector Type | Connector Style | Fuse Holder, Drawer | Voltage Rating - Appliance Inlet | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Approval Agency | Current Rating - Filter | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating - Appliance Inlet | Switch Features | Features | Ingress Protection | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | UL94 V-0 | Panel Mount Snap-In | 0.189 " | 4.8 mm | Quick Connect | Receptacle Male Blades - Module | IEC 320-C14 | Drawer Sold Separate | 250 VAC | 2.5 mm | 0.039 in | 0.098 in | 1 mm | CCC cULus ENEC | 1 A | 28.8 mm | 47.8 mm | 10 A | Switch On-Off | Shielded | IP40 | Filtered (EMI RFI) - Commercial Medical |
