SPMWHD32 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

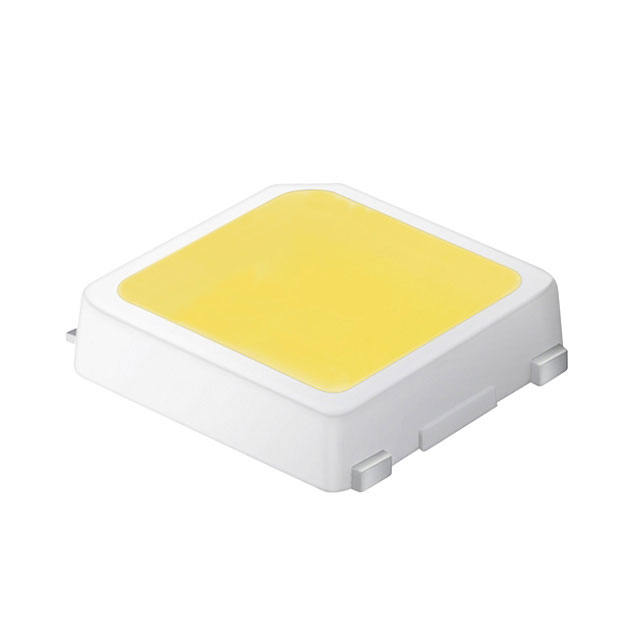

LED LM301B WARM WHT 2700K 3030

Part	Thermal Resistance of Package	CRI (Color Rendering Index)	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Current - Max [Max]	Flux @ 25°C, Current - Test	CCT (K)	CCT (K)	Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Color	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Samsung Semiconductor, Inc. SPMWHD32AMD5XAW3S0	7.5 ░C/W	80	120 °	0.033 in	0.85 mm	3030	200 mA	34 lm	2700 K	3-Step MacAdam Ellipse	65 mA	190 lm/W	2.75 V	3030 Metric	1212	Warm White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "
Samsung Semiconductor, Inc. SPMWHD32AMD3XAR0S0	7.5 ░C/W	70	120 °	0.033 in	0.85 mm	3030	180 mA	39 lm	5000 K		65 mA	218 lm/W	2.75 V	3030 Metric	1212	Cool White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	42 lm	36 lm
Samsung Semiconductor, Inc. SPMWHD32AMD3XARSS0	7.5 ░C/W	70	120 °	0.033 in	0.85 mm	3030	180 mA	39 lm	5000 K		65 mA	218 lm/W	2.75 V	3030 Metric	1212	Cool White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	42 lm	36 lm
Samsung Semiconductor, Inc. SPMWHD32AMD5XATKS0	7.5 ░C/W	80	120 °	0.033 in	0.85 mm	3030	180 mA	38 lm	4000 K		65 mA	212 lm/W	2.75 V	3030 Metric	1212	Neutral White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "
Samsung Semiconductor, Inc. SPMWHD32AMD7XATKS0	7.5 ░C/W	90	120 °	0.033 in	0.85 mm	3030	180 mA	31 lm	4000 K		65 mA	173 lm/W	2.75 V	3030 Metric	1212	Neutral White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	34 lm	28 lm
Samsung Semiconductor, Inc. SPMWHD32AMD7XAV0S0	7.5 ░C/W	90	120 °	0.033 in	0.85 mm	3030	180 mA	29 lm	3000 K		65 mA		2.75 V	3030 Metric	1212	Warm White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	32 lm	26 lm
Samsung Semiconductor, Inc. SPMWHD32AMV5XAQ3SU	7.5 ░C/W	80	120 °	0.035 in	0.9 mm	1212	200 mA	41 lm	5700 K	3-Step MacAdam Ellipse	65 mA	229 lm/W	2.75 V	3030 Metric	1212	Cool White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	42 lm	39 lm
Samsung Semiconductor, Inc. SPMWHD32AMVKXAU3SW	7.5 ░C/W	90	120 °	0.035 in	0.9 mm	3030	200 mA	36 lm	3500 K	3-Step MacAdam Ellipse	65 mA	198 lm/W	2.8 V	3030 Metric	1212	Warm White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "
Samsung Semiconductor, Inc. SPMWHD32AMD5XAP0S0	7.5 ░C/W	80	120 °	0.033 in	0.85 mm	3030	180 mA	38 lm	6500 K		65 mA	212 lm/W	2.75 V	3030 Metric	1212	Cool White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "
Samsung Semiconductor, Inc. SPMWHD32AMD3XAUKS0	7.5 ░C/W	70	120 °	0.033 in	0.85 mm	3030	180 mA	37 lm	3500 K		65 mA	207 lm/W	2.75 V	3030 Metric	1212	Warm White	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	40 lm	34 lm
