LL3301 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Termination Style	Circuit	Actuator Height off PCB, Vertical [z]	Operating Force	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Actuator Type	Mounting Type	Actuator Orientation	Contact Rating @ Voltage	Illumination	Actuator Height off PCB, Vertical	Mechanical Life
E-Switch LL3301AF065QG	0.25 mm	Gull Wing	SPST-NO	5 mm	65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated
E-Switch LL3301SPF065QJ	0.25 mm	J Lead	SPST-NO		65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Plunger for Cap	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated	7.5 mm
E-Switch LL3301DF065QJ	0.25 mm	J Lead	SPST-NO		65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated	13 mm
E-Switch LL3301BF065QJ-TR	0.25 mm	J Lead	SPST-NO	9.5 mm	65 gf	Off-Mom	70 °C	-20 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated		5000000 Cycles
E-Switch LL3301FF065QJ	0.25 mm	J Lead	SPST-NO	7 mm	65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated

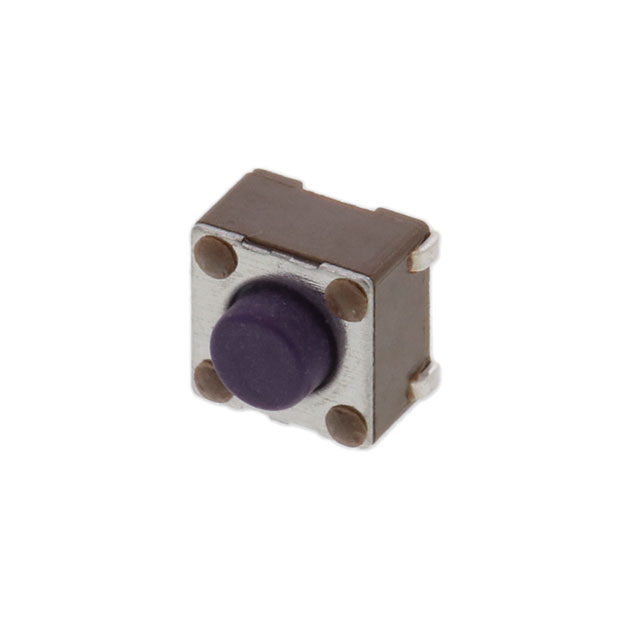

E-Switch LL3301AF065QJ	0.25 mm	J Lead	SPST-NO	5 mm	65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated

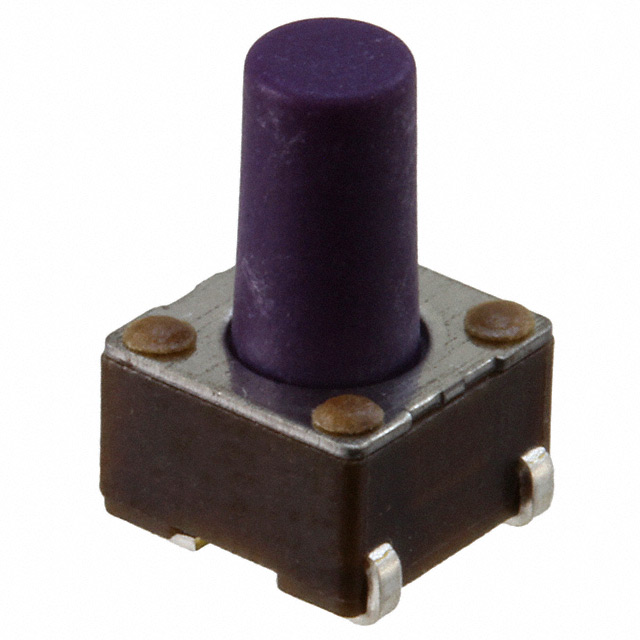

E-Switch LL3301BF065QJ	0.25 mm	J Lead	SPST-NO	9.5 mm	65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated
E-Switch LL3301BF065QG	0.25 mm	Gull Wing	SPST-NO	9.5 mm	65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated

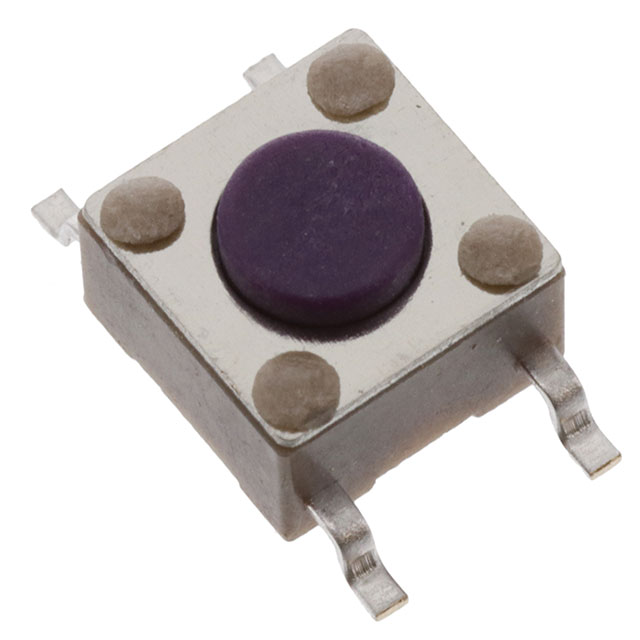

E-Switch LL3301NF065QG	0.25 mm	Gull Wing	SPST-NO	4.3 mm	65 gf	Off-Mom	85 °C	-30 ░C	6 mm	6 mm	Standard	Surface Mount	Top Actuated	0.05 A 12 VDC	Non-Illuminated
