0.30mm Pitch FPC Connector, 1.00mm Mated Height, Right-Angle, Surface Mount, Non-ZIF, Dual Contact Style, 17 Circuits, Halogen-Free
0.30mm Pitch FPC Connector, 1.00mm Mated Height, Right-Angle, Surface Mount, Non-ZIF, Dual Contact Style, 17 Circuits, Halogen-Free
0.30mm Pitch FPC Connector, 1.00mm Mated Height, Right-Angle, Surface Mount, Non-ZIF, Dual Contact Style, 17 Circuits, Halogen-Free
| Part | Contact Finish | Termination | Pitch [x] | Pitch [x] | Mating Cycles | Voltage Rating | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Housing Material | Connector/Contact Type | Number of Positions | Material Flammability Rating | Housing Color | Cable End Type | FFC, FCB Thickness | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

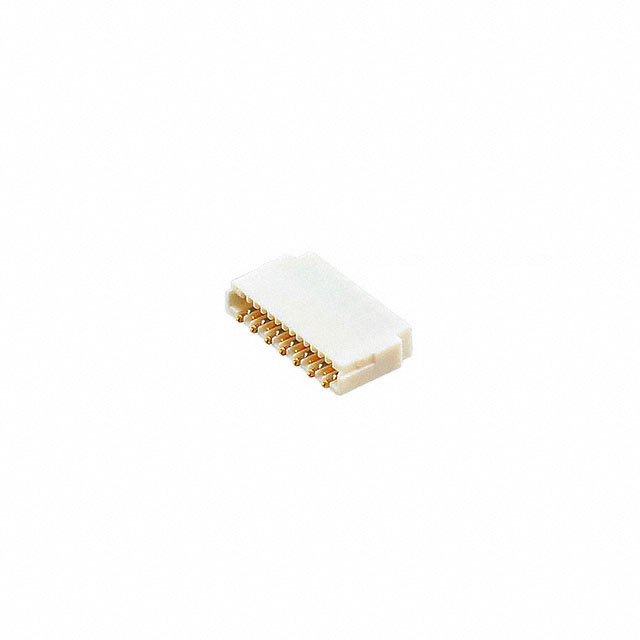

 Molex | Gold | Solder | 0.012 in | 0.3 mm | 10 | 50 V | FPC | 1 mm | 0.039 in | Liquid Crystal Polymer (LCP) Glass Filled | Contacts Top and Bottom | 13 | UL94 V-0 | White | Tapered | 0.3 mm | Surface Mount Right Angle | 85 °C | -40 °C | Phosphor Bronze | 300 mA |

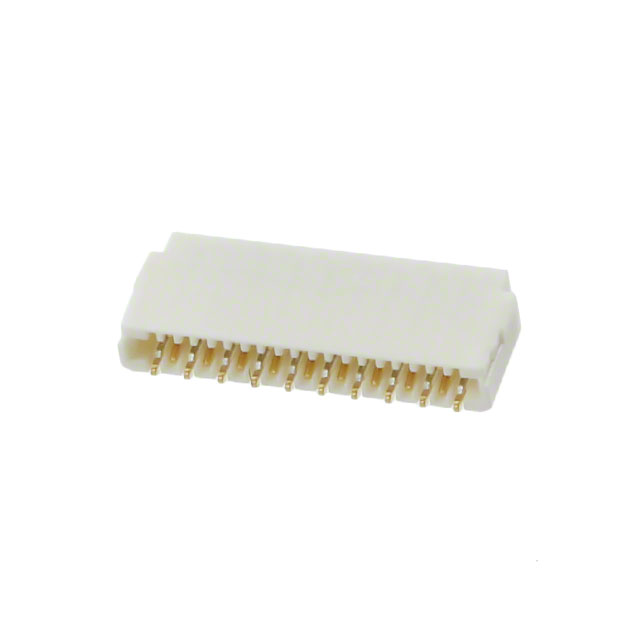

 Molex | Gold | Solder | 0.012 in | 0.3 mm | 10 | 50 V | FPC | 1 mm | 0.039 in | Liquid Crystal Polymer (LCP) Glass Filled | Contacts Top and Bottom | 19 | UL94 V-0 | White | Tapered | 0.3 mm | Surface Mount Right Angle | 85 °C | -40 °C | Phosphor Bronze | 300 mA |

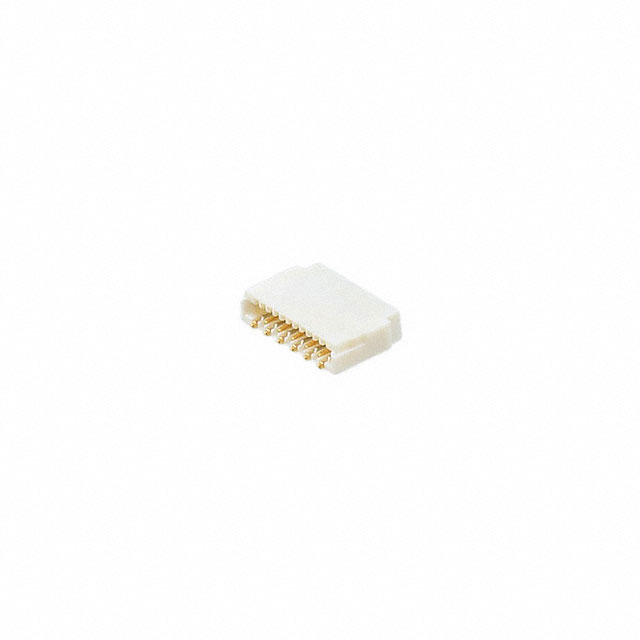

 Molex | Gold | Solder | 0.012 in | 0.3 mm | 10 | 50 V | FPC | 1 mm | 0.039 in | Liquid Crystal Polymer (LCP) Glass Filled | Contacts Top and Bottom | UL94 V-0 | White | Tapered | 0.3 mm | Surface Mount Right Angle | 85 °C | -40 °C | Phosphor Bronze | 300 mA |
