184A009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

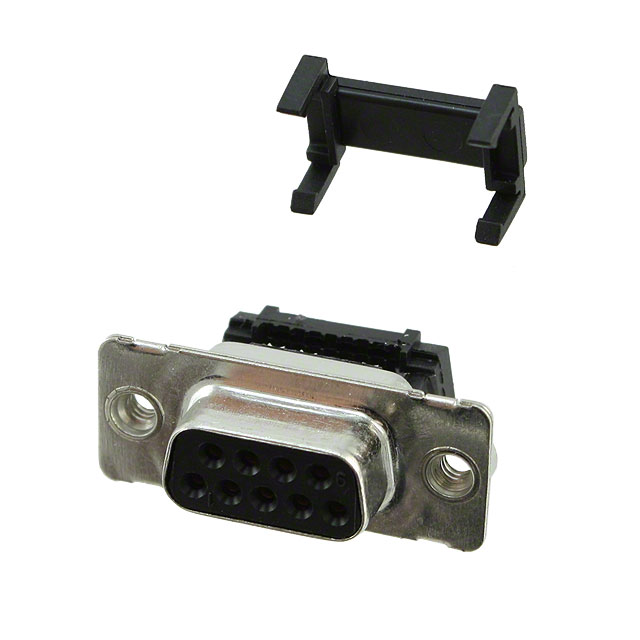

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, IDC / IDT, DE, 184A SERIES, STEEL BODY
| Part | Contact Material | Wire Gauge | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Current Rating (Amps) | Number of Positions | Features | Connector Type | Flange Feature | Contact Finish | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Material Flammability Rating | Contact Finish Thickness | Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Copper Alloy | 28 AWG | Black | Polyester Glass Filled | -55 C | 125 °C | 2 | 1.5 A | 9 | Feed Through Strain Relief | Receptacle Female Sockets | Cable Side (4-40) | Gold | Panel Mount | 1 | DE E | D-Sub | UL94 V-0 | Flash | IDC Ribbon Cable | Signal |

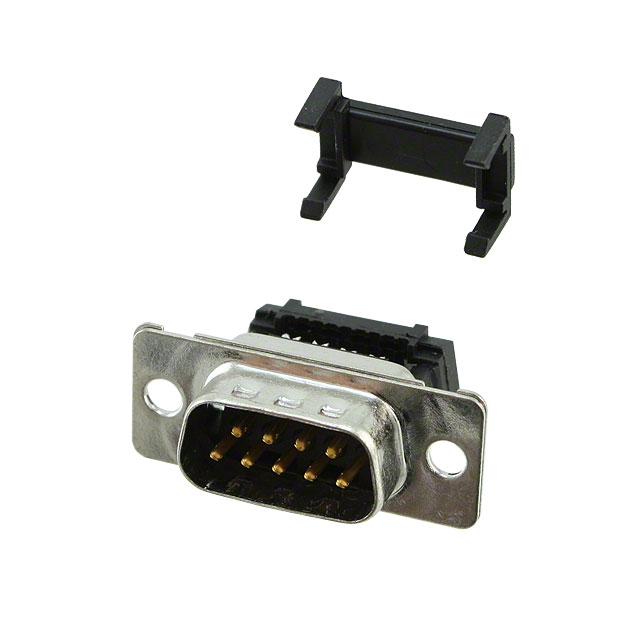

 NorComp Inc. | Copper Alloy | 28 AWG | Black | Polyester Glass Filled | -55 C | 125 °C | 2 | 1.5 A | 9 | Feed Through Grounding Indents Strain Relief | Plug Male Pins | Housing/Shell (Unthreaded) | Gold | Panel Mount | 1 | DE E | D-Sub | UL94 V-0 | Flash | IDC Ribbon Cable | Signal |
