342104 Series

Catalog

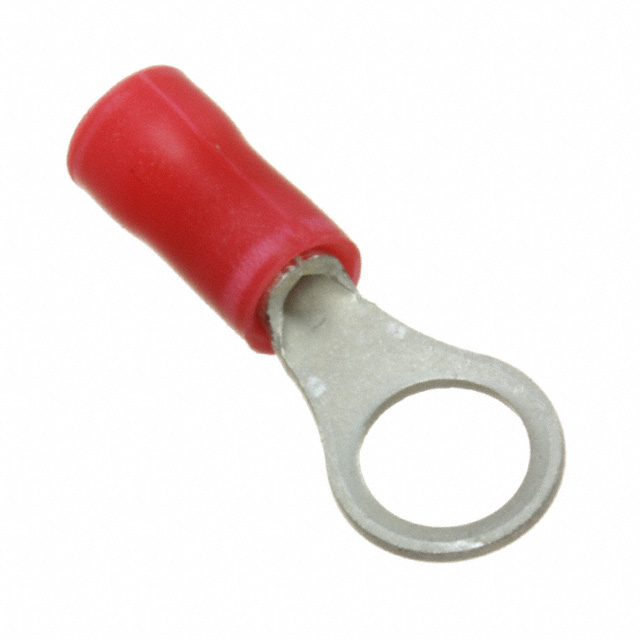

CONN RING CIRC 16-22AWG M5 CRIMP

Part	Features	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Contact Material	Thickness	Thickness	Terminal Type	Stud/Tab Size	Contact Finish	Termination	Color	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Width - Outer Edges [x]	Width - Outer Edges [x]	Material - Insulation	Insulation
TE Connectivity Raychem Cable Protection 342104-1	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG	0.861 in	21.87 mm	Copper	0.031 in	0.79 mm	Circular	M5 Stud	Tin	Crimp	Red	0.106 "	2.69 mm	0.142 in	3.61 mm	7.9 mm	0.311 in	Poly-Vinyl Chloride (PVC)	Insulated
TE Connectivity Raychem Cable Protection 2-342104-1	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG	0.861 in	21.87 mm	Copper	0.031 in	0.79 mm	Circular	M5 Stud	Tin	Crimp	Red	0.106 "	2.69 mm	0.142 in	3.61 mm	7.9 mm	0.311 in	Poly-Vinyl Chloride (PVC)	Insulated
