10299 Series
Manufacturer: Seeed Technology Co., Ltd
Beta
⌘K
SBC 1.8GHZ 4 CORE 2GB/16GB RAM
| Part | RAM Capacity/Installed | Ethernet | Ethernet | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Cores | Contents | Storage Interface | Expansion Site/Bus | RAM Capacity/Installed [custom] | RAM Capacity/Installed [custom] | Speed | USB | Core Processor | Video Outputs | Watchdog Timer | Number of Cores [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Digital I/O Lines | Form Factor | RS-232 (422, 485) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

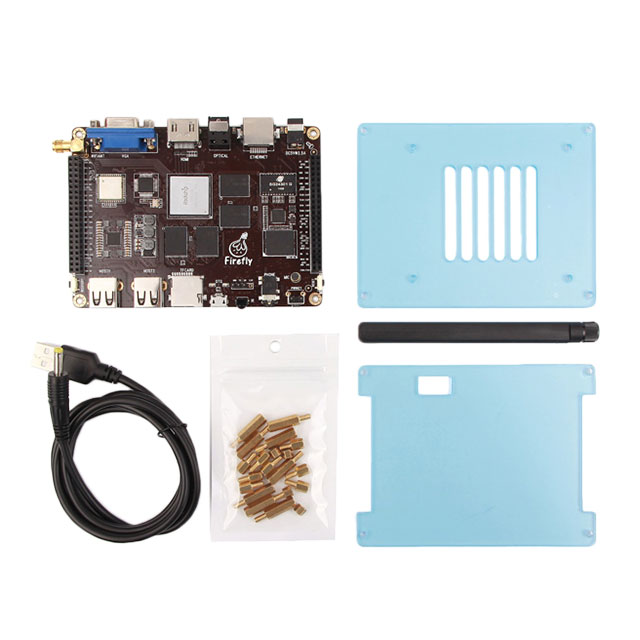

 Seeed Technology Co., Ltd | 2 GB 16 GB | 10 Mbps 100 Mbps 1000 Mbps | RJ45 | 4.646 in | 84.98 mm | 3.346 " | 118 mm | 4 | SD Card | eMMC microSD | GPIO I2C I2S SPI UART | 2 GB | 2 GB | 1.8 GHz | USB 2.0 (2) USB OTG (1) | Rockchip RK3288 ARM Cortex A17 | eDP HDMI LVDS MIPI-CSI VGA | |||||||
 Seeed Technology Co., Ltd | 0 MB 512 MB | 10 Mbps 100 Mbps | RJ45 | eMMC/SD SDIO | GPIO I2C SPI UART | 700 MHz | USB 2.0 (2) | Broadcom BCM2835 ARM1176JZF-S | DSI HDMI | 1 | ||||||||||||||
Seeed Technology Co., Ltd | 0 GB 1 GB | GbE | 2.17 " | 40 mm | 1.57 " | 55 mm | 4 | eMMC/SD | GPIO PCIe | 1.5 GHz | USB 2.0 (1) | Broadcom BCM2711 Arm Cortex-A72 | CSI DSI HDMI | 80 °C | 0 °C | |||||||||

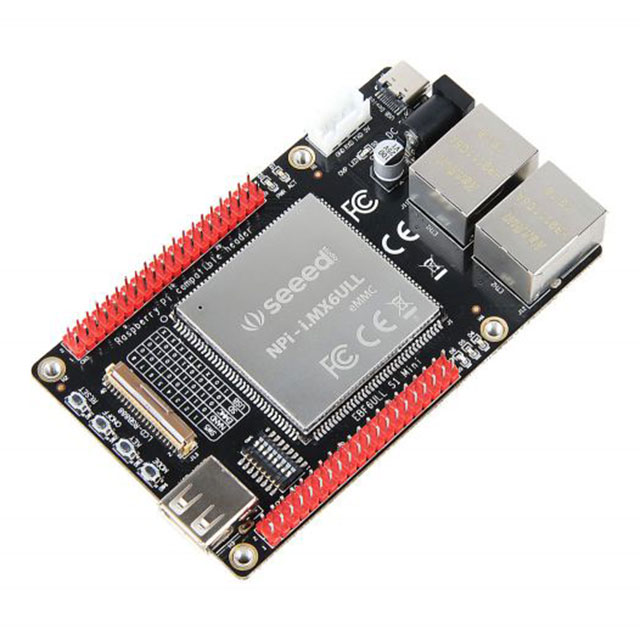

 Seeed Technology Co., Ltd | 8 GB 512 MB | SD Card | eMMC microSD NAND - Flash | I2C LCD SD | 800 MHz | USB OTG Type C (1) USB Type A (1) | NXP i.MX6ULL ARM Cortex A7 | 1 | 80 °C | -20 ░C | ||||||||||||||
 Seeed Technology Co., Ltd | 0 GB 1 GB | RJ45 (10/100/1000) (2) | 3.86 " | 98.04 mm | 3.86 " | 98.04 mm | 4 | eMMC M.2 | mPCIe | 1.5 GHz | USB 2.0 (2) | Raspberry Pi CM4 ARM Cortex-A72 | HDMI | 60 °C | 0 °C | |||||||||
Seeed Technology Co., Ltd | 0 GB 4 GB | RJ45 (10/100/1000) (2) | 3.86 " | 98.04 mm | 3.86 " | 98.04 mm | 4 | eMMC M.2 | mPCIe | 1.5 GHz | USB 2.0 (2) | Raspberry Pi CM4 ARM Cortex-A72 | HDMI | 60 °C | 0 °C | |||||||||
Seeed Technology Co., Ltd | 10 Mbps 100 Mbps 1000 Mbps | 4.33 in | 80.01 mm | 3.15 in | 109.98 mm | 2 | 2 GB | 2 GB | 1 GHz | USB 2.0 (2) USB 2.0 Mini (1) | ARM Cortex-A7 | HDMI VGA | 70 °C | -10 °C | 54 | |||||||||
 Seeed Technology Co., Ltd | 1 GB | 10 Mbps 100 Mbps | 3.94 in | 59.94 mm | 2.36 " | 100.07 mm | 2 | 1 GHz | USB 2.0 (2) USB 2.0 Mini (1) | ARM Cortex-A7 | HDMI | 96 | ||||||||||||
Seeed Technology Co., Ltd | 4 GB 32 GB | 10 Mbps 100 Mbps | 2 | 32GB microSD Card | microSD | CVBS HDMI I2C I2S RGB UART VGA | ARM Cortex-A7 | CVBS HDMI LVDS RGB VGA | Pico-ITX | |||||||||||||||
 Seeed Technology Co., Ltd | 0 GB 1 GB | RJ45 (10/100/1000) | 4.88 in | 75.94 mm | 2.99 in | 123.95 mm | 4 | eMMC M.2 | GPIO I2C I2S mPCIe PWM SDIO SPI UART | 1.5 GHz | USB 2.0 (2) | Raspberry Pi CM4 ARM Cortex-A72 | HDMI | 60 °C | -20 ░C | 2 |
