902-0147 Series
Manufacturer: ROBOTIS
Beta
⌘K

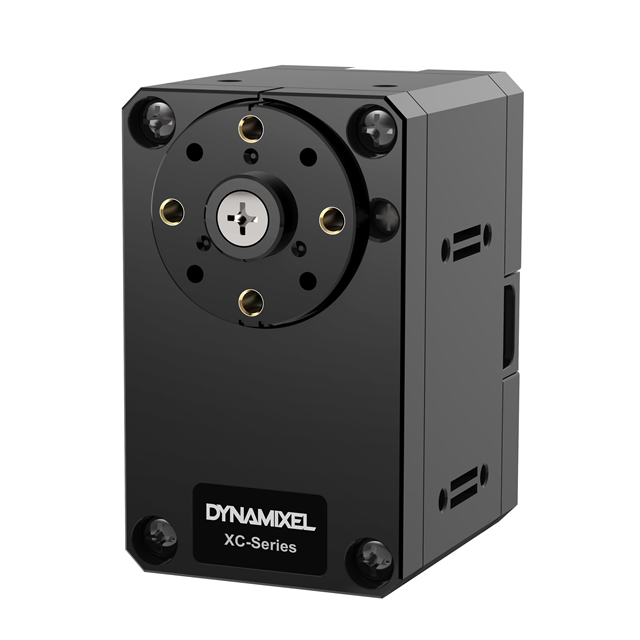

XC430-W240-T DYNAMIXEL SERVO
| Part | Weight | Weight | Voltage - Rated | Features | Gear Reduction Ratio | RPM | Encoder Type | Termination Style | Function | Type | Motor Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | 0.143 lb | 65 g | 12 VDC | Integrated Controller | 245.2 | 70 RPM | Absolute | Connector | Servomotor | DC Motor | Brushed | 1.122 in | 28.5 mm | 46.5 mm | 1.83 in | 269.1 oz-in | 1900 mNm | 80 °C | -5 °C |
