S14B-PH Series

Catalog

CONN HEADER SMD R/A 14POS 2MM

Part	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions	Style	Features	Contact Type	Insulation Color	Insulation Material	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Finish - Post	Voltage Rating	Insulation Height	Insulation Height	Contact Material	Contact Shape	Fastening Type	Number of Positions Loaded	Mounting Type	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Termination	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]

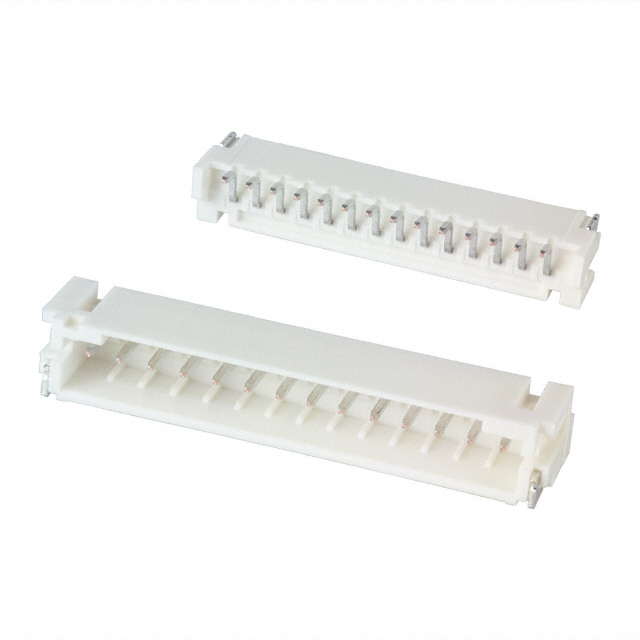

JST Sales America Inc. S14B-PH-SM4-TB	0.079 "	2 mm	1	14	Board to Cable/Wire	Solder Retention	Male Pin	Natural	Nylon 6T Polyamide (PA6T)	Header	UL94 V-0	85 °C	-25 °C	Shrouded - 4 Wall	Tin	100 V	0.217 in	5.51 mm	Copper Alloy	Square	Detent Lock	All	Right Angle Surface Mount	2 A	0.13 in	3.3 mm	Solder

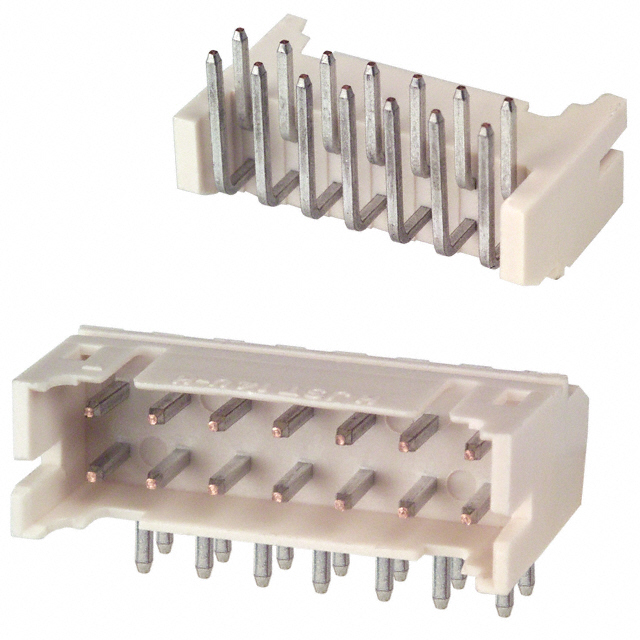

JST Sales America Inc. S14B-PHDSS	0.079 "	2 mm		14	Board to Cable/Wire		Male Pin	Natural	Glass Filled Nylon Polyamide (PA)	Header	UL94 V-0	85 °C	-25 °C	Shrouded - 4 Wall	Tin	250 V	0.197 "	5 mm	Copper Alloy	Square	Detent Lock	All	Right Angle Through Hole	3 A	0.114 in	2.9 mm	Solder	2	0.118 in	3 mm	2 mm	0.079 in

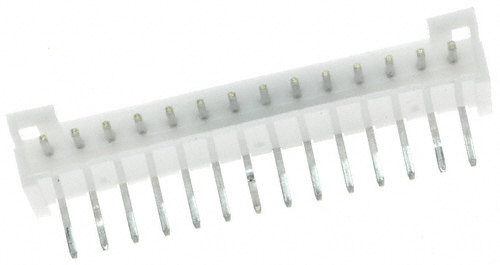

JST Sales America Inc. S14B-PH-K-S	0.079 "	2 mm	1	14	Board to Cable/Wire		Male Pin	Natural	Nylon 6/6 Polyamide (PA66)	Header	UL94 V-0	85 °C	-25 °C	Shrouded - 4 Wall	Tin	100 V	0.189 in	4.8 mm	Brass	Square	Detent Lock	All	Right Angle Through Hole	2 A	0.13 in	3.3 mm	Press-Fit Solder			3.4 mm			0.134 "
