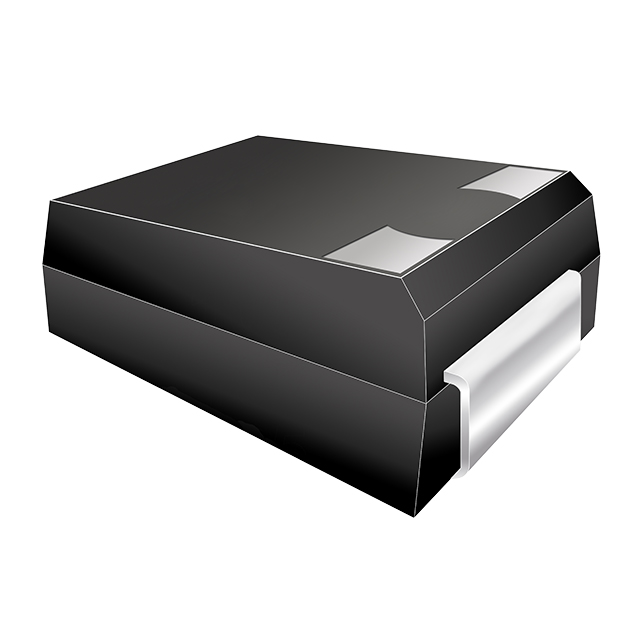

T525B Series

Manufacturer: KEMET

Catalog

CAP TANT POLYMER 47UF 6.3VDC B CASE 20%( 3.5 X 2.8 X 1.9MM) INWARD L SMD 3528-21 0.08 OHM 125°C T/R

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Package / Case	Package / Case	Voltage - Rated	Type	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.
KEMET T525B476M006ATE080	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	6.3 VDC	Molded	47 µF	0.079 in	2 mm	B	80 mOhm	General Purpose	Surface Mount	-55 C	125 °C
KEMET T525B107M004ATE080	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	4 V	Molded	100 µF	0.079 in	2 mm	B	80 mOhm	General Purpose	Surface Mount	-55 C	125 °C
KEMET T525B157M003ATE080	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	3 VDC	Molded	150 µF	0.079 in	2 mm	B	80 mOhm	General Purpose	Surface Mount	-55 C	125 °C
KEMET T525B336M010ATE080	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	10 V	Molded	33 ÁF	0.079 in	2 mm	B	80 mOhm	General Purpose	Surface Mount	-55 C	125 °C	2000 Hrs
KEMET T525B107M003ATE080	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	3 VDC	Molded	100 µF	0.079 in	2 mm	B	80 mOhm	General Purpose	Surface Mount	-55 C	125 °C
KEMET T525B336M016ATE0907280	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	16 V	Molded	33 ÁF	0.079 in	2 mm	B	90 mOhm	General Purpose	Surface Mount	-55 C	125 °C	2000 Hrs
KEMET T525B336M016ATE0707280	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	16 V	Molded	33 ÁF	0.079 in	2 mm	B	70 mOhm	General Purpose	Surface Mount	-55 C	125 °C	2000 Hrs
KEMET T525B336M006ATE080	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	3528 Metric	1411	6.3 VDC	Molded	33 ÁF	0.079 in	2 mm	B	80 mOhm	General Purpose	Surface Mount	-55 C	125 °C	2000 Hrs
