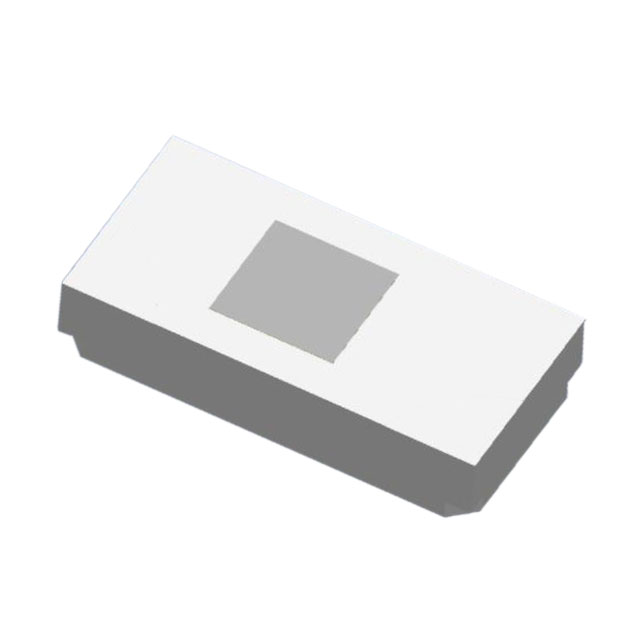

SML-LX0201 Series

Catalog

LED WHITE NEUTRAL INGAN 2SMD

Part	Package / Case	Lens Style	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Color	Voltage - Forward (Vf) (Typ)	Lens Color	Viewing Angle	Lens Size [y]	Lens Size [x]	Configuration	Current - Test	Supplier Device Package	Mounting Type	Wavelength - Peak	Lens Transparency
Lumex Opto/Components Inc. SML-LX0201NWD-TR	2-SMD No Lead	Rectangle with Flat Top	0.46 mm	0.65 mm	0.38 mm	60 mcd	White	2.8 V	Yellow	110 °	0.36 mm	0.65 mm	Independent	2 mA	2-SMD	Surface Mount
Lumex Opto/Components Inc. SML-LX0201USBC-TR	2-SMD No Lead	Rectangle with Flat Top	0.46 mm	0.65 mm	0.38 mm	15 mcd	Blue	2.6 V	Colorless	110 °	0.36 mm	0.65 mm	Independent	2 mA	2-SMD	Surface Mount	465 nm	Clear
Lumex Opto/Components Inc. SML-LX0201UPGC-TR	2-SMD No Lead	Rectangle with Flat Top	0.46 mm	0.65 mm	0.38 mm	100 mcd	Green	2.7 V	Colorless	110 °	0.36 mm	0.65 mm	Independent	2 mA	2-SMD	Surface Mount	520 nm	Clear
