MP3398 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
LED DRVR BOOST 4-CH ANALOG/PWM 0.35A T/R
| Part | Number of Outputs | Current - Output / Channel | Package / Case | Topology | Applications | Supplier Device Package | Type | Frequency | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Dimming | Voltage - Supply (Max) [Max] | Internal Switch(s) | Voltage - Supply (Min) [Min] | Supplied Contents | Outputs and Type | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Features | Contents | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 4 | 350 mA | 16-TSSOP (0.173" 4.40mm Width) Exposed Pad | Step-Up (Boost) | Backlight | 16-TSSOP-EP | DC DC Controller | 540 kHz | Surface Mount | -40 C | 125 °C | Analog PWM | 28 V | 5 V | |||||||||

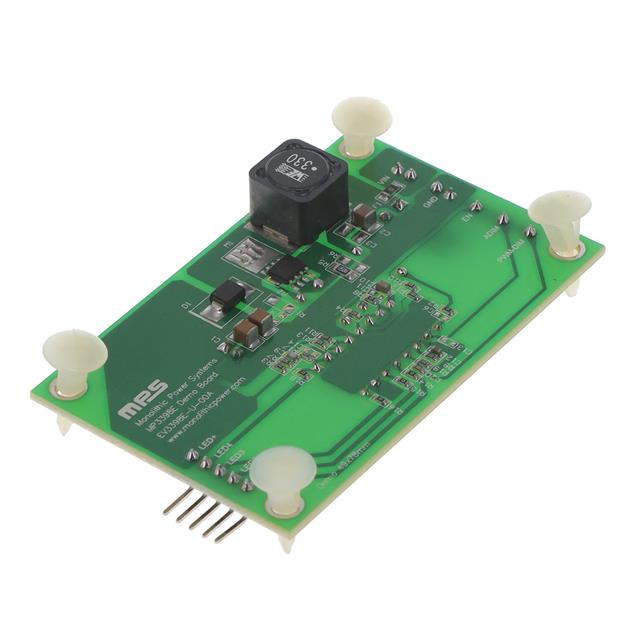

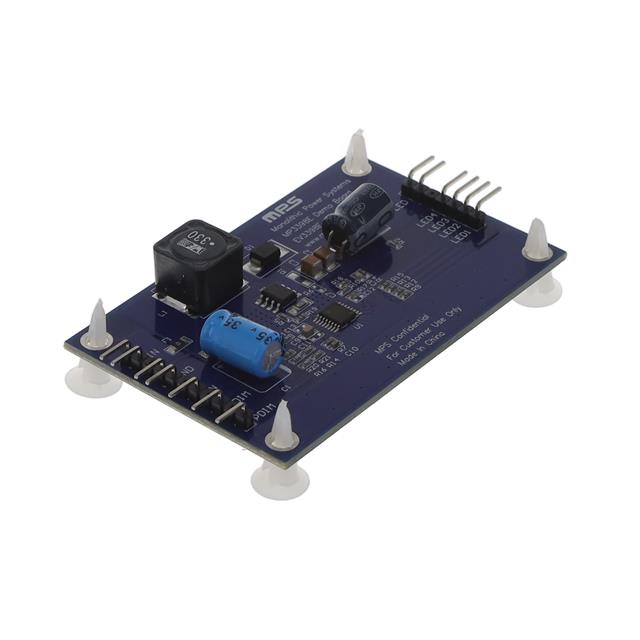

 Monolithic Power Systems Inc. | 120 mA | Board(s) | 4 Non-Isolated Outputs | MP3398E | 13 V | 33 V | Dimmable | Board(s) | |||||||||||||||
 Monolithic Power Systems Inc. | 4 | 350 mA | 16-SOIC | Step-Up (Boost) | Backlight | 16-SOIC | DC DC Controller | 540 kHz | Surface Mount | -40 C | 125 °C | Analog PWM | 28 V | 5 V | 0.154 in 3.9 mm | ||||||||
Monolithic Power Systems Inc. | 4 | 350 mA | 16-TSSOP (0.173" 4.40mm Width) Exposed Pad | Step-Up (Boost) | Backlight | 16-TSSOP-EP | DC DC Controller | 540 kHz | Surface Mount | -40 C | 125 °C | Analog PWM | 28 V | 5 V | |||||||||
Monolithic Power Systems Inc. | 4 | 350 mA | 16-SOIC | Step-Up (Boost) | Backlight | 16-SOIC | DC DC Controller | 540 kHz | Surface Mount | -40 C | 125 °C | Analog PWM | 28 V | 4.5 V | 0.154 in 3.9 mm | ||||||||
Monolithic Power Systems Inc. | 4 | 350 mA | 16-SOIC | Step-Up (Boost) | Backlight | 16-SOIC | DC DC Controller | 540 kHz | Surface Mount | -40 C | 125 °C | Analog PWM | 28 V | 4.5 V | 0.154 in 3.9 mm | ||||||||
Monolithic Power Systems Inc. | 4 | 350 mA | 16-SOIC | Step-Up (Boost) | Backlight | 16-SOIC | DC DC Controller | 540 kHz | Surface Mount | -40 C | 125 °C | Analog PWM | 28 V | 5 V | 0.154 in 3.9 mm | ||||||||
Monolithic Power Systems Inc. | 16-TSSOP (0.173" 4.40mm Width) Exposed Pad | 16-TSSOP-EP | Surface Mount | ||||||||||||||||||||
 Monolithic Power Systems Inc. | 120 mA | Board(s) | 4 Non-Isolated Outputs | MP3398E | 13 V | 33 V | Dimmable | Board(s) | |||||||||||||||
Monolithic Power Systems Inc. | 4 | 350 mA | 16-TSSOP (0.173" 4.40mm Width) Exposed Pad | Step-Up (Boost) | Backlight | 16-TSSOP-EP | DC DC Controller | 540 kHz | Surface Mount | -40 C | 125 °C | Analog PWM | 28 V | 5 V |
