LM2593HV Series

SIMPLE SWITCHER Power Converter 150 KHz 2A Step-Down Voltage Regulator with Features

Catalog

SIMPLE SWITCHER Power Converter 150 KHz 2A Step-Down Voltage Regulator with Features

Part	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Regulator Topology	Voltage - Output	Utilized IC / Part	Board Type	Current - Output	Main Purpose	Outputs and Type	Outputs and Type	Output Type	Number of Outputs	Function	Package / Case	Output Configuration	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Input (Min) [Min]	Topology	Voltage - Output (Min/Fixed)	Supplier Device Package	Output Type	Voltage - Output (Max)

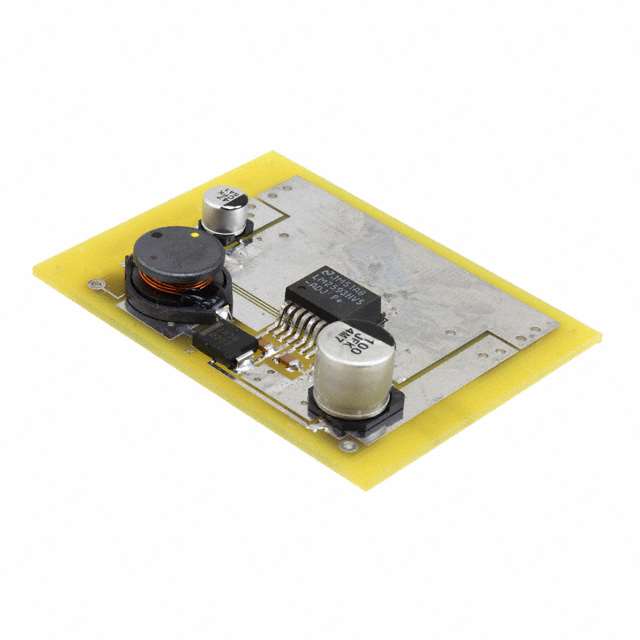

Texas Instruments LM2593HVEVAL	60 V	4.5 V	Board(s)	Buck	12 V	LM2593	Fully Populated	2 A	DC/DC Step Down	Non-Isolated	1
Texas Instruments LM2593HVS-3.3								2 A				1.81 mOhm	1	Step-Down	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Positive	60 V	-40 °C	125 ¯C	Surface Mount	4.5 V	Buck	3.3 V	TO-263 (DDPAK-7)
Texas Instruments LM2593HVS-ADJ/NOPB								2 A					1	Step-Down	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Positive	60 V	-40 °C	125 ¯C	Surface Mount	4.5 V	Buck	1.2 V	TO-263 (DDPAK-7)	Adjustable	57 V
Texas Instruments LM2593HVT-ADJ								2 A					1	Step-Down	TO-220-7 Formed Leads	Positive	60 V	-40 °C	125 ¯C	Through Hole	4.5 V	Buck	1.2 V	TO-220-7	Adjustable	57 V
Texas Instruments LM2593HVS-3.3/NOPB								2 A				1.81 mOhm	1	Step-Down	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Positive	60 V	-40 °C	125 ¯C	Surface Mount	4.5 V	Buck	3.3 V	TO-263 (DDPAK-7)
Texas Instruments LM2593HVSX-5.0/NOPB								2 A				1.81 mOhm	1	Step-Down	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Positive	60 V	-40 °C	125 ¯C	Surface Mount	4.5 V	Buck	5 V	TO-263 (DDPAK-7)
Texas Instruments LM2593HVT-5.0								2 A				1.81 mOhm	1	Step-Down	TO-220-7 Formed Leads	Positive	60 V	-40 °C	125 ¯C	Through Hole	4.5 V	Buck	5 V	TO-220-7
Texas Instruments LM2593HVSX-3.3								2 A				1.81 mOhm	1	Step-Down	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Positive	60 V	-40 °C	125 ¯C	Surface Mount	4.5 V	Buck	3.3 V	TO-263 (DDPAK-7)
Texas Instruments LM2593HVSX-3.3/NOPB								2 A				1.81 mOhm	1	Step-Down	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Positive	60 V	-40 °C	125 ¯C	Surface Mount	4.5 V	Buck	3.3 V	TO-263 (DDPAK-7)
Texas Instruments LM2593HVSX-ADJ/NOPB								2 A					1	Step-Down	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	Positive	60 V	-40 °C	125 ¯C	Surface Mount	4.5 V	Buck	1.2 V	TO-263 (DDPAK-7)	Adjustable	57 V

Catalog

SIMPLE SWITCHER Power Converter 150 KHz 2A Step-Down Voltage Regulator with Features

Key Features

• 3.3-V, 5-V, and Adjustable Output VersionsAdjustable Version Output Voltage Range: 1.2 Vto 57 V ±4% Maximum Over Line and LoadConditionsEnsured 2-A Output Load CurrentAvailable in 7-Pin TO-220 and TO-263 (Surface-Mount) PackageInput Voltage Range up to 60 V150-kHz Fixed Frequency Internal OscillatorShutdown and Soft-StartOut-of-Regulation Error FlagError Flag DelayLow Power Standby Mode: IQ, Typically 90 µAHigh EfficiencyThermal Shutdown and Current-Limit Protection3.3-V, 5-V, and Adjustable Output VersionsAdjustable Version Output Voltage Range: 1.2 Vto 57 V ±4% Maximum Over Line and LoadConditionsEnsured 2-A Output Load CurrentAvailable in 7-Pin TO-220 and TO-263 (Surface-Mount) PackageInput Voltage Range up to 60 V150-kHz Fixed Frequency Internal OscillatorShutdown and Soft-StartOut-of-Regulation Error FlagError Flag DelayLow Power Standby Mode: IQ, Typically 90 µAHigh EfficiencyThermal Shutdown and Current-Limit Protection

Description

The LM2593HV series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 2-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3-V, 5-V, and an adjustable output version. This series of switching regulators is similar to the LM2592HV with additional supervisory and performance features. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, improved line and load specifications, fixed-frequency oscillator,Shutdown/Soft-start, output error flag, and flag delay. The LM2593HV operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 7-pin TO-220 package with several different lead bend options, and a 7-pin TO-263 surface-mount package. Other features include a specified ±4% tolerance on output voltage under all conditions of input voltage and output load conditions, and ±15% on the oscillator frequency. External shutdown is included, featuring typically 90-µA standby current. Self-protection features include a two stage current limit for the output switch and an overtemperature shutdown for complete protection under fault conditions. The LM2593HV series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 2-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3-V, 5-V, and an adjustable output version. This series of switching regulators is similar to the LM2592HV with additional supervisory and performance features. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, improved line and load specifications, fixed-frequency oscillator,Shutdown/Soft-start, output error flag, and flag delay. The LM2593HV operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 7-pin TO-220 package with several different lead bend options, and a 7-pin TO-263 surface-mount package. Other features include a specified ±4% tolerance on output voltage under all conditions of input voltage and output load conditions, and ±15% on the oscillator frequency. External shutdown is included, featuring typically 90-µA standby current. Self-protection features include a two stage current limit for the output switch and an overtemperature shutdown for complete protection under fault conditions.
