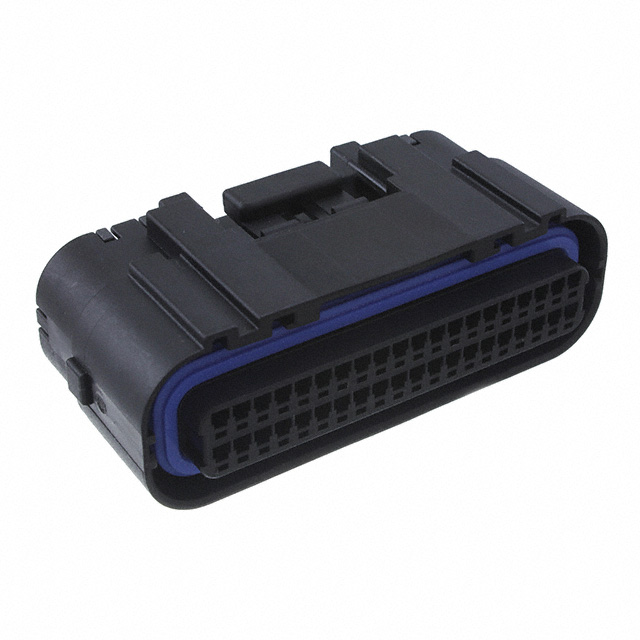

MX23A Series

Catalog

CONN RCPT HSG 40POS 2.50MM

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Features	Fastening Type	Connector Type	Contact Type	Number of Positions	Color	Insulation Material	Row Spacing	Row Spacing	Number of Rows [custom]	Contact Termination	Mounting Type	Number of Positions [custom]
JAE Electronics MX23A40SF1	Contacts Not Included	125 °C	-40 C	2.5 mm	0.098 in	Waterproof	Latch Lock	Receptacle	Female Socket	40	Black	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm	3	Crimp	Free Hanging (In-Line)
JAE Electronics MX23A34SF1	Contacts Not Included	125 °C	-40 C	2.5 mm	0.098 in	Waterproof	Latch Lock	Receptacle	Female Socket		Black	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm	2	Crimp	Free Hanging (In-Line)	34
JAE Electronics MX23A36SF2	Contacts Not Included	125 °C	-40 C	2.5 mm	0.098 in	Waterproof	Latch Lock	Receptacle	Female Socket	36	Black	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm	3	Crimp	Free Hanging (In-Line)

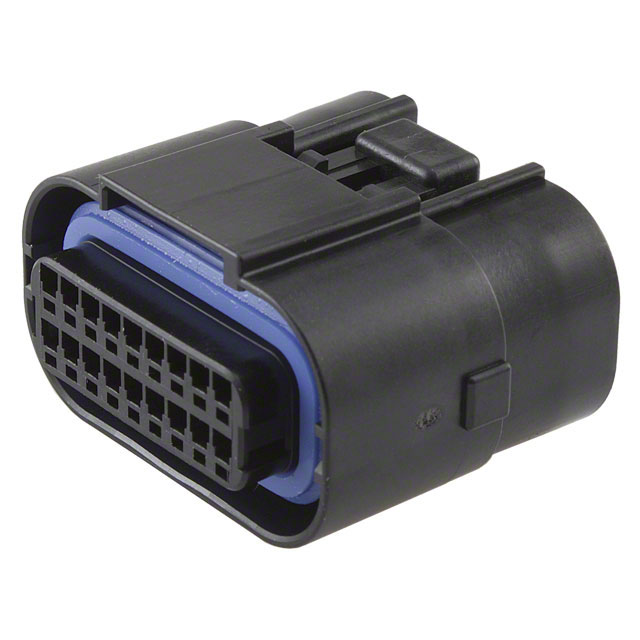

JAE Electronics MX23A18SF1	Contacts Not Included	125 °C	-40 C	2.5 mm	0.098 in	Waterproof	Latch Lock	Receptacle	Female Socket	18	Black	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm	2	Crimp	Free Hanging (In-Line)
JAE Electronics MX23A26UF1	Contacts Not Included	125 °C	-40 C									Polybutylene Terephthalate (PBT) Glass Filled

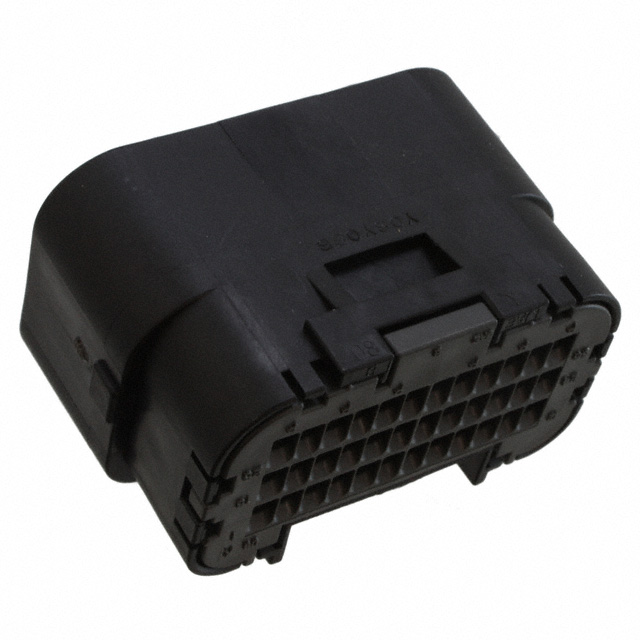

JAE Electronics MX23A36SF1	Contacts Not Included	125 °C	-40 C	2.5 mm	0.098 in	Waterproof	Latch Lock	Receptacle	Female Socket	36	Black	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm	3	Crimp	Free Hanging (In-Line)
JAE Electronics MX23A18SFG	Contacts Not Included	125 °C	-40 C									Polybutylene Terephthalate (PBT) Glass Filled

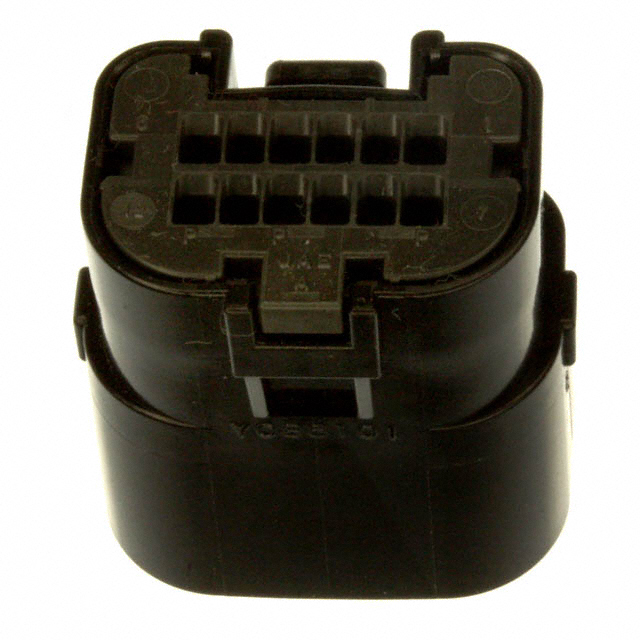

JAE Electronics MX23A12SF1	Contacts Not Included	125 °C	-40 C	2.5 mm	0.098 in	Waterproof	Latch Lock	Receptacle	Female Socket	12	Black	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm	2	Crimp	Free Hanging (In-Line)

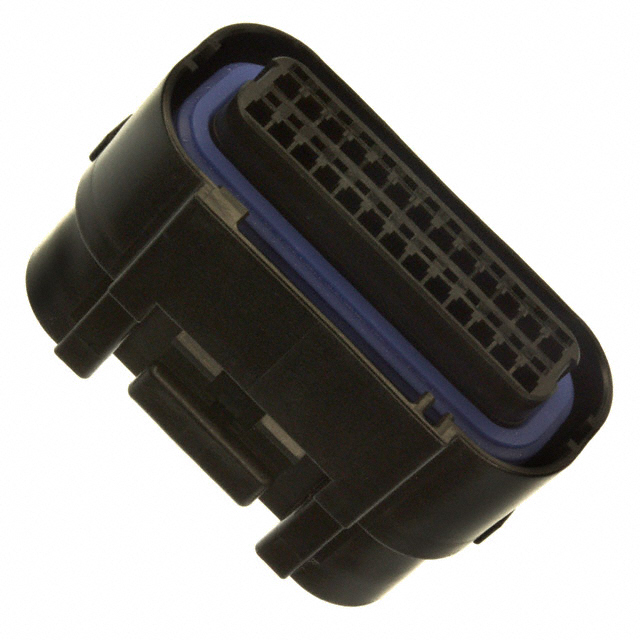

JAE Electronics MX23A26SF1	Contacts Not Included	125 °C	-40 C	2.5 mm	0.098 in	Waterproof	Latch Lock	Receptacle	Female Socket	26	Black	Polybutylene Terephthalate (PBT) Glass Filled	0.173 in	4.4 mm	2	Crimp	Free Hanging (In-Line)
JAE Electronics MX23A18SF3	Contacts Not Included	125 °C	-40 C									Polybutylene Terephthalate (PBT) Glass Filled
