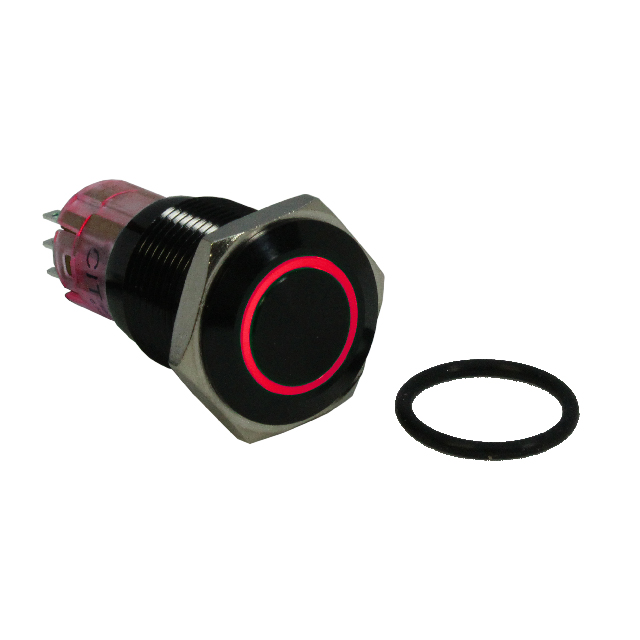

CH1LBB Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB SPDT 1A 125V
| Part | Electrical Life | Voltage Rating - AC | Termination Style | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Circuit | Actuator Marking | Panel Cutout Dimensions [diameter] | Type | Current Rating (Amps) | Actuator Type | Illumination Type, Color | Ingress Protection | Color - Actuator/Cap | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 30000 Cycles | 125 V | Solder Lug | 24 V | -25 °C | 70 °C | Panel Mount Front | SPDT | No Marking | 16 mm | Anti-Vandal Illuminated | 1 A | Button Flush Round | LED Red | IP67 - Dust Tight Waterproof | Black | On-On |
