TXB2P Series

Catalog

THERMAL LINK PRESSON BLK TO-5

Part	Material Finish	Thermal Resistance @ Natural	Attachment Method	Diameter [diameter]	Diameter [diameter]	Material	Type	Package Cooled	Shape	Width [x]	Width [x]	Length	Length	Width [y]	Width

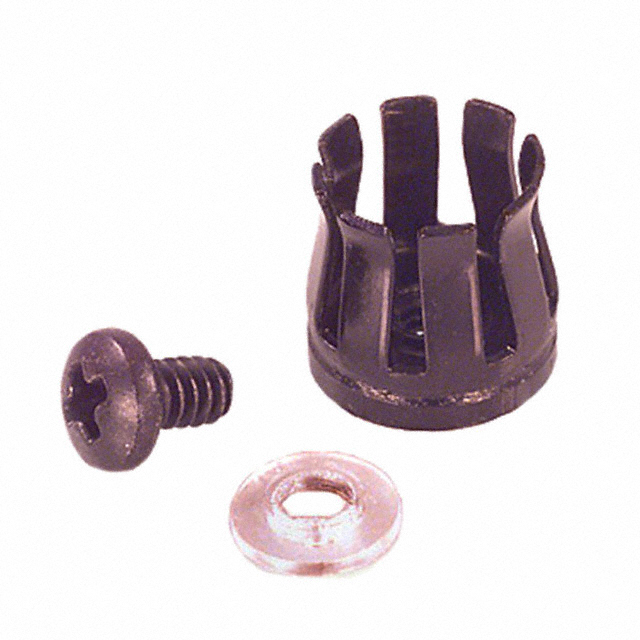

CTS Thermal Management Products TXB2P032037B	Black Cadmium	82 °C/W	Bolt On Press Fit	0.38 in	9.65 mm	Brass	Top Mount	TO-5	Cylindrical	0.38 in	9.65 mm	0.37 in	9.4 mm
CTS Thermal Management Products TXB2P050037ND	Dull Nickel		Bolt On	0.55 in	13.97 mm	Aluminum	Top Mount	TO-8S	Cylindrical	0.55 in	13.97 mm

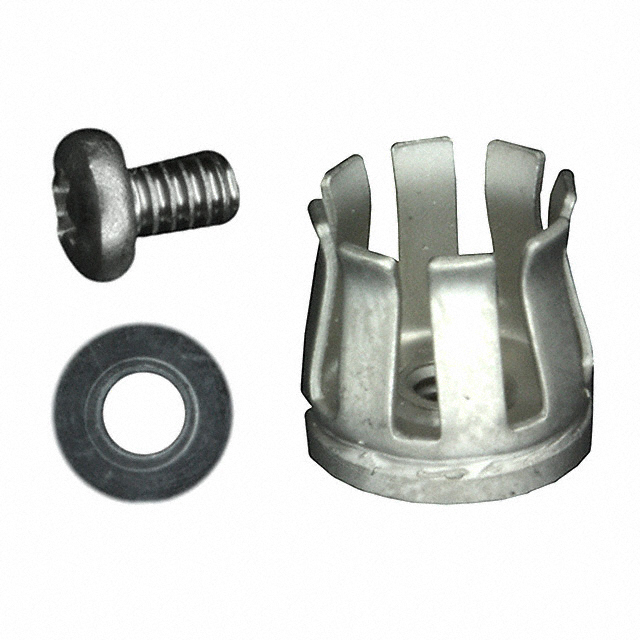

CTS Thermal Management Products TXB2P-032-037ND	Dull Nickel	82 °C/W	Bolt On Press Fit	0.38 in	9.65 mm	Brass	Top Mount	TO-5	Cylindrical	0.38 in	9.65 mm	0.37 in	9.4 mm
CTS Thermal Management Products TXB2P045037B	Black Cadmium		Bolt On	0.55 in	13.97 mm	Aluminum	Top Mount	TO-8S	Cylindrical	0.55 in	13.97 mm

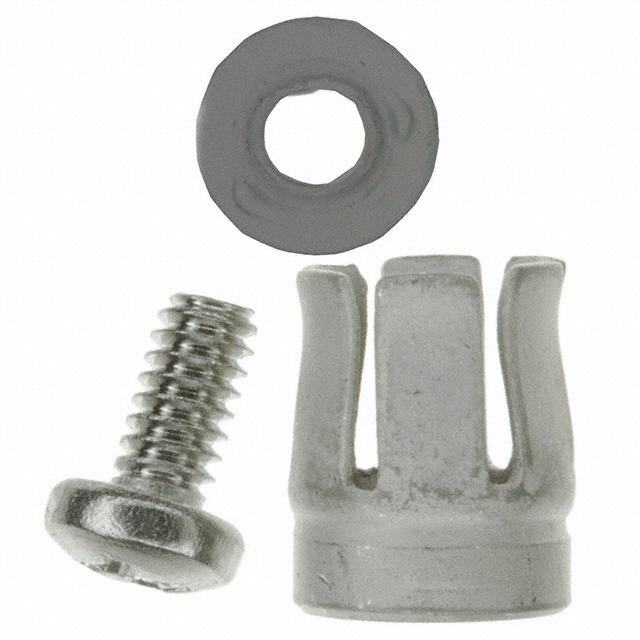

CTS Thermal Management Products TXB2P019028ND	Dull Nickel	108 °C/W	Bolt On Press Fit	0.22 in	5.59 mm	Brass	Top Mount	TO-18	Cylindrical			0.28 in	7.11 mm	0.22 in	5.59 mm
CTS Thermal Management Products TXB2P050037B	Black Cadmium		Bolt On	0.55 in	13.97 mm	Aluminum	Top Mount	TO-8S	Cylindrical	0.55 in	13.97 mm

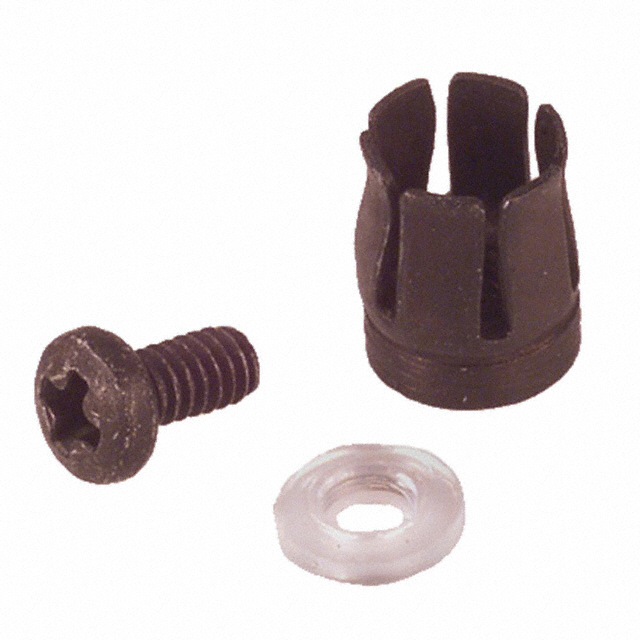

CTS Thermal Management Products TXB2P019028B	Black Cadmium	108 °C/W	Bolt On Press Fit	0.22 in	5.59 mm	Brass	Top Mount	TO-18	Cylindrical			0.28 in	7.11 mm	0.22 in	5.59 mm
