PPPC031 Series

Catalog

CONN HDR 3POS 0.1 GOLD PCB R/A

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Current Rating (Amps)	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Rows	Fastening Type	Contact Type	Connector Type	Voltage Rating	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]

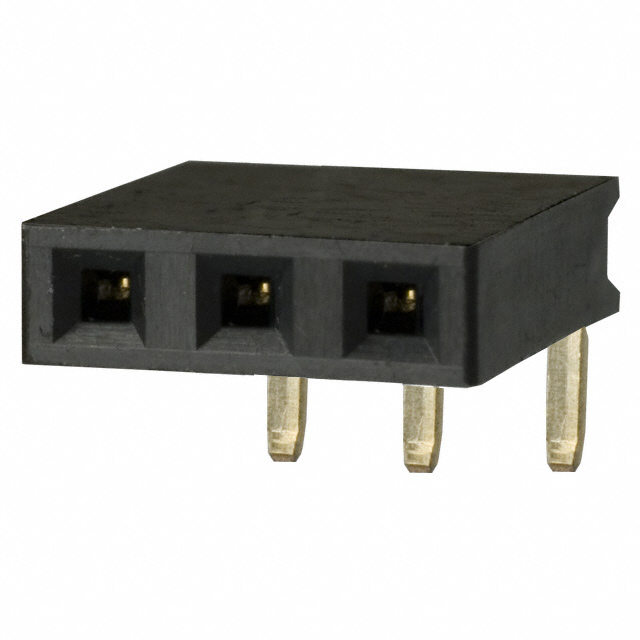

Sullins Connector Solutions PPPC031LGBN	Phosphor Bronze	Polyester	Square	Flash	3 A	Solder	0.1 "	2.54 mm	UL94 V-0	0.124 in	3.15 mm	Flash	Right Angle Through Hole	-40 C	105 ░C	0.1 in	2.54 mm	All	1	Push-Pull	Female Socket	Header	250 V	Gold	Black	Gold

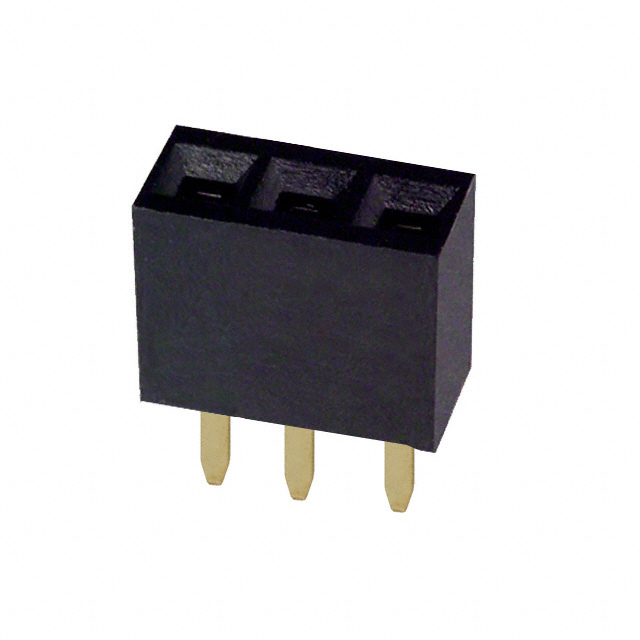

Sullins Connector Solutions PPPC031LFBN-RC	Phosphor Bronze	Polyester	Square	Flash	3 A	Solder	0.1 "	2.54 mm	UL94 V-0			Flash	Through Hole	-40 C	105 ░C	0.335 "	8.51 mm	All	1	Push-Pull	Female Socket	Header	250 V	Gold	Black	Gold	0.126 "	3.2 mm
