3105-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

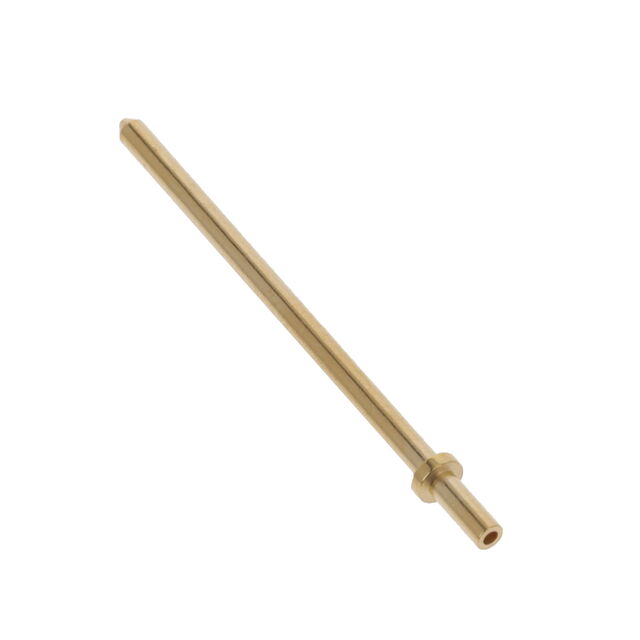

CONN PC PIN CIRC .040DIA GOLD
| Part | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness [custom] | Board Thickness [custom] | Terminal Style | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.883 in | 22.43 mm | Brass Alloy | 0.25 Ám | 10 Áin | 0.043 in | 1.09 mm | Non-Insulated | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | Single End | PC Pin | 0.75 in | 19.05 mm | Swage | Through Hole | 1.77 mm | 0.07 in | 2.87 mm | 0.113 " | Gold |
