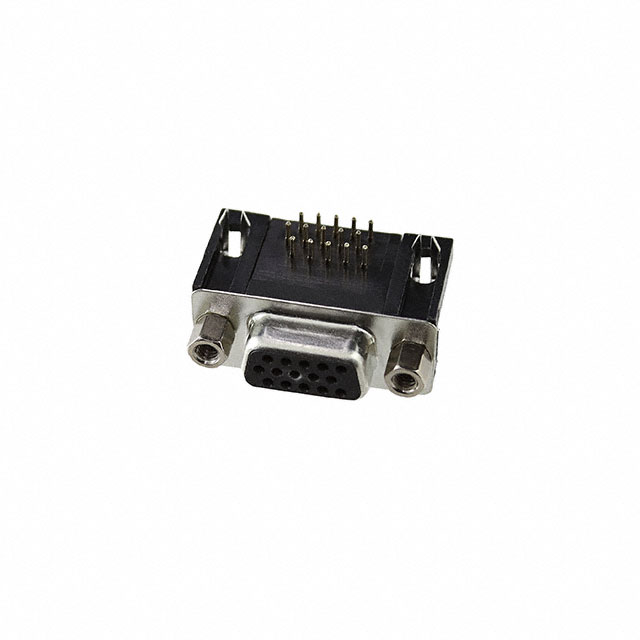

HDL15-SL Series
Manufacturer: Adam Tech
Beta
⌘K
CONN D-SUB HD RCPT 15POS SMD R/A
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Color | Number of Positions | Contact Finish | Termination | Flange Feature | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Current Rating (Amps) | Features | Connector Type | Material Flammability Rating | Backset Spacing | Backset Spacing | Mounting Type | Number of Rows [custom] | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Copper Alloy | -55 C | 105 ░C | Thermoplastic | 300 VAC | Black | 15 | Gold | Solder | Housing/Shell | 4-40 | Nickel Plated Steel | Flash | 5 A | Board Lock | Receptacle Female Sockets | UL94 V-0 | 10.8 mm | 0.425 in | Right Angle Surface Mount | 3 | D-Sub High Density | (DE E) High Density | 1 |
 Adam Tech | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 250 VAC | Black | 15 | Gold | Solder | 4-40 Mating Side Female Screwlock | Steel | Flash | Board Lock | Receptacle Female Sockets | UL94 V-0 | 8.89 mm | 0.35 in | Right Angle Through Hole | 3 | D-Sub High Density | (DE E) High Density | 1 |
