PKU410 Series

Catalog

DC DC CONVERTER 6V 96W

Part	Standard Number	Voltage - Isolation	Mounting Type	Package / Case	Approval Agency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [custom]	Voltage - Input (Min) [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Number of Outputs	Control Features	Type	Features	Current - Output (Max) [Max]	Supplier Device Package	Efficiency	Voltage - Output 1
Flex Power Modules PKU4107CPI	62368-1	1.5 kV	Through Hole	Sixteenth Brick	CB CSA IEC TUV UL	75 V	105 C	-40 °C	6 V	36 V	96 W	0.33 in	22.9 mm	33 mm	8.5 mm	0.9 in	1.3 in	ITE (Commercial)	1	Active Low Enable	Isolated Module	Remote On/Off	16 A	Sixteenth Brick	93.5 %
Flex Power Modules PKU4105CPI	62368-1	1.5 kV	Through Hole	Sixteenth Brick	CB CSA IEC TUV UL	75 V	125 °C	-40 °C		36 V	100 W	0.33 in	22.9 mm	33 mm	8.5 mm	0.9 in	1.3 in	ITE (Commercial)	1	Active Low Enable	Isolated Module	Remote On/Off	20 A	Sixteenth Brick	93.6 %	5 V
Flex Power Modules PKU4106CPI	62368-1	1.5 kV	Through Hole	Sixteenth Brick	CB CSA IEC TUV UL	75 V	125 °C	-40 °C		45 V	99 W	0.33 in	22.9 mm	33 mm	8.5 mm	0.9 in	1.3 in	ITE (Commercial)	1	Active Low Enable	Isolated Module	Remote On/Off	18 A	Sixteenth Brick	93.7 %	5.5 V
Flex Power Modules PKU4106CSI	62368-1	1.5 kV	Surface Mount	Sixteenth Brick	CB CSA IEC TUV UL	75 V	125 °C	-40 °C		45 V	99 W	0.33 in	22.9 mm	33 mm	8.5 mm	0.9 in	1.3 in	ITE (Commercial)	1	Active Low Enable	Isolated Module	Remote On/Off	18 A	Sixteenth Brick	93.7 %	5.5 V

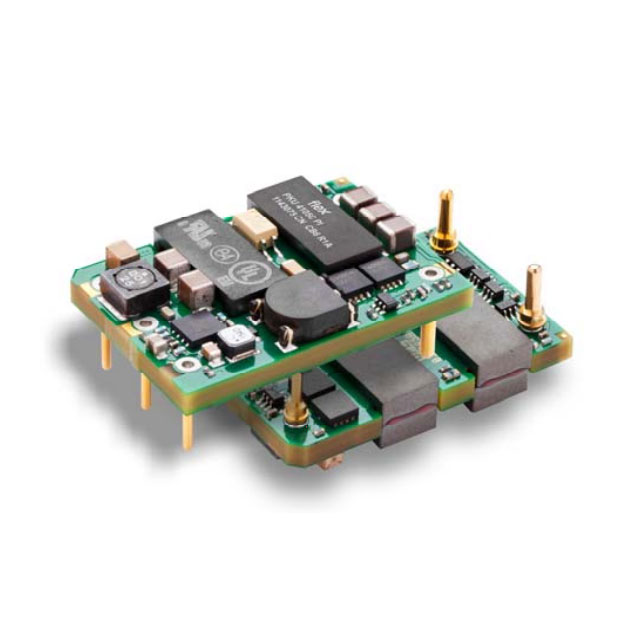

Flex Power Modules PKU4105CSI	62368-1	1.5 kV	Surface Mount	Sixteenth Brick	CB CSA IEC TUV UL	75 V	125 °C	-40 °C		36 V	100 W	0.33 in	22.9 mm	33 mm	8.5 mm	0.9 in	1.3 in	ITE (Commercial)	1	Active Low Enable	Isolated Module	Remote On/Off	20 A	Sixteenth Brick	93.6 %	5 V
Flex Power Modules PKU4104CPI	62368-1	1.5 kV	Through Hole	Sixteenth Brick	CB CSA IEC TUV UL	75 V	125 °C	-40 °C		36 V	100 W	0.33 in	22.9 mm	33 mm	8.5 mm	0.9 in	1.3 in	ITE (Commercial)	1	Active Low Enable	Isolated Module	Remote On/Off	8.3 A	Sixteenth Brick		12 V
Flex Power Modules PKU4104CSI	62368-1	1.5 kV	Surface Mount	Sixteenth Brick	CB CSA IEC TUV UL	75 V	125 °C	-40 °C		36 V	100 W	0.33 in	22.9 mm	33 mm	8.5 mm	0.9 in	1.3 in	ITE (Commercial)	1	Active Low Enable	Isolated Module	Remote On/Off	8.3 A	Sixteenth Brick		12 V
