BLF8 Series

Catalog

RF MOSFET LDMOS 28V CDFM6

Part	Current - Test	Voltage - Test	Package / Case	Gain	Power - Output	Mounting Type	Voltage - Rated	Supplier Device Package	Frequency [Max]	Frequency [Min]	Configuration	Frequency

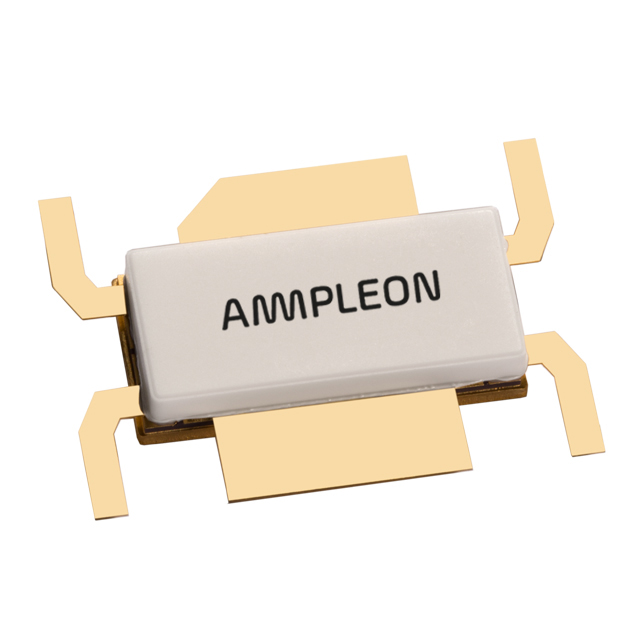

Ampleon USA Inc. BLF8G20LS-230VJ	1.8 A	28 V	SOT-1239B	18 dBi	55 W	Chassis Mount	65 V	CDFM6	1.88 GHz	1.81 GHz

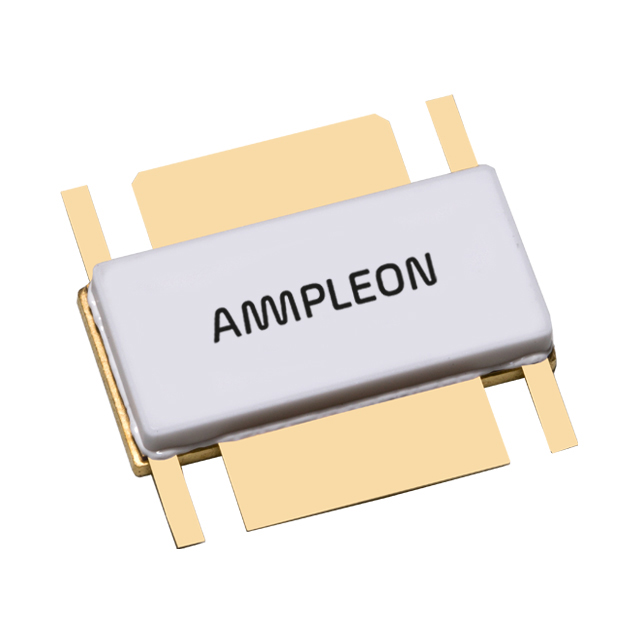

Ampleon USA Inc. BLF8G10LS-270V,112	2 A	28 V	SOT-1244B	19.5 dB	67 W	Chassis Mount	65 V	CDFM6	891.5 MHz	871.5 MHz

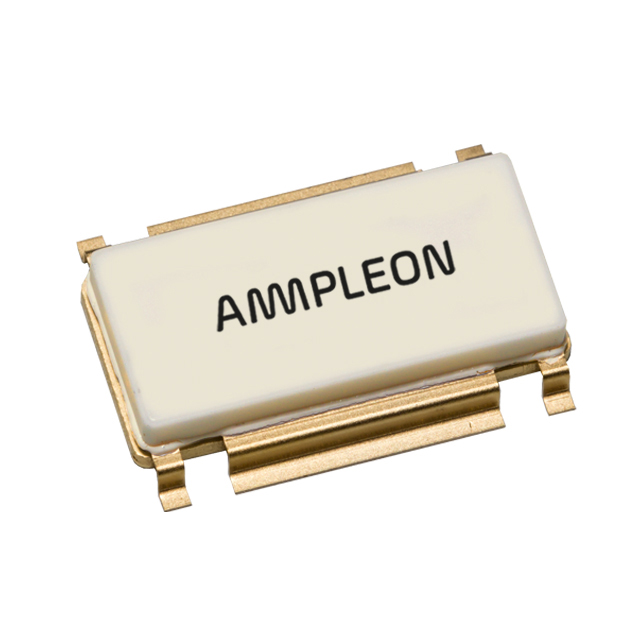

Ampleon USA Inc. BLF8G22LS-270GV,12	2.4 A	28 V	SOT-1244C	17.3 dB	80 W	Chassis Mount	65 V	CDFM6	2.17 GHz	2.11 GHz
Ampleon USA Inc. BLF8G19LS-170BVU	1.3 A	32 V	SOT-1120B	18 dBi	60 W	Chassis Mount	65 V	LDMOST	1.99 GHz	1.94 GHz	Common Source Dual
Ampleon USA Inc. BLF8G27LS-100V,118	900 mA	28 V	SOT-1244B	17 dBi	25 W	Chassis Mount	65 V	CDFM6	2700 MHz	2.5 GHz
Ampleon USA Inc. BLF8G27LS-100V,112	900 mA	28 V	SOT-1244B	17 dBi	25 W	Chassis Mount	65 V	CDFM6	2700 MHz	2.5 GHz
Ampleon USA Inc. BLF8G22LS-140J	900 mA	28 V	SOT-502B	18.5 dBi	33 W	Chassis Mount	65 V	SOT502B				2.11 GHz
Ampleon USA Inc. BLF8G24LS-150GVJ	1.3 A	28 V	SOT-1244C	19 dB	45 W	Chassis Mount	65 V	CDFM6
Ampleon USA Inc. BLF8G27LS-150GVQ	1.3 A	28 V	SOT-1244C	18 dBi	45 W	Chassis Mount	65 V	CDFM6	2700 MHz	2.6 GHz

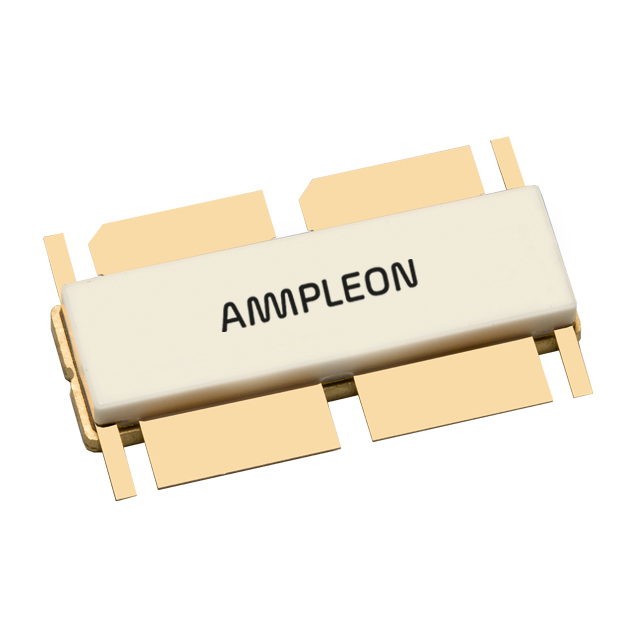

Ampleon USA Inc. BLF8G09LS-400PWJ	3.4 A	28 V	SOT-1242B	20.6 dB	95 W	Chassis Mount	65 V	CDFM8	725.5 MHz	718.5 MHz	Common Source Dual
