046114 Series

Manufacturer: Molex

Catalog

CONN RCPT LPHPOWER 18POS PCB

Part	Material Flammability Rating	Mounting Type	Color	Voltage Rating	Connector Type	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish	Termination	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]

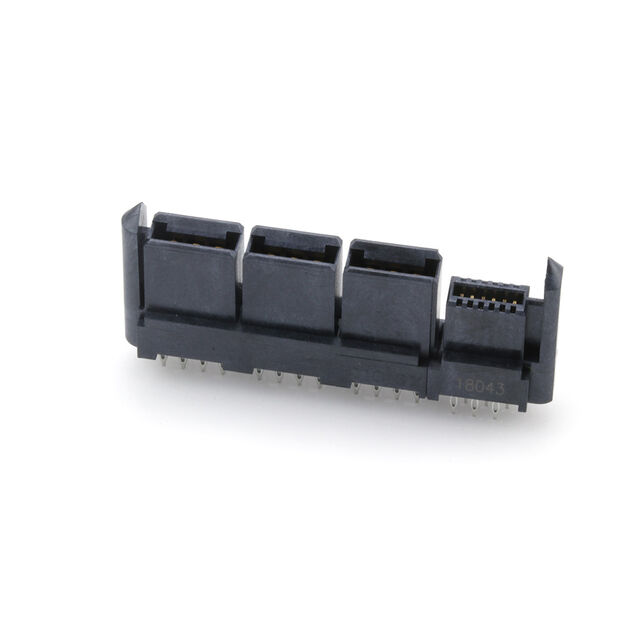

Molex 0461146120	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2	Guide Pin	LPHPower	-40 °C	105 ░C	18	Gold	Press-Fit	6	12
Molex 0461141220	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2	Guide Pin	LPHPower	-40 °C	105 ░C		Gold	Press-Fit	12	20
Molex 0461142360	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2	Guide Pin	LPHPower	-40 °C	105 ░C	38	Gold	Press-Fit	2	36
Molex 0461141025	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2		LPHPower	-40 °C	105 ░C	34	Gold	Press-Fit	10	24
Molex 0461141012	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2	Guide Pin	LPHPower	-40 °C	105 ░C	22 positions	Gold	Press-Fit	10	12
Molex 0461141036	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2	Guide Pin	LPHPower	-40 °C	105 ░C	46	Gold	Press-Fit	10	36
Molex 0461142401	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2		LPHPower	-40 °C	105 ░C	42	Gold	Press-Fit	2	40
Molex 0461146320	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2	Guide Pin	LPHPower	-40 °C	105 ░C	38	Gold	Press-Fit	6	32

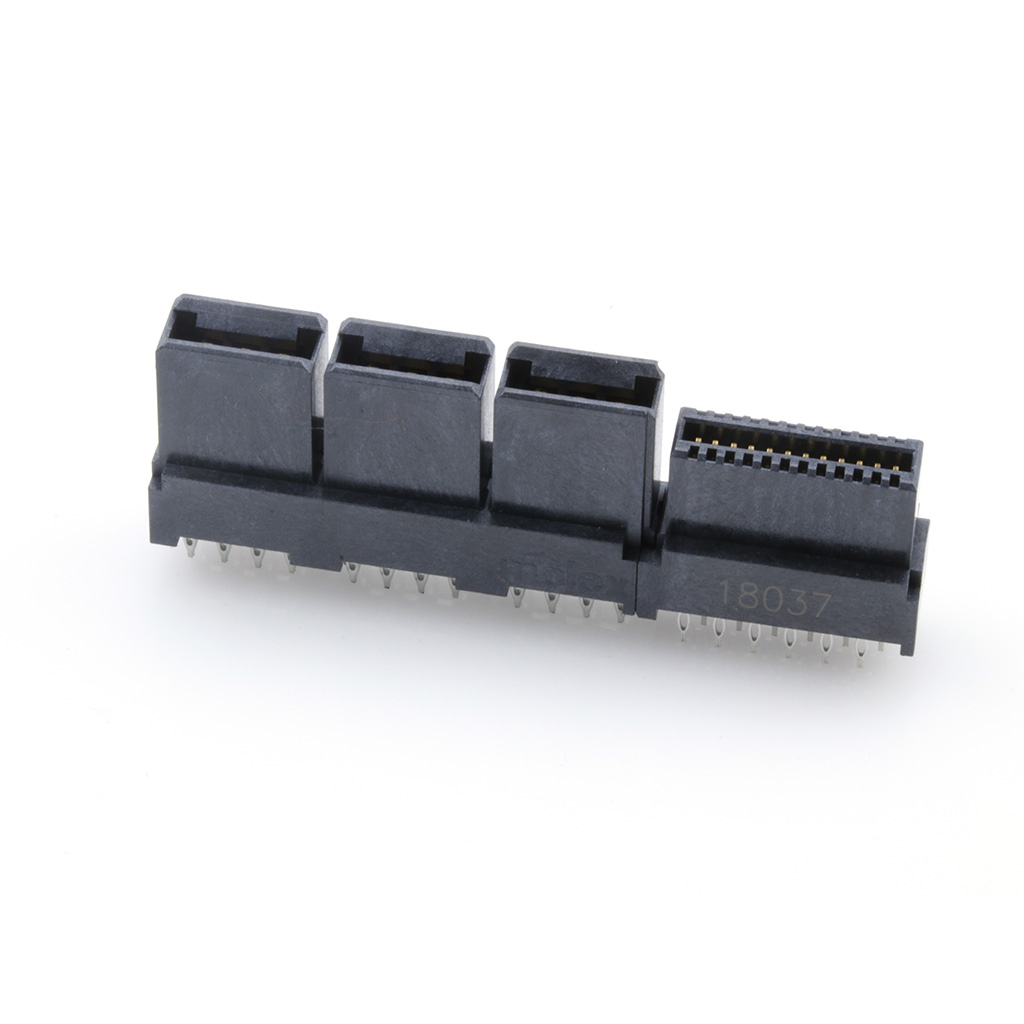

Molex 0461146241	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2		LPHPower	-40 °C	105 ░C	30	Gold	Press-Fit	6	24
Molex 0461144400	UL94 V-0	Through Hole	Black	250 VDC	Receptacle Outer Shroud Contacts	All	0.76 Ám	30 Áin	2	Guide Pin	LPHPower	-40 °C	105 ░C	44	Gold	Press-Fit	4	40
