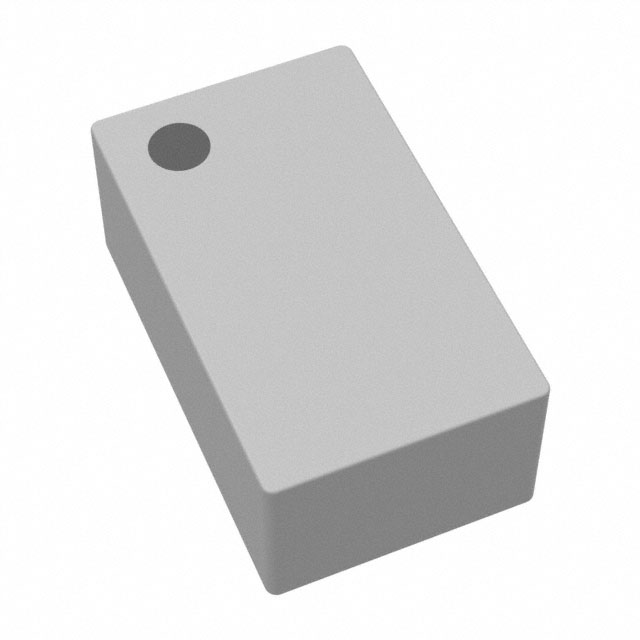

HTEH20121 Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
FIXED IND 470NH 4.6A 25MOHM SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Inductance Frequency - Test | Shielding | Material - Core | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | DC Resistance (DCR) [Max] | Package / Case | Current - Saturation (Isat) | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 0.039 in | 1 mm | 470 nH | 1 MHz | Shielded | Metal | Surface Mount | 4.6 A | -55 C | 125 °C | 0805 | 25 mOhm | 0805 | 4.6 A | 20 % | 0.079 in | 0.047 in | 1.2 mm | 2 mm |
