EEU-EE Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

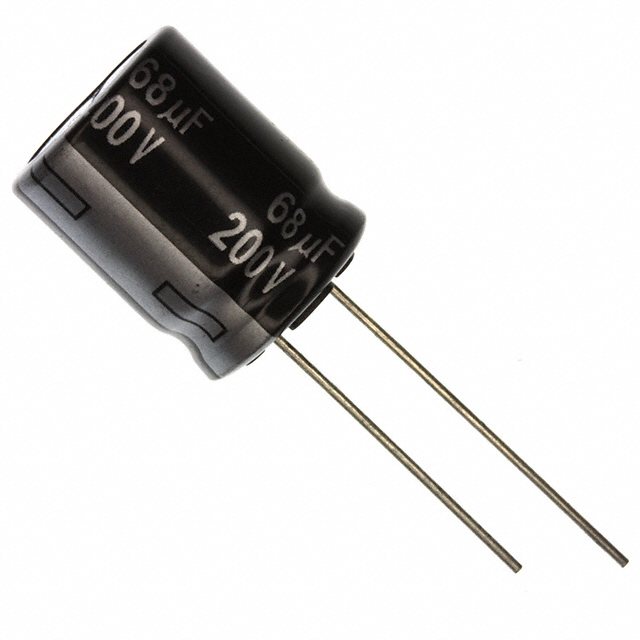

CAP ALUM 68UF 20% 200V RADIAL TH

Part	Ripple Current @ Low Frequency	Package / Case	Mounting Type	Polarization	Applications	Tolerance	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency
Panasonic Industrial Automation Sales EEU-EE2D680	465.5 mA	Radial Can	Through Hole	Polar	General Purpose	20 %	68 µF	0.492 in	12.5 mm	5 mm	0.197 in	10000 Hrs	1.063 in	27 mm	200 V	-25 °C	105 ░C
Panasonic Industrial Automation Sales EEU-EE2D330		Radial Can	Through Hole	Polar	General Purpose	20 %	33 ÁF	0.394 in	10 mm	5 mm	0.197 in	8000 Hrs	0.866 in	22 mm	200 V	-25 °C	105 ░C	920 mA
Panasonic Industrial Automation Sales EEU-EE2W100	171.5 mA	Radial Can	Through Hole	Polar	General Purpose	20 %	10 µF	0.492 in	12.5 mm	5 mm	0.197 in	10000 Hrs	0.866 in	22 mm	450 V	-25 °C	105 ░C	490 mA
Panasonic Industrial Automation Sales EEU-EE2E470	451.5 mA	Radial Can	Through Hole	Polar	General Purpose	20 %	47 µF	0.492 in	12.5 mm	5 mm	0.197 in	10000 Hrs	1.063 in	27 mm	250 V	-25 °C	105 ░C	1.29 A
Panasonic Industrial Automation Sales EEU-EE2G820	575.75 mA	Radial Can	Through Hole	Polar	General Purpose	20 %	82 µF	0.709 "	18 mm	7.5 mm	0.295 in	10000 Hrs			400 V	-25 °C	105 ░C	1.645 A
Panasonic Industrial Automation Sales EEU-EE2E820S		Radial Can	Through Hole	Polar	General Purpose	20 %	82 µF	0.709 "	18 mm	7.5 mm	0.295 in	10000 Hrs	0.866 in	22 mm	250 V	-25 °C	105 ░C	1.68 A
Panasonic Industrial Automation Sales EEU-EE2D101S	666 mA	Radial Can	Through Hole	Polar	General Purpose	20 %	100 µF	0.709 "	18 mm	7.5 mm	0.295 in	10000 Hrs	0.866 in	22 mm	200 V	-25 °C	105 ░C	1.665 A
Panasonic Industrial Automation Sales EEU-EE2V820S	535.5 mA	Radial Can	Through Hole	Polar	General Purpose	20 %	82 µF	0.709 "	18 mm	7.5 mm	0.295 in	10000 Hrs	1.063 in	27 mm	350 V	-25 °C	105 ░C	1.53 A
Panasonic Industrial Automation Sales EEU-EE2W6R8X		Radial Can	Through Hole	Polar	General Purpose	20 %	6.8 ÁF								450 V	-25 °C	105 ░C
Panasonic Industrial Automation Sales EEU-EE2C221	912 mA	Radial Can	Through Hole	Polar	General Purpose	20 %	220 µF	0.63 in	16 mm	7.5 mm	0.295 in	10000 Hrs			160 V	-25 °C	105 ░C	2.28 A
