7110-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMC M RA BHD PCB
| Part | Dielectric Material | Body Finish | Body Material | Center Contact Plating | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Housing Color | Impedance | Frequency - Max [Max] | Center Contact Material | Connector Style | Fastening Type | Shield Termination | Number of Ports | Mounting Type | Contact Termination | Mounting Feature | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

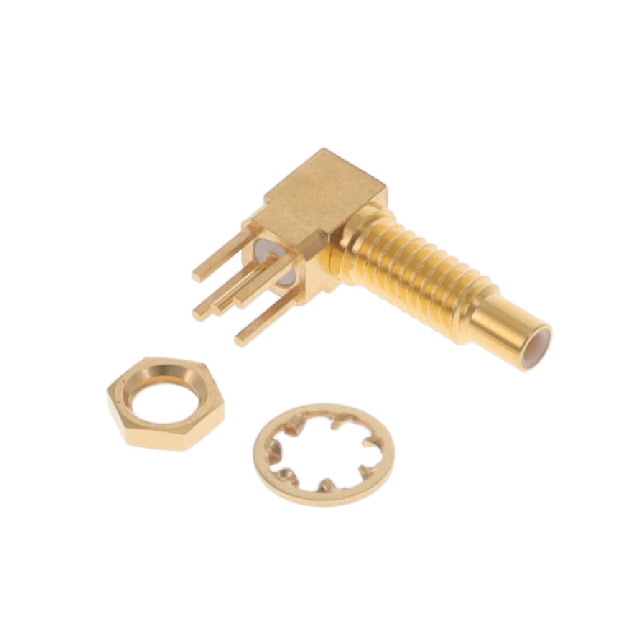

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | 500 | 250 V | Gold | 50 Ohms | 12.4 GHz | Beryllium Copper | SSMC | Snap-On | Solder | 1 | Panel Mount Right Angle Through Hole | Solder | Bulkhead - Front Side Nut | Jack Male Pin |

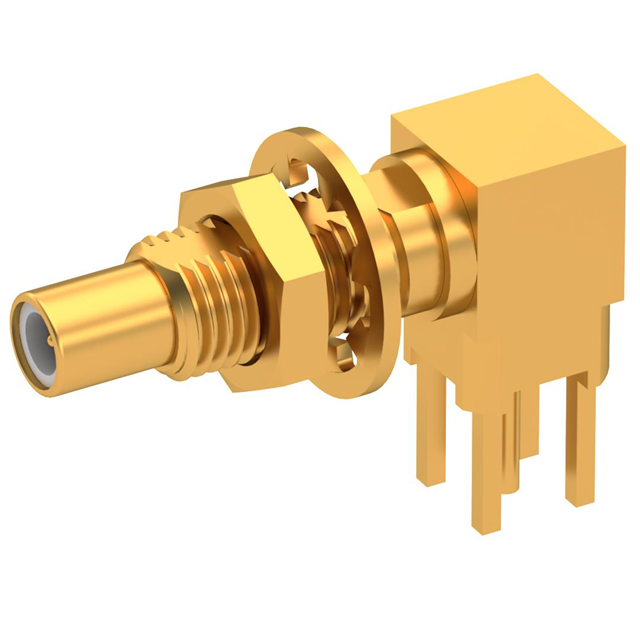

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | 500 | 250 V | Gold | 50 Ohms | 12.4 GHz | Beryllium Copper | SSMC | Snap-On | Solder | 1 | Panel Mount Right Angle Through Hole | Solder | Bulkhead - Front Side Nut | Jack Male Pin |
