M8MX25 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

MOTOR INDUCT 80MM 100V 25W

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Function	Power - Rated	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	RPM	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Termination Style	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Weight	Weight
Panasonic Industrial Automation Sales M8MX25G4Y	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	0.445 in	11.3 mm	1650 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	200 VAC 220 VAC	150 mNm	21.24 oz-in	Wire Leads
Panasonic Industrial Automation Sales M8MX25G4YGA	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	0.445 in	11.3 mm	1675 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	220 VAC	140 mNm	19.83 oz-in	Wire Leads
Panasonic Industrial Automation Sales M8MX25SK4YGA	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	1.26 in	32 mm	1675 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	220 VAC	140 mNm	19.83 oz-in	Connector	0.315 in	8 mm
Panasonic Industrial Automation Sales M8MX25GK4Y	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	0.445 in	11.3 mm	1650 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	200 VAC 220 VAC	150 mNm	21.24 oz-in	Connector
Panasonic Industrial Automation Sales M8MX25SK4CGA	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	1.26 in	32 mm	1325 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	380 VAC 400 VAC	180 mNm	25.49 oz-in	Connector	0.315 in	8 mm

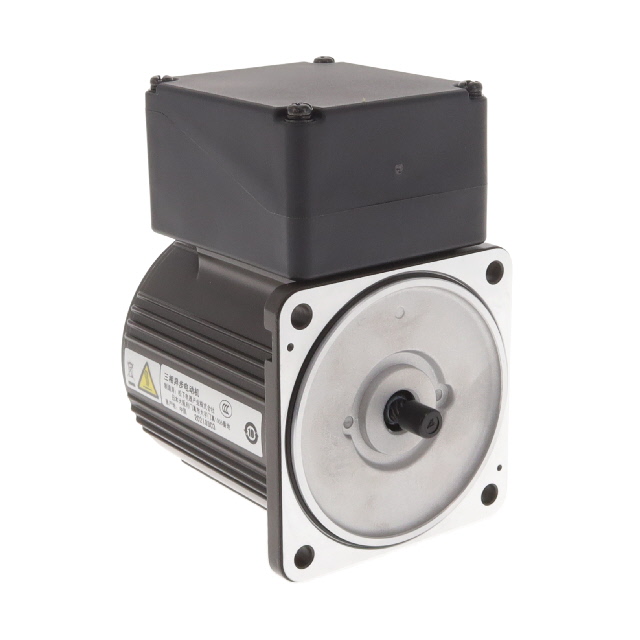

Panasonic Industrial Automation Sales M8MX25GK4YGA	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	0.445 in	11.3 mm	1550 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	220 VAC	150 mNm	21.24 oz-in	Connector			1.5 kg	3.3 lbs
Panasonic Industrial Automation Sales M8MX25HK4Y	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	0.551 in	14 mm	1650 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	200 VAC 220 VAC	150 mNm	21.24 oz-in	Connector
Panasonic Industrial Automation Sales M8MX25H4Y	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	0.551 in	14 mm	1650 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	200 VAC 220 VAC	150 mNm	21.24 oz-in	Wire Leads
Panasonic Industrial Automation Sales M8MX25GB4Y	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	0.445 in	11.3 mm	1650 RPM	3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	200 VAC 220 VAC	150 mNm	21.24 oz-in	Wire Leads
Panasonic Industrial Automation Sales M8MX25S4YS	AC Motor	-10 °C	40 °C	CCC CE cULus	Standard	25 W	1.26 in	32 mm		3.15 in	80 mm	3.15 in	80 mm	3.701 in	94 mm	200 VAC 220 VAC			Wire Leads	0.315 in	8 mm
