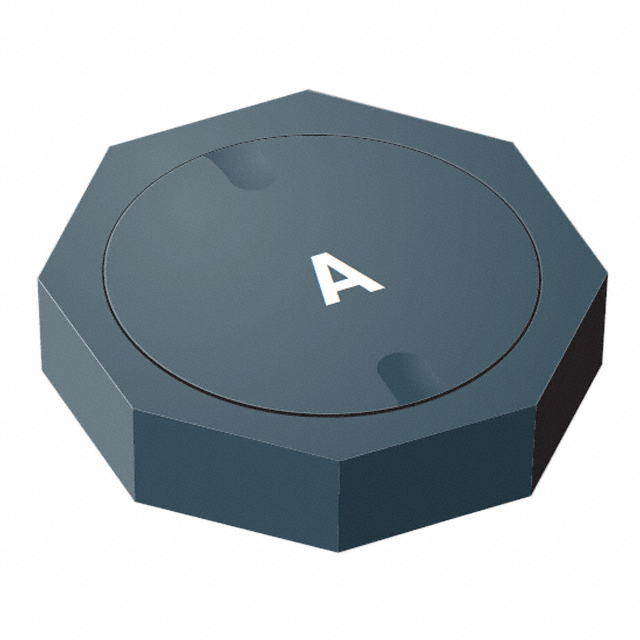

SRU2011 Series

Catalog

IND2.8X2.8X1.1MM,15UH30%0.38A,SHDSMD /TAPE & REEL - 7" REEL

Part	Type	Inductance	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Q @ Freq [custom]	Q @ Freq [custom]	Shielding	Material - Core	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Mounting Type	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRU2011-150Y	Drum Core Wirewound	15 µH	0.38 A	340 mA	40 MHz	30 %	125 °C	-40 C	Nonstandard	2.52 MHz	10	Shielded	Ferrite	0.11 in	2.8 mm	2.8 mm	0.11 "	100 kHz	1.2 mm	0.047 "	1.2 Ohm	Surface Mount
Bourns Inc. SRU2011-4R7Y	Drum Core Wirewound	4.7 ÁH	0.73 A	580 mA		30 %	125 °C	-40 C	Nonstandard			Shielded	Ferrite	0.11 in	2.8 mm	2.8 mm	0.11 "	100 kHz	1.2 mm	0.047 "	365 mOhm	Surface Mount	6 7.96 MHz
Bourns Inc. SRU2011-6R8Y	Drum Core Wirewound	6.8 µH	700 mA	540 mA	60 MHz	30 %	125 °C	-40 C	Nonstandard			Shielded	Ferrite	0.11 in	2.8 mm	2.8 mm	0.11 "	100 kHz	1.2 mm	0.047 "		Surface Mount	6 7.96 MHz	450 mOhm
Bourns Inc. SRU2011-1R0Y	Drum Core Wirewound	1 µH	1.65 A		160 MHz	30 %	125 °C	-40 C	Nonstandard			Shielded	Ferrite	0.11 in	2.8 mm	2.8 mm	0.11 "	100 kHz	1.2 mm	0.047 "		Surface Mount	6 7.96 MHz	100 mOhm
