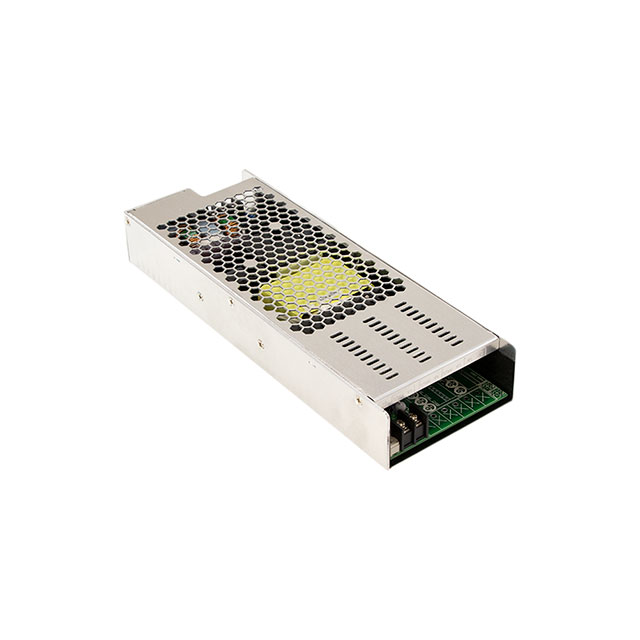

UMP-400 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER
| Part | Applications | Power (Watts) | Voltage - Output 2 | Type | Number of Outputs | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 2 | Efficiency | Mounting Type | Voltage - Output 1 | Current - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input [Max] | Voltage - Input [Min] | Minimum Load Required | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Industrial | 400 W | 5 V | Configurable | 2 | 4000 V | -30 °C | 70 °C | 8 A | 88.5 % | Chassis Mount | 24 V | 16.7 A | 250 mm | 9.84 in | 1.46 in | 89 mm | 37 mm | 3.5 " | 264 VAC 375 VDC | 90 VAC 127 VDC | |||
MEAN WELL USA Inc. | ITE (Commercial) Medical | 398 W | Enclosed | 1 | 4000 V | -30 °C | 70 °C | 88.5 % | Chassis Mount | 48 V | 8.3 A | 250 mm | 9.84 in | 1.46 in | 89 mm | 37 mm | 3.5 " | 264 VAC 370 VDC | 90 VAC 127 VDC | Adjustable Output PFC Universal Input | CB CE cURus EAC |
