842-070 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 70POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Read Out	Card Type	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions	Termination	Contact Type	Gender	Number of Positions/Bay/Row	Color	Contact Finish	Features

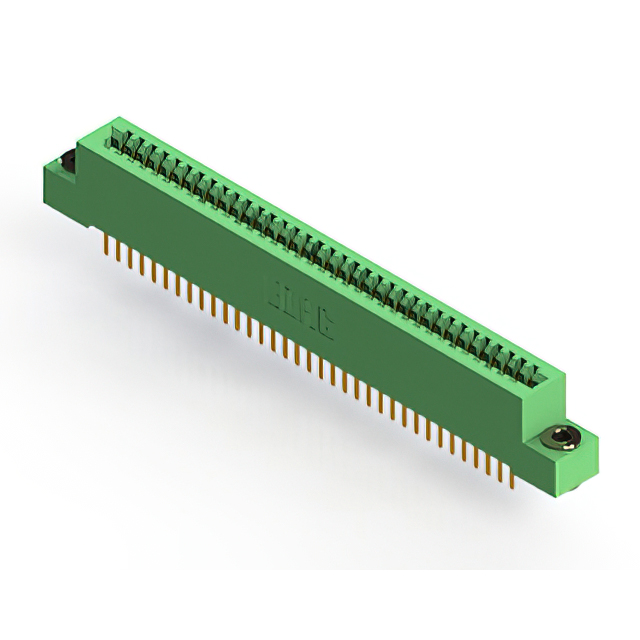

EDAC Inc. 842-070-520-203	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	70	Solder	Cantilever	Female	35	Green	Gold
EDAC Inc. 842-070-500-201	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2				0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	70	Solder Eyelet(s)	Cantilever	Female	35	Green	Gold

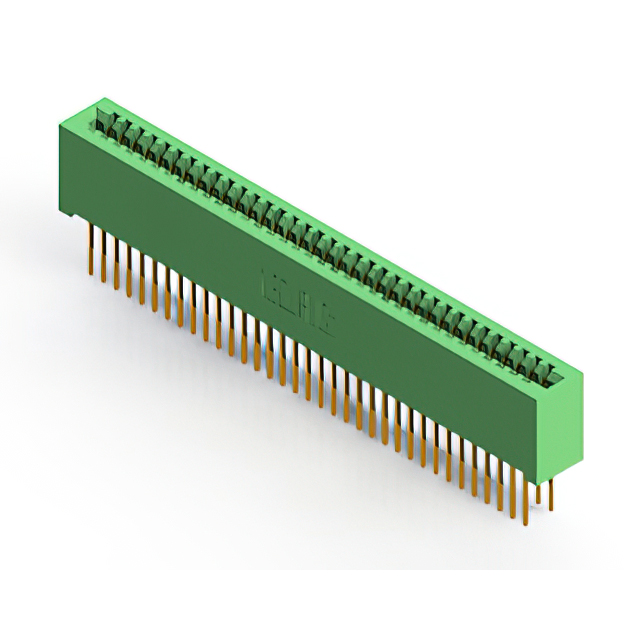

EDAC Inc. 842-070-523-201	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2				0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	70	Solder	Cantilever	Female	35	Green	Gold

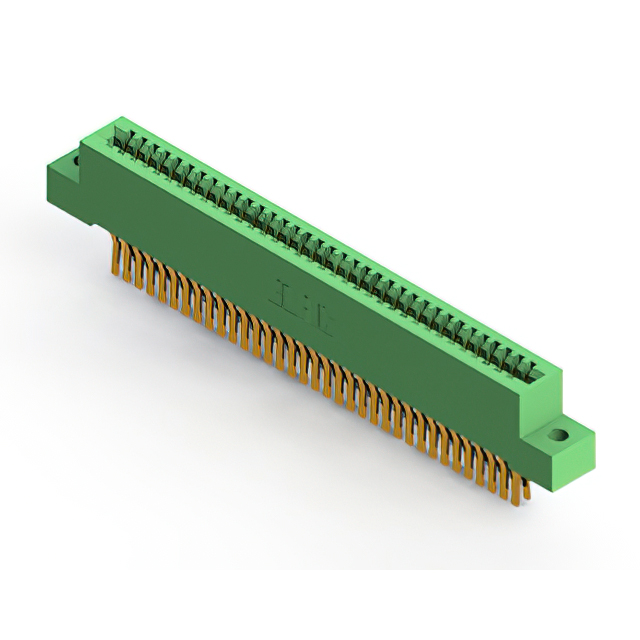

EDAC Inc. 842-070-560-202	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Board Edge Straddle Mount	70	Solder	Cantilever	Female	35	Green	Gold	Card Extender

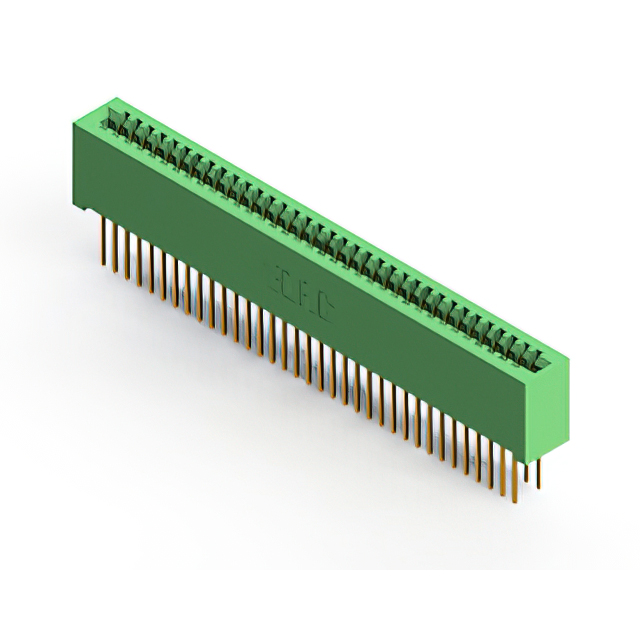

EDAC Inc. 842-070-540-201	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2				0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	70	Wire Wrap	Cantilever	Female	35	Green	Gold

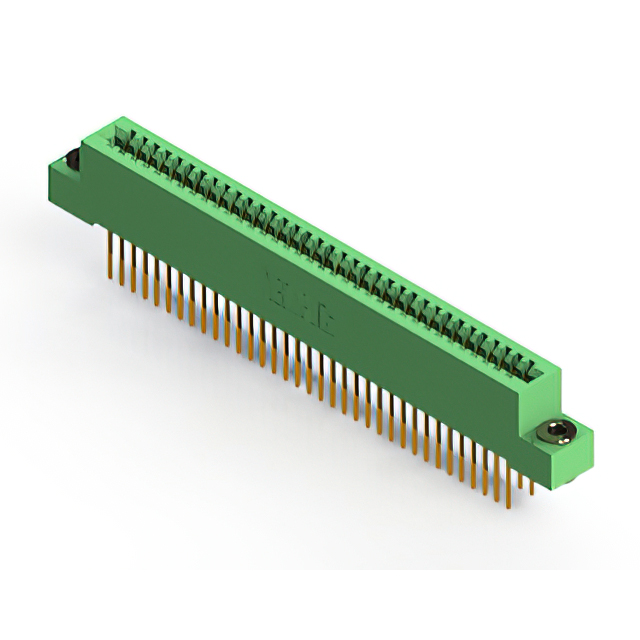

EDAC Inc. 842-070-523-203	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	70	Solder	Cantilever	Female	35	Green	Gold

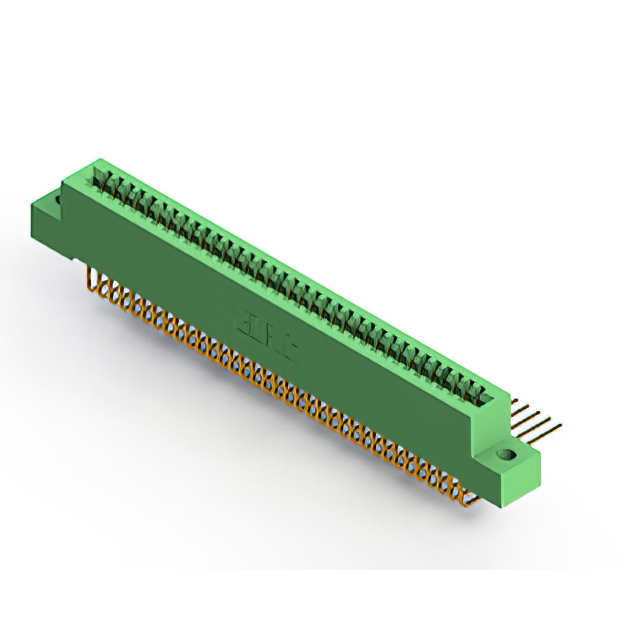

EDAC Inc. 842-070-558-202	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Right Angle Through Hole	70	Solder	Cantilever	Female	35	Green	Gold
EDAC Inc. 842-070-558-208	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2		4-40 Flush Mount Threaded Insert Top Opening		0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Right Angle Through Hole	70	Solder	Cantilever	Female	35	Green	Gold

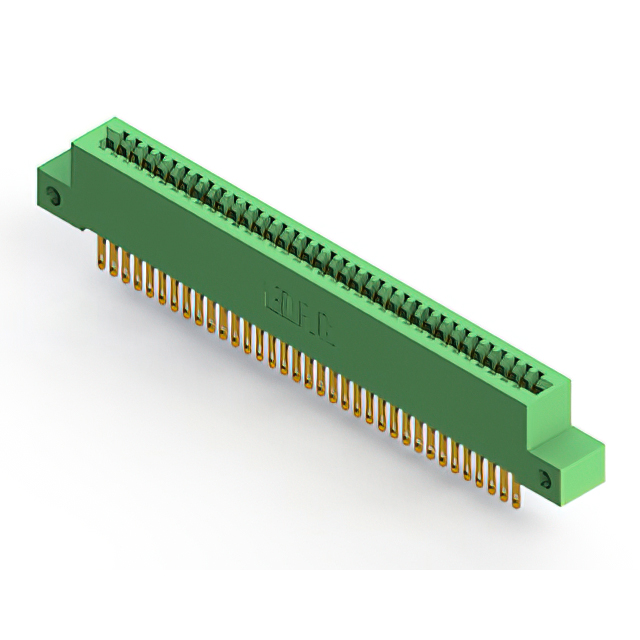

EDAC Inc. 842-070-500-212	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	70	Solder Eyelet(s)	Cantilever	Female	35	Green	Gold
EDAC Inc. 842-070-541-212	Diallyl Phthalate (DAP)	2	Copper Alloy	Dual	Non Specified - Dual Edge	2	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Through Hole	70	Wire Wrap	Cantilever	Female	35	Green	Gold
