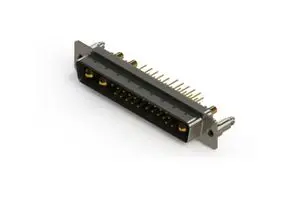

627-25W Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB PLUG 25P PNL MNT SLDR
| Part | Dielectric Material | Voltage Rating | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Shell Material, Finish | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Mounting Type | Contact Finish | Flange Feature | Contact Type | Features | Connector Type | Flange Feature [custom] | Flange Feature [custom] | Current Rating (Amps) | Contact Finish Thickness | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | 30 Áin | 0.76 Ám | 5 A 40 A | Nickel Plated Steel | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | Board Side (4-40) | Signal and Power | Grounding Indents Shielded | Plug Male Pins | |||||
EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | 30 Áin | 0.76 Ám | 5 A 30 A | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | Signal and Power | Grounding Indents Shielded | Plug Male Pins | 4-40 | 4-40 | |||||
EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | Nickel Plated Steel | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | M3 | Signal and Power | Board Lock Grounding Indents Shielded | Plug Male Pins | 20A 5A | Flash | ||||||
EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | 5 A 40 A | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | Board Side (4-40) | Signal and Power | Grounding Indents Shielded | Plug Male Pins | Flash | |||||||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | Nickel Plated Steel | Solder | (DC C) - 25W3 | 4 | Through Hole | Gold | Board Side (M3) | Signal and Power | Board Lock Grounding Indents Shielded | Plug Male Pins | 20A 5A | Flash | ||||||
EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 22 | 2 | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | 4-40 | Coax Signal | Board Lock Grounding Indents Shielded | Plug Male Pins | Flash | 3 | ||||||||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | Nickel Plated Steel | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | Board Side (4-40) | Signal and Power | Grounding Indents Shielded | Plug Male Pins | 20A 5A | Flash | ||||||
EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | 5 A 40 A | Nickel Plated Steel | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | M3 | Signal and Power | Board Lock Grounding Indents Shielded | Plug Male Pins | Flash | ||||||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 22 | 2 | 30 Áin | 0.76 Ám | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | Coax Signal | Grounding Indents Shielded | Plug Male Pins | 4-40 | 4-40 | 3 | ||||||
EDAC Inc. | Polyester Thermoplastic | 125 VDC | Black | Copper Alloy | -55 C | 125 °C | Combo D-Sub | UL94 V-0 | 3 | 22 | 2 | 5 A 30 A | Solder | (DC C) - 25W3 | 4 | Panel Mount Through Hole | Gold | Board Side (4-40) | Signal and Power | Grounding Indents Shielded | Plug Male Pins | Flash |
