002219 Series
Manufacturer: Molex
Beta
⌘K
HEADERS & WIRE HOUSINGS KK 100 HDR FRLK RTAN 04 CKT W/VOID GOLD
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Type | Style | Pitch - Mating | Pitch - Mating | Mounting Type | Termination | Number of Positions | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Number of Rows | Contact Shape | Material Flammability Rating | Fastening Type | Contact Material | Contact Finish - Post | Insulation Material | Insulation Color | Shrouding | Number of Positions Loaded | Connector Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Features | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 2.54 µm | 100 µin | Automotive General Purpose Medical Telecommunications | Male Pin | Board to Board Cable | 0.1 " | 2.54 mm | Right Angle Through Hole | Solder | 4 | 0.141 in | 3.58 mm | 6.35 mm | 0.25 in | 1 | Square | UL94 V-0 | Friction Lock | Brass | Tin | Nylon Polyamide (PA) | White | Shrouded - 1 Wall | 3 | Header | Gold | 0.76 Ám | 30 Áin | 6.7 mm | 0.264 in | |||

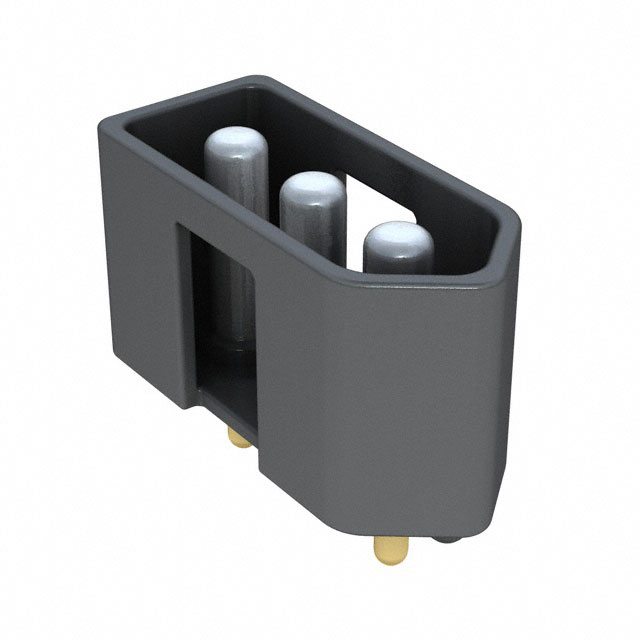

 Molex | General Purpose Telecommunications | Male Pin | Board to Board Cable | 0.198 in | 5.03 mm | Through Hole | Solder | 10.7 mm | 0.421 " | 1 | Circular | UL94 V-0 | Latch Lock | Cartridge Brass | Tin | Polyester | Black | Shrouded - 4 Wall | 2 | Header | 5.08 µm | 200 µin | Board Lock | 0.17 in | 4.32 mm | ||||||||
 Molex |
