SC03-12 Series

Catalog

DISPLAY 7-SEG 0.3" SGL YLW 14DIP

Part	Display Type	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Common Pin	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Characters	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Millicandela Rating	Power Dissipation (Max)
Kingbright SC03-12YWA	7-Segment	7.62 mm	0.3 in	20 mA	Common Cathode	14-DIP	0.3 in	7.62 mm	590 nm	Yellow	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	1	2.1 V	75 mw
Kingbright SC03-12GWA	7-Segment	7.62 mm	0.3 in	20 mA	Common Cathode	14-DIP	0.3 in	7.62 mm	565 nm	Green	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	1	2.2 V	62.5 mW	11 mcd
Kingbright SC03-12HDB	7-Segment	7.62 mm	0.3 in	20 mA	Common Cathode	14-DIP	0.3 in	7.62 mm	700 nm	Red	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	1	2.5 V			120 mW

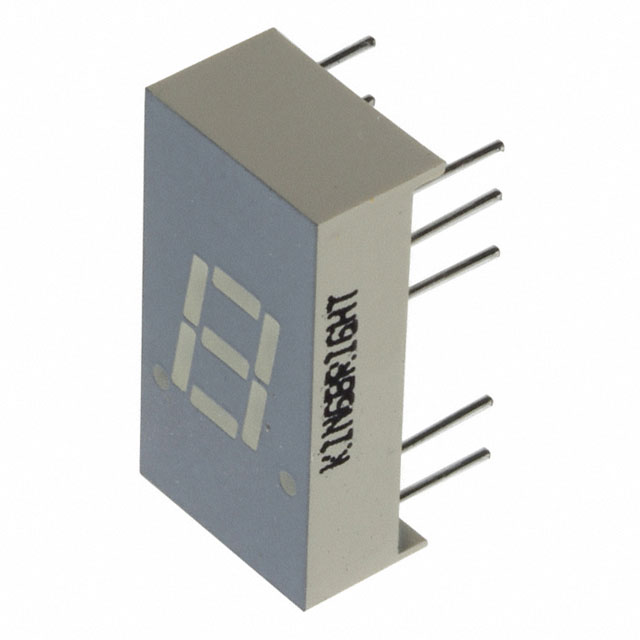

Kingbright SC03-12SRWA	7-Segment	7.62 mm	0.3 in	20 mA	Common Cathode	14-DIP	0.3 in	7.62 mm	660 nm	Red	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	1	1.85 V	75 mw	42 mcd
Kingbright SC03-12CGKWA	7-Segment	7.62 mm	0.3 in	20 mA	Common Cathode	10 Leads 14-DIP	0.6 in	15.24 mm		Green	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	1	2.1 V	75 mw	57 mcd

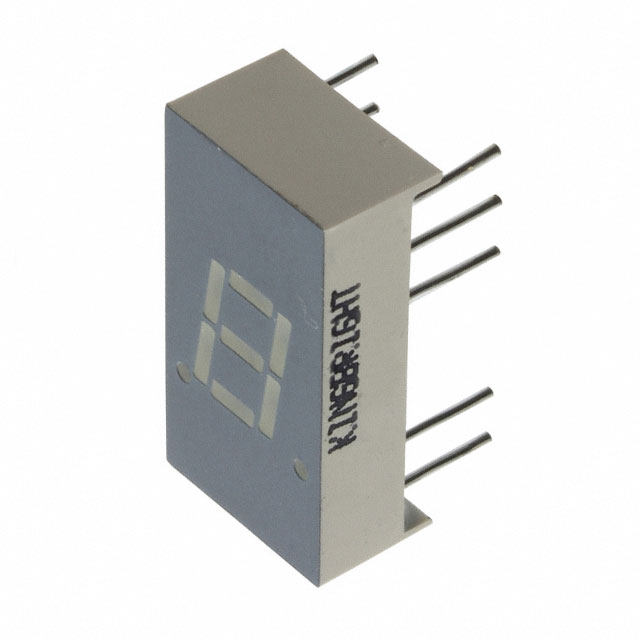

Kingbright SC03-12EWA	7-Segment	7.62 mm	0.3 in	20 mA	Common Cathode	14-DIP	0.3 in	7.62 mm	627 nm	Red	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	1	2 V	75 mw	8.1 mcd
