TL6800 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCH, TL6800 SERIES, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 160 GF, 50MA AT 12VDC
| Part | Switch Travel | Mechanical Life | Termination Style | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Circuit | Operating Force | Switch Function | Mounting Type | Ingress Protection | Actuator Height off PCB, Vertical [z] | Actuator Type | Outline [y] | Outline [x] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

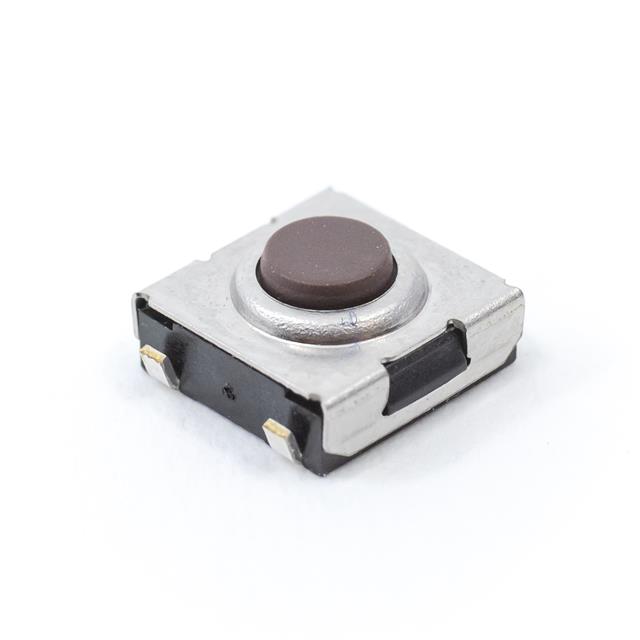

 E-Switch | 0.25 mm | 1000000 Cycles | J Lead | Top Actuated | 90 °C | -40 C | 0.05 A 12 VDC | SPST-NO | 160 gf | Off-Mom | Surface Mount | IP67 - Dust Tight Waterproof | 3.1 mm | Standard | 6.2 mm | 6.3 mm | Non-Illuminated |

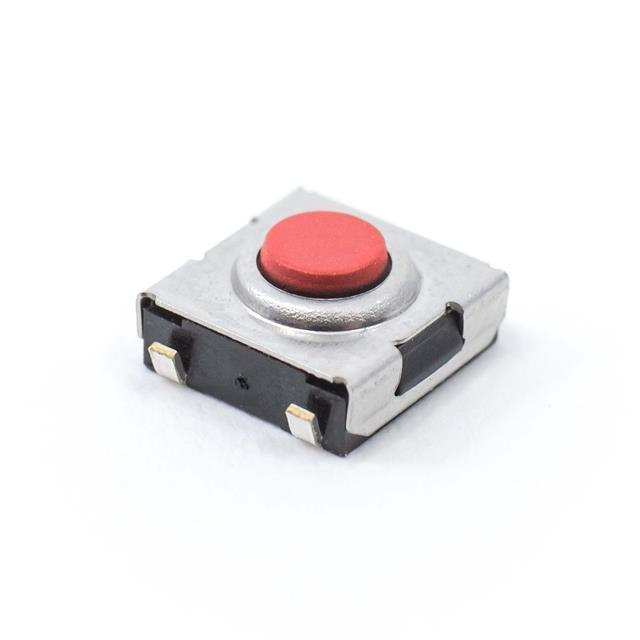

 E-Switch | 0.25 mm | 500000 Cycles | J Lead | Top Actuated | 90 °C | -40 C | 0.05 A 12 VDC | SPST-NO | 260 gf | Off-Mom | Surface Mount | IP67 - Dust Tight Waterproof | 3.1 mm | Standard | 6.2 mm | 6.3 mm | Non-Illuminated |
