AWG28-25 Series

Catalog

CBL RIBN 25COND 0.05 GRAY FOOT

Part	Conductor Material	Spool Size [x]	Spool Size [x]	Insulation Resistance	First Conductor Mark	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Pitch	Pitch	Jacket Color	Length	Length	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Wire Gauge	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Thickness	Ribbon Thickness	Number of Conductors [custom]	Voltage	Shielding	Cable Type	Operating Temperature

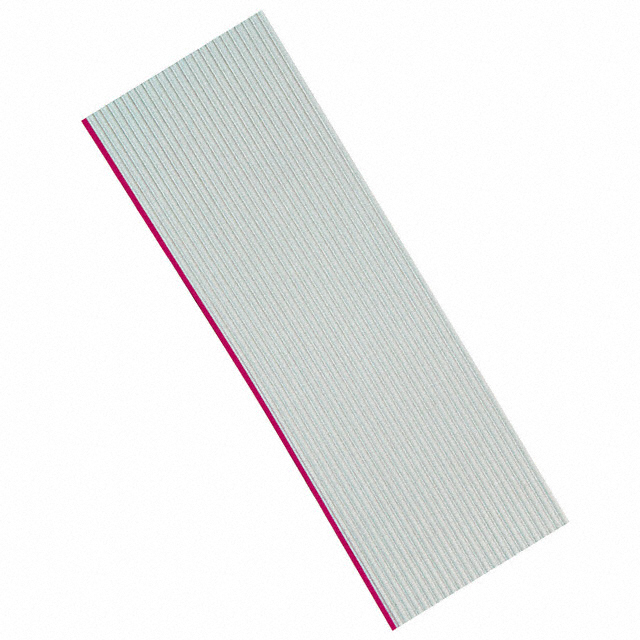

Assmann WSW Components AWG28-25/G/300	Copper Tinned	300 ft	91.44 m	100 MOhms	Red	Enter Number of Feet in Order Quantity	-10 °C	105 ░C	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Gray	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	50 ft	15.24 m	36 AWG	7 Strands	UL Style 2651	28 AWG	1.25 in	31.75 mm	0.89 mm	0.035 in	25	300 VDC	Unshielded	Flat Cable
Assmann WSW Components AWG28-25/F-1/300	Copper Tinned			100 MOhms			-10 °C	105 ░C	Poly-Vinyl Chloride (PVC)	0.039 in	1 mm	Multiple	91440 mm	3600 in			36 AWG	7 Strands	UL Style 2651	28 AWG	0.984 in	25 mm	0.89 mm	0.035 in	25	300 VDC	Unshielded	Flat Cable

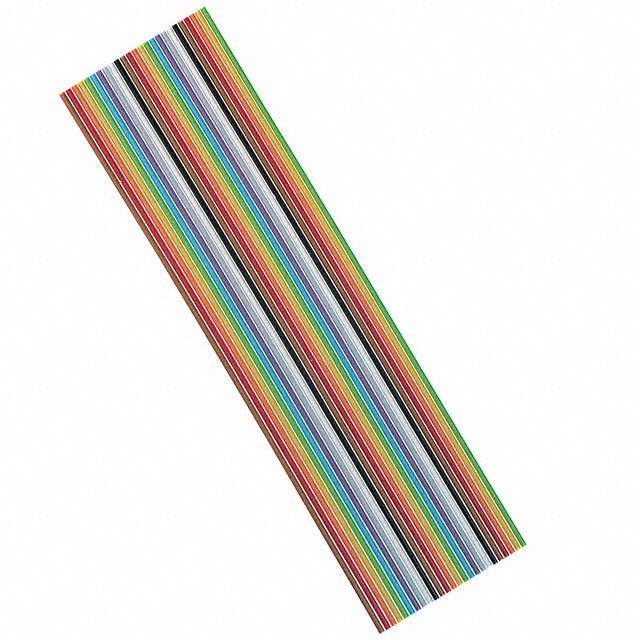

Assmann WSW Components AWG28-25/F/300	Copper Tinned	300 ft	91.44 m	100 MOhms	Red	Enter Number of Feet in Order Quantity			Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Multiple	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	50 ft	15.24 m	36 AWG	7 Strands	UL Style 2651	28 AWG	1.25 in	31.75 mm	0.89 mm	0.035 in	25	300 VDC	Unshielded	Flat Cable	105 C
