29097 Series
Manufacturer: Phoenix Contact
Beta
⌘K

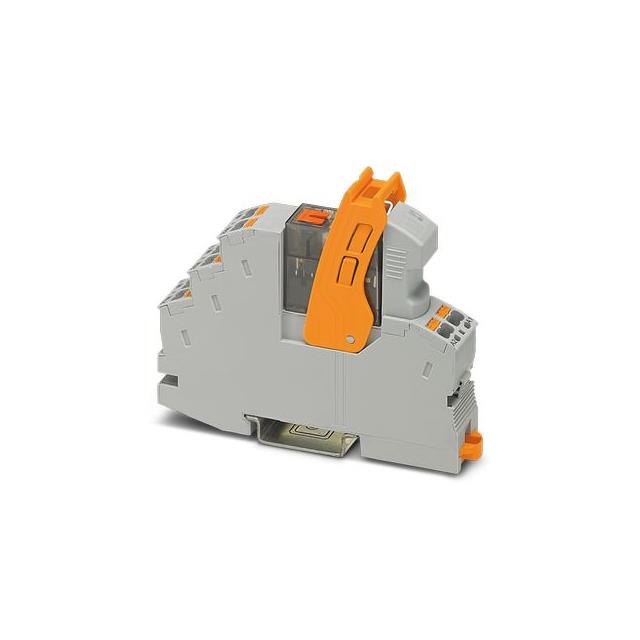

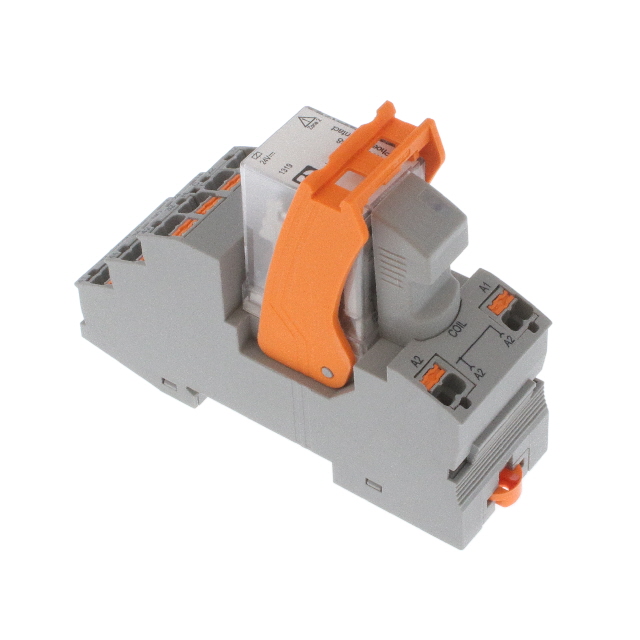

POWER RELAY, 4PDT, 24VDC, 6A, SOCKET
| Part | Coil Resistance | Approval Agency | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Switching Voltage | Operate Time | Features | Coil Voltage | Contact Material | Coil Current | Relay Type | Mounting Type | Contact Rating (Current) | Termination Style | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 632 Ohms | cULus EAC UL VDE | 4PDT (4 Form C) | 70 °C | -40 C | Non Latching | 250 VAC 250 VDC | 13 ms | Mechanical Indicator | 24 VDC | Silver Nickel (AgNi) | 38 mA | General Purpose | Socketable | 6 A | Plug In | 3 ms |
 Phoenix Contact | 571 Ohms | ATEX cULus EAC IECEx UL | 4PDT (4 Form C) | 60 °C | -40 C | Non Latching | 250 VAC 250 VDC | 13 ms | Diode Lighted Indicator Socket Included | 24 VDC | Silver Nickel (AgNi) | 42 mA | General Purpose | DIN Rail | 6 A | Spring Terminal | 14 ms |
 Phoenix Contact | 9.23 kOhms | ATEX cULus EAC IECEx UL | 4PDT (4 Form C) | 50 °C | -40 C | Non Latching | 250 VAC 250 VDC | 15 ms | Lighted Indicator Socket Included Varistor | 120 VAC | Silver Nickel (AgNi) | 13 mA | General Purpose | DIN Rail | 5 A | Spring Terminal | 20 ms |
 Phoenix Contact | 17.14 kOhms | DPDT (2 Form C) | 45 °C | -40 C | Non Latching | 250 VAC 250 VDC | 10 ms | Lighted Indicator Socket Included Varistor | 120 VAC | Silver Nickel (AgNi) | 7 mA | General Purpose | DIN Rail | 5 A | Screw Terminal | 20 ms | |
 Phoenix Contact | 35.39 kOhms | ATEX cULus EAC IECEx UL | 4PDT (4 Form C) | 50 °C | -40 C | Non Latching | 250 VAC 250 VDC | 15 ms | Lighted Indicator Socket Included Varistor | 230 VAC | Silver Nickel (AgNi) | 6.5 mA | General Purpose | DIN Rail | 5 A | Spring Terminal | 20 ms |
 Phoenix Contact | 17.14 kOhms | DNV EAC | SPDT (1 Form C) | 50 °C | -40 C | Non Latching | 250 VAC 250 VDC | 10 ms | Lighted Indicator Socket Included Varistor | 120 VAC | Silver Nickel (AgNi) | 7 mA | General Purpose | DIN Rail | 8.5 A | Screw Terminal | 20 ms |
 Phoenix Contact | 17.1 kOhms | DPDT (2 Form C) | 45 °C | -40 C | Non Latching | 250 VAC 250 VDC | 10 ms | Socket Included Test Button Varistor | 120 VAC | Silver Nickel (AgNi) | 7 mA | General Purpose | DIN Rail | 8 A | Spring Terminal | 20 ms | |
 Phoenix Contact | 9.23 kOhms | cULus EAC UL VDE | 4PDT (4 Form C) | 55 °C | -40 C | Non Latching | 250 VAC 250 VDC | 15 ms | Lighted Indicator Mechanical Indicator | 120 VAC | Silver Nickel (AgNi) | 13 mA | General Purpose | Socketable | 6 A | Plug In | 20 ms |
