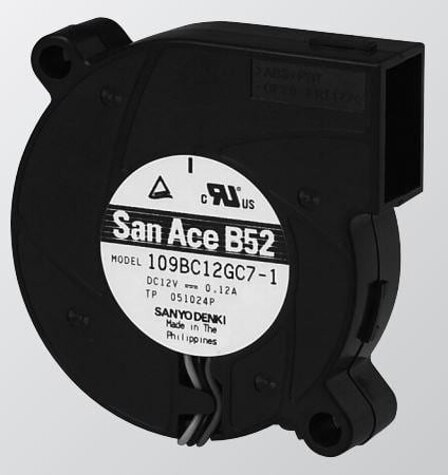

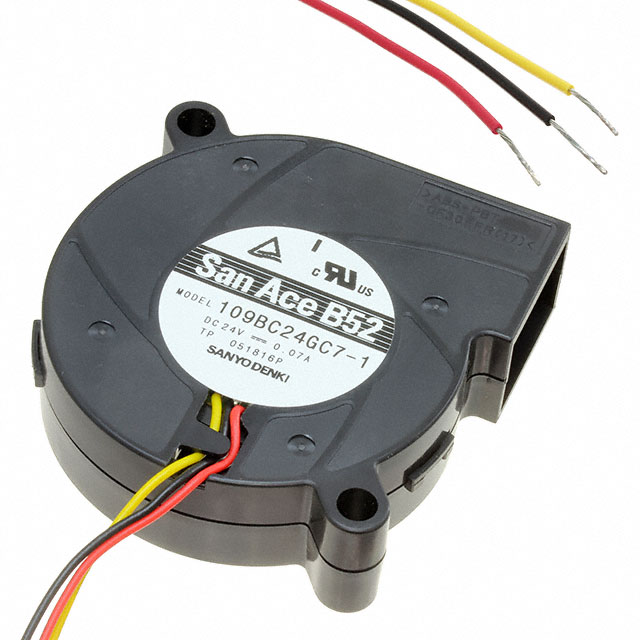

109BC24 Series
Blowers & Centrifugal Fans DC Blower, 52x15mm, 12VDC, Locked Rotor Sensor
Manufacturer: Sanyo Denki America Inc.
Catalog
Blowers & Centrifugal Fans DC Blower, 52x15mm, 12VDC, Locked Rotor Sensor
Blowers & Centrifugal Fans DC Blower, 52x15mm, 12VDC, Locked Rotor Sensor
Blowers & Centrifugal Fans DC Blower, 52x15mm, 12VDC, Locked Rotor Sensor
Blowers & Centrifugal Fans DC Blower, 52x15mm, 12VDC, Locked Rotor Sensor
| Part | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Voltage - Rated | Noise | Weight | Weight | Static Pressure | Static Pressure | Width [y] | Power (Watts) | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Air Flow | Air Flow | Bearing Type | RPM | Features | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | 40000 Hrs | Plastic | 40 mA | 12 | 27.6 VDC | Plastic | 24 VDC | 38 dB(A) | 33.11 g | 0.073 lb | 0.52 in H2O | 129.5 Pa | 15 mm | 960 mW | 52.6 mm | Square/Rounded | 51 mm | 3.6 CFM | 0.101 m³/min | Ball | 5100 RPM | Locked Rotor Protection Speed Sensor (Tach) | Blower | -20 ░C | 70 °C | 3 Wire Leads | CSA TUV UL |
Sanyo Denki America Inc. | 40000 Hrs | Plastic | 70 mA | 12 | 27.6 VDC | Plastic | 24 VDC | 43 dB | 33.11 g | 0.073 lb | 0.86 in H2O | 214.2 Pa | 15 mm | 1.68 W | 52.6 mm | Square/Rounded | 51 mm | 4.4 CFM | 0.123 m³/min | Ball | 6200 RPM | Locked Rotor Sensor | Blower | -20 ░C | 70 °C | 3 Wire Leads | CSA TUV UL |
Sanyo Denki America Inc. | 40000 Hrs | Plastic | 70 mA | 12 | 27.6 VDC | Plastic | 24 VDC | 43 dB | 33.11 g | 0.073 lb | 0.86 in H2O | 214.2 Pa | 15 mm | 1.68 W | 52.6 mm | Square/Rounded | 51 mm | 4.4 CFM | 0.123 m³/min | Ball | 6200 RPM | Locked Rotor Protection Speed Sensor (Tach) | Blower | -20 ░C | 70 °C | 3 Wire Leads | CSA TUV UL |
Sanyo Denki America Inc. | 40000 Hrs | Plastic | 50 mA | 12 | 27.6 VDC | Plastic | 24 VDC | 40 dB(A) | 33.11 g | 0.073 lb | 0.66 in H2O | 164.4 Pa | 15 mm | 1.2 W | 52.6 mm | Square/Rounded | 51 mm | 4 CFM | 0.112 m³/min | Ball | 5600 RPM | Blower | -20 ░C | 70 °C | 2 Wire Leads | CSA TUV UL | |
Sanyo Denki America Inc. | 40000 Hrs | Plastic | 50 mA | 12 | 27.6 VDC | Plastic | 24 VDC | 40 dB(A) | 33.11 g | 0.073 lb | 0.66 in H2O | 164.4 Pa | 15 mm | 1.2 W | 52.6 mm | Square/Rounded | 51 mm | 4 CFM | 0.112 m³/min | Ball | 5600 RPM | Locked Rotor Sensor | Blower | -20 ░C | 70 °C | 3 Wire Leads | CSA TUV UL |
Sanyo Denki America Inc. | 40000 Hrs | Plastic | 40 mA | 12 | 27.6 VDC | Plastic | 24 VDC | 38 dB(A) | 33.11 g | 0.073 lb | 0.52 in H2O | 129.5 Pa | 15 mm | 960 mW | 52.6 mm | Square/Rounded | 51 mm | 3.6 CFM | 0.101 m³/min | Ball | 5100 RPM | Locked Rotor Sensor | Blower | -20 ░C | 70 °C | 3 Wire Leads | CSA TUV UL |
