29614 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Resistance | Contact Form | Approval Agency | Release Time | Coil Voltage | Termination Style | Relay Type | Mounting Type | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Rating (Current) | Coil Current | Coil Type | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 350 Ohms | SPDT (1 Form C) | cULus EAC UR | 9 ms | 24 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Silver Nickel (AgNi) | 16 A | 24 mA | Non Latching | 12 ms |
 Phoenix Contact | 350 Ohms | DPDT (2 Form C) | cULus EAC UR | 9 ms | 24 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Silver Nickel (AgNi) | 8 A | 32 mA | Non Latching | 12 ms |
 Phoenix Contact | 8.1 kOhms | SPDT (1 Form C) | cULus EAC UR | 9 ms | 120 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Silver Nickel (AgNi) | 16 A | 7 mA | Non Latching | 12 ms |

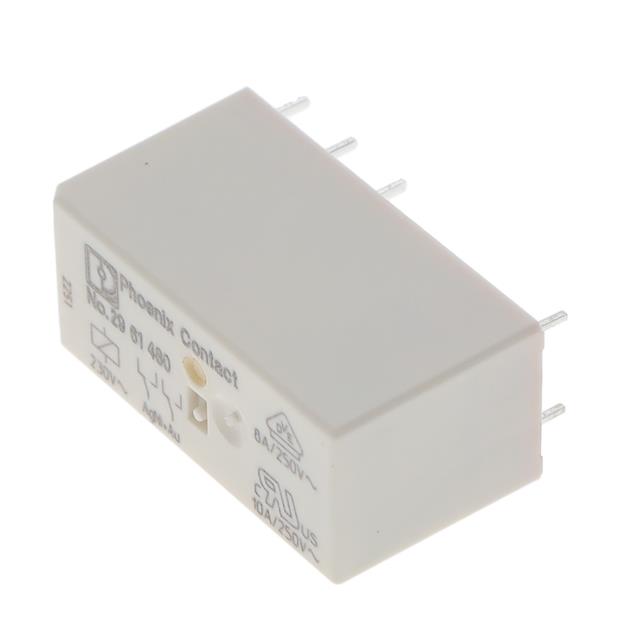

 Phoenix Contact | 32500 Ohms | DPDT (2 Form C) | cULus EAC UR | 9 ms | 230 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | 8 A | 2.5 mA | Non Latching | 12 ms |
 Phoenix Contact | 32500 Ohms | DPDT (2 Form C) | cULus EAC UR | 9 ms | 230 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Silver Nickel (AgNi) | 8 A | 3 mA | Non Latching | 12 ms |
 Phoenix Contact | 32500 Ohms | SPDT (1 Form C) | cULus EAC UR | 9 ms | 230 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Silver Nickel (AgNi) | 16 A | 2.5 mA | Non Latching | 12 ms |
 Phoenix Contact | 8.1 kOhms | DPDT (2 Form C) | cULus EAC UR | 9 ms | 120 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | 8 A | 7 mA | Non Latching | 12 ms |

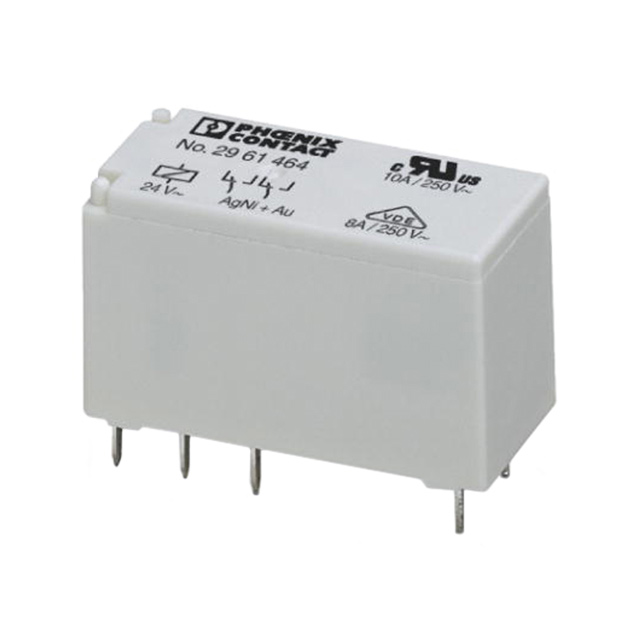

 Phoenix Contact | 350 Ohms | DPDT (2 Form C) | cULus EAC UR | 9 ms | 24 VAC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | 8 A | 24 mA | Non Latching | 12 ms |

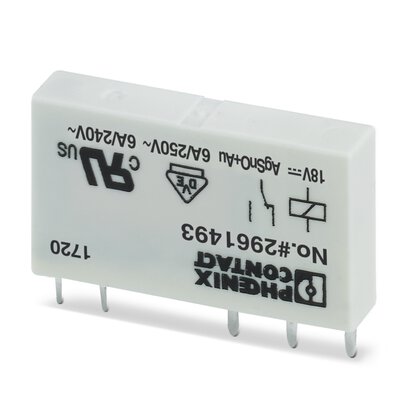

 Phoenix Contact | 1.906 kOhms | SPDT (1 Form C) | cULus EAC UR | 2.5 ms | 18 VDC | PC Pin | General Purpose | Through Hole | 250 VAC 250 VDC | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | 6 A | 9 mA | Non Latching | 5 ms |
