726-012 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 12POS 0.125

Part	Material - Insulation	Termination Rows	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Read Out	Number of Positions/Bay/Row	Pitch	Pitch	Color	Number of Rows	Gender	Termination	Number of Positions	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 726-012-541-101	Polyester Thermoplastic	1	Non Specified - Single Edge	30 Áin	0.76 Ám	Cantilever	Gold	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Single	12	3.18 mm	0.125 in	Black	1	Female	Press-Fit Wire Wrap	12

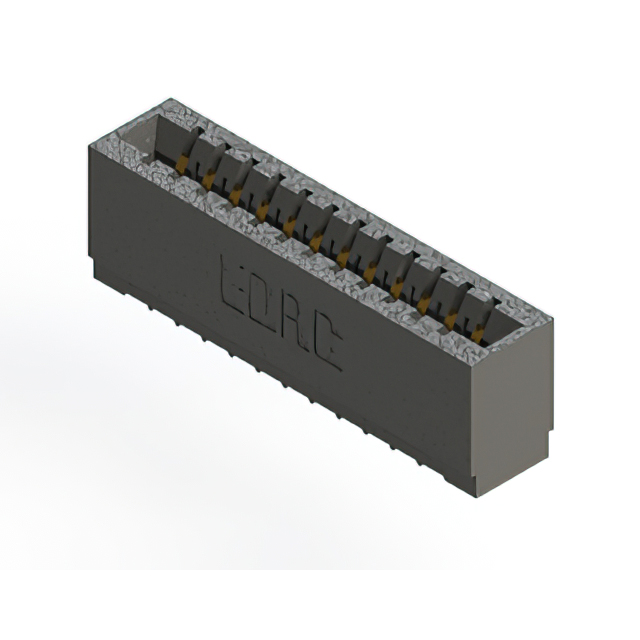

EDAC Inc. 726-012-520-101	Polyester Thermoplastic	1	Non Specified - Single Edge	30 Áin	0.76 Ám	Cantilever	Gold	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Single	12	3.18 mm	0.125 in	Black	1	Female	Press-Fit	12

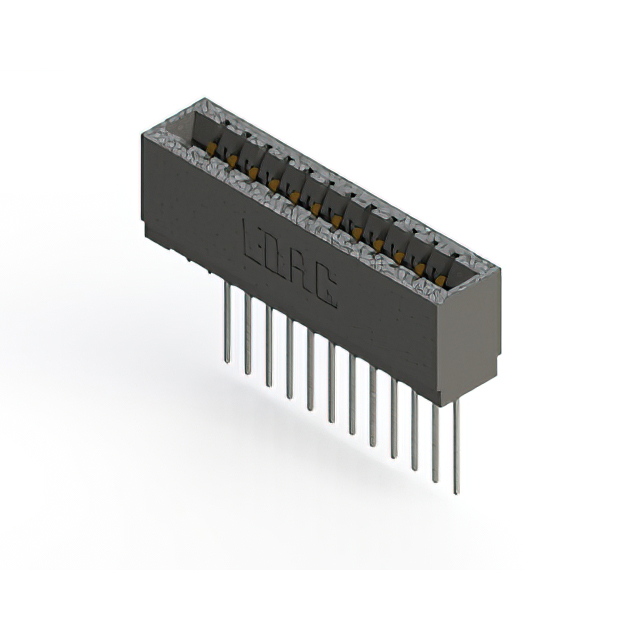

EDAC Inc. 726-012-553-101	Polyester Thermoplastic	1	Non Specified - Single Edge	30 Áin	0.76 Ám	Cantilever	Gold	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Single	12	3.18 mm	0.125 in	Black	1	Female	Press-Fit Wire Wrap	12

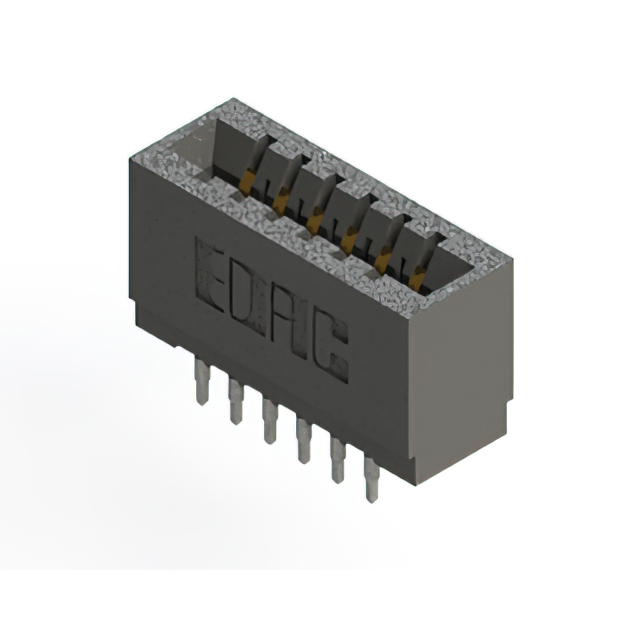

EDAC Inc. 726-012-520-201	Polyester Thermoplastic		Non Specified - Dual Edge	30 Áin	0.76 Ám	Cantilever	Gold	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Dual	6	3.18 mm	0.125 in	Black		Female	Press-Fit	12	2	2
EDAC Inc. 726-012-525-201	Polyester Thermoplastic		Non Specified - Dual Edge	30 Áin	0.76 Ám	Cantilever	Gold	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Dual	6	3.18 mm	0.125 in	Black		Female	Press-Fit	12	2	2

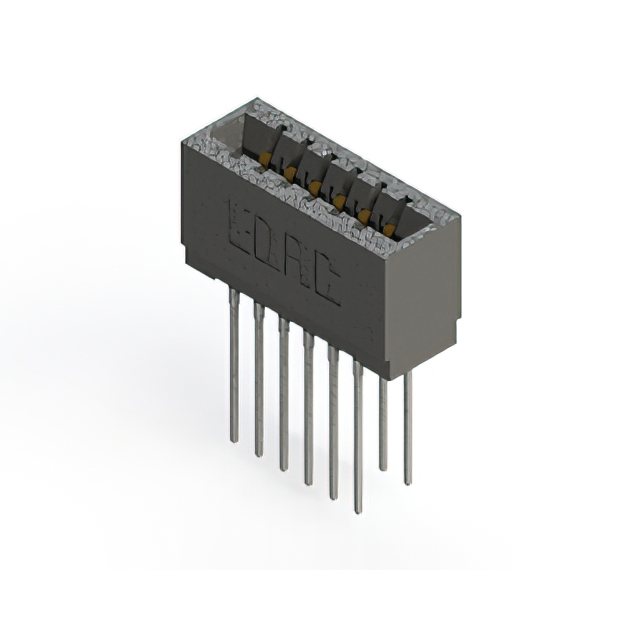

EDAC Inc. 726-012-553-201	Polyester Thermoplastic		Non Specified - Dual Edge	30 Áin	0.76 Ám	Cantilever	Gold	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Dual	6	3.18 mm	0.125 in	Black		Female	Press-Fit Wire Wrap	12	2	2
