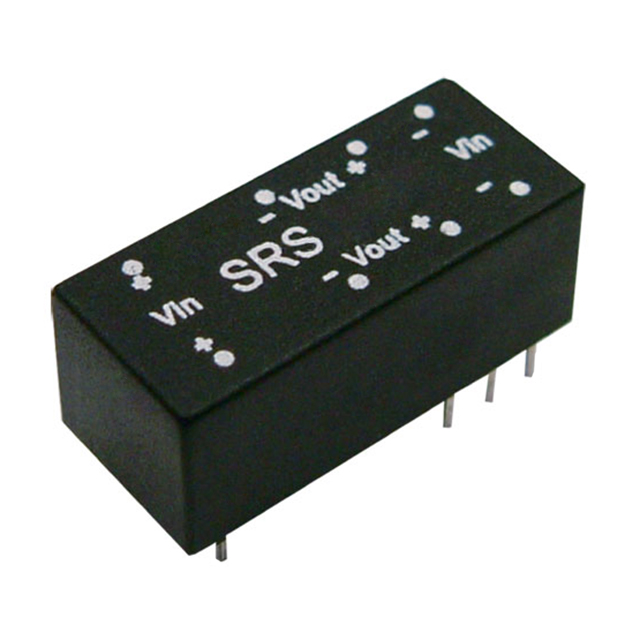

SRS Series

Catalog

DC DC CONVERTER 9V 504MW

Part	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Features	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)
MEAN WELL USA Inc. SRS-4809	Through Hole	52.8 V	1	43.2 V	Isolated Module	9 V	60 %	56 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	504 mW
MEAN WELL USA Inc. SRS-4815	Through Hole	52.8 V	1	43.2 V	Isolated Module	15 V	60 %	34 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	510 mW
MEAN WELL USA Inc. SRS-2412	Through Hole	26.4 V	1	21.6 V	Isolated Module	12 V	60 %	42 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	504 mW
MEAN WELL USA Inc. SRS-2409	Through Hole	26.4 V	1	21.6 V	Isolated Module	9 V	60 %	56 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	504 mW
MEAN WELL USA Inc. SRS-0505	Through Hole	5.5 V	1	4.5 V	Isolated Module	5 V	60 %	100 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	0.5 W
MEAN WELL USA Inc. SRS-1205	Through Hole	13.2 V	1	10.8 V	Isolated Module	5 V	60 %	100 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	0.5 W
MEAN WELL USA Inc. SRS-0509	Through Hole	5.5 V	1	4.5 V	Isolated Module	9 V	60 %	56 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	504 mW
MEAN WELL USA Inc. SRS-0515	Through Hole	5.5 V	1	4.5 V	Isolated Module	15 V	60 %	34 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	510 mW
MEAN WELL USA Inc. SRS-4812	Through Hole	52.8 V	1	43.2 V	Isolated Module	12 V	60 %	42 mA	1000 V	OCP SCP	16-DIP Module 8 Leads	0.89 in	0.39 in	0.33 in	22.6 mm	8.4 mm	9.9 mm	ITE (Commercial)	-25 °C	71 °C	504 mW
