RP320 Series

Catalog

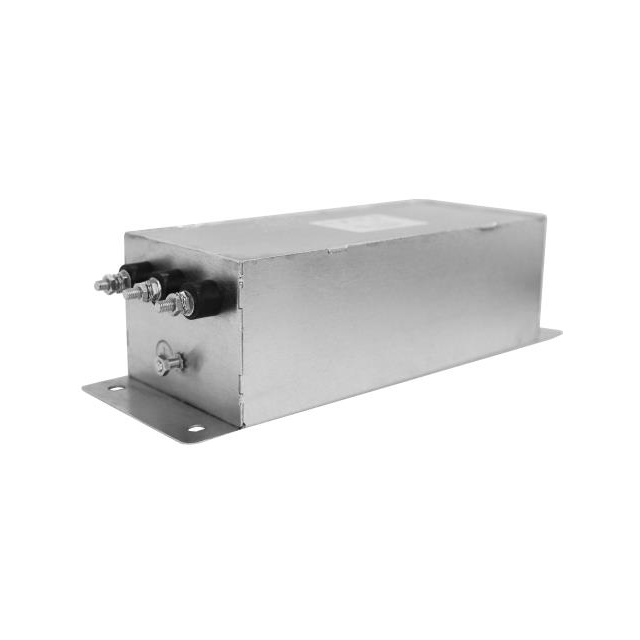

LINE FILTER 480VAC 200A CHASSIS

...

Part	Termination Style	Configuration	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Filter Type	Voltage - Rated AC	Voltage - Rated AC (Phase to Ground/Neutral)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Astrodyne TDI RP320-200-2000-C	Terminal Block	Two Stage	200 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-80-100-C	Terminal Block	Two Stage	80 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-300-100-S	Threaded Post (M12)	Two Stage	300 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-30-0-S	Threaded Post (M5)	Two Stage	30 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-50-1000-W	Wire Leads	Two Stage	50 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-150-0-C	Terminal Block	Two Stage	150 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-150-1000-S	Threaded Post (M5)	Two Stage	150 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-50-10-S	Threaded Post (M5)	Two Stage	50 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-150-1000-C	Terminal Block	Two Stage	150 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
Astrodyne TDI RP320-200-2000-S	Threaded Post (M5)	Two Stage	200 A	60 Hz	50 Hz	CE CSA cURus ENEC SEMKO	Three Phase (Delta)	480 V	3.5 kV	General Purpose	100 °C	-25 °C	Chassis Mount
