RELAY GEN PURP 3PDT 8A 12-240V

Part	Termination Style	Mounting Type	Pin Count	Contact Form	Features	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Coil Type	Coil Voltage (Type)	Coil Voltage (Max)	Coil Voltage (Min)	Relay Type	Delay Time (Maximum)	Delay Time (Minimum)	Function	Voltage Rating	Timing Initiate Method	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Circuit	Timing Adjustment Method

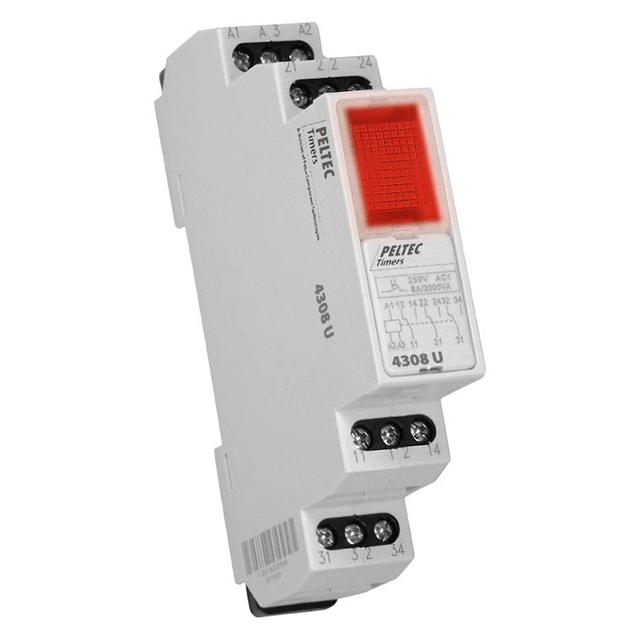

Peltec Timers and Controls 4308U	Screw Terminal	DIN Rail	3 pins	3 Form C PDT	Diode	8 A	-20 °C	55 °C	250 VAC	24 VDC	Non Latching	AC DC	240 VAC	12 VAC/DC	General Purpose

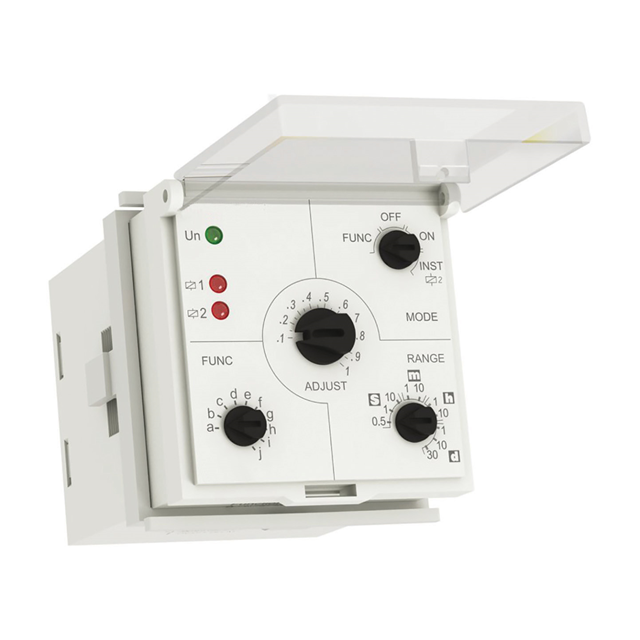

Peltec Timers and Controls 503	Plug In	Socketable	11 pins			16 A									Mechanical Relay	30 Days	0.05 Sec	Programmable (Multi-Function)	24VDC 250VAC	Input Voltage Trigger Signal	240 VAC	12 VDC	SPDT (1 Form C) x 2	Hand Dial

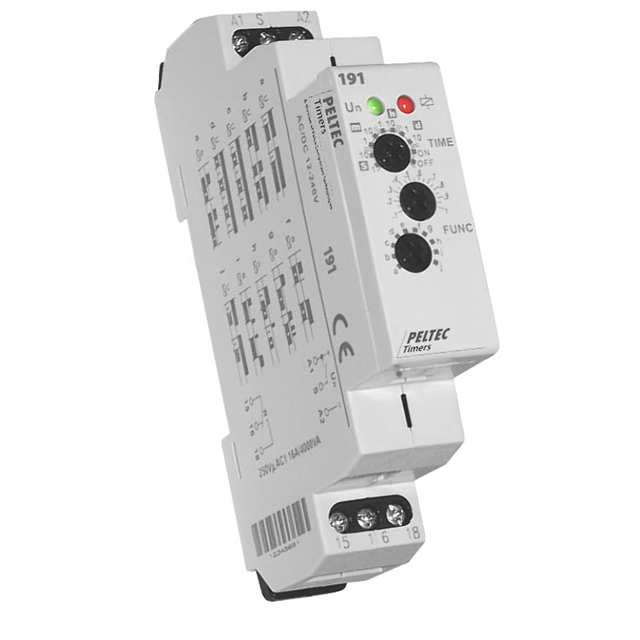

Peltec Timers and Controls 191	Screw Terminal	DIN Rail				16 A									Mechanical Relay	10 Days	0.1 Sec	Programmable (Multi-Function)	24VDC 250VAC	Input Voltage	240 VAC	12 VDC	SPDT (1 Form C)	Screwdriver Slot
Peltec Timers and Controls 505	Plug In	Socketable	11 pins			16 A									Mechanical Relay	30 Days	0.05 Sec	Programmable (Multi-Function)	24VDC 250VAC	Input Voltage Trigger Signal	240 VAC	12 VDC	SPDT (1 Form C) x 2	Hand Dial
