W25Q80 Series

Catalog

IC FLASH 8MBIT SPI/QUAD 8WSON

...

Part	Supplier Device Package	Memory Format	Memory Type	Write Cycle Time - Word, Page	Memory Organization	Memory Size	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Clock Frequency	Technology	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Package / Case	Package / Case	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Access Time	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case
Winbond Electronics W25Q80DLZPIG	8-WSON (6x5)	FLASH	Non-Volatile	3 ms	1M x 8	1024 KB	Surface Mount	2.3 V	3.6 V	104 MHz	FLASH - NOR	8-WDFN Exposed Pad	85 C	-40 ¯C	SPI - Quad I/O
Winbond Electronics W25Q80DLSNIG	8-SOIC	FLASH	Non-Volatile	3 ms	1M x 8	1024 KB	Surface Mount	2.3 V	3.6 V	104 MHz	FLASH - NOR	8-SOIC	85 C	-40 ¯C	SPI - Quad I/O	0.154 in	3.9 mm
Winbond Electronics W25Q80BVZPBG	8-WSON (6x5)	FLASH	Non-Volatile		1M x 8	1024 KB	Surface Mount	2.5 V	3.6 V	104 MHz	FLASH - NOR	8-WDFN Exposed Pad	85 C	-40 ¯C	SPI - Quad I/O			50 µs	3 ms	6 ns
Winbond Electronics W25Q80BVZPAG	8-WSON (6x5)	FLASH	Non-Volatile		1M x 8	1024 KB	Surface Mount	2.5 V	3.6 V	104 MHz	FLASH - NOR	8-WDFN Exposed Pad	105 °C	-40 °C	SPI - Quad I/O			50 µs	3 ms	6 ns
Winbond Electronics W25Q80DVZPIG TR	8-WSON (6x5)	FLASH	Non-Volatile	3 ms	1M x 8	1024 KB	Surface Mount	2.7 V	3.6 V	104 MHz	FLASH - NOR	8-WDFN Exposed Pad	85 C	-40 ¯C	SPI - Quad I/O
Winbond Electronics W25Q80BVNB03		FLASH	Non-Volatile		1M x 8	1024 KB		2.5 V	3.6 V	104 MHz	FLASH - NOR				SPI - Quad I/O			50 µs	3 ms	6 ns
Winbond Electronics W25Q80DLSVIG	8-VSOP	FLASH	Non-Volatile	3 ms	1M x 8	1024 KB	Surface Mount	2.3 V	3.6 V	104 MHz	FLASH - NOR	8-SOIC	85 C	-40 ¯C	SPI - Quad I/O	0.154 in	3.9 mm

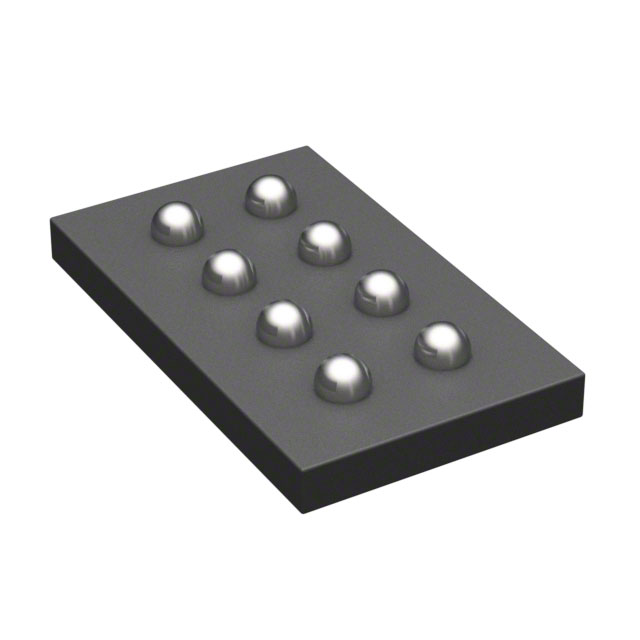

Winbond Electronics W25Q80BWBYIG TR	8-WLCSP	FLASH	Non-Volatile	800 µs	1M x 8	1024 KB	Surface Mount	1.65 V	1.95 V	80 MHz	FLASH - NOR	8-UFBGA WLCSP	85 C	-40 ¯C	SPI - Quad I/O						1.41	2.37
Winbond Electronics W25Q80BVSSIG TR	8-SOIC	FLASH	Non-Volatile	3 ms	1M x 8	1024 KB	Surface Mount	2.7 V	3.6 V	104 MHz	FLASH - NOR	8-SOIC	85 C	-40 ¯C	SPI - Quad I/O								0.209 in 5.3 mm
Winbond Electronics W25Q80JVSVIQ TR	8-VSOP	FLASH	Non-Volatile	3 ms	1M x 8	1024 KB	Surface Mount	2.7 V	3.6 V	133 MHz	FLASH - NOR	8-SOIC	85 C	-40 ¯C	SPI - Quad I/O	0.154 in	3.9 mm
