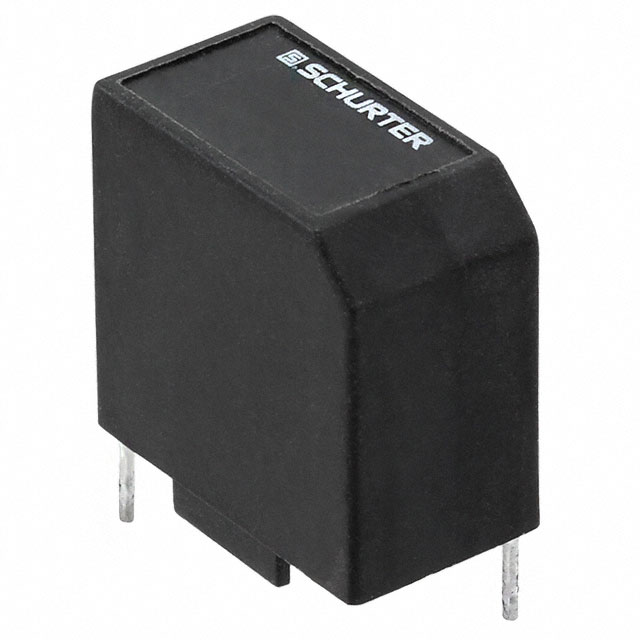

DLH-22 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FIXED IND 20UH 7A 12 MOHM TH
| Part | Package / Case | Tolerance | Shielding | DC Resistance (DCR) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Inductance | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Radial Horizontal - Corner Terminals | 15 % | Shielded | 12 mOhm | 0.512 " | 13 mm | 0.906 in | 23 mm | Through Hole | 20 µH | 7 A | 125 °C | -40 C | 0.945 " | 24 mm |
SCHURTER Inc. | Radial Horizontal - Corner Terminals | 15 % | Shielded | 1.55 Ohm | 0.512 " | 13 mm | 0.906 in | 23 mm | Through Hole | 3 mH | 600 mA | 125 °C | -40 C | 0.945 " | 24 mm |
SCHURTER Inc. | Radial Horizontal - Corner Terminals | 15 % | Shielded | 2.6 Ohm | 0.512 " | 13 mm | 0.906 in | 23 mm | Through Hole | 5 mH | 0.45 A | 125 °C | -40 C | 0.945 " | 24 mm |
SCHURTER Inc. | Radial Horizontal - Corner Terminals | 15 % | Shielded | 280 mOhm | 0.512 " | 13 mm | 0.906 in | 23 mm | Through Hole | 500 µH | 1.5 A | 125 °C | -40 C | 0.945 " | 24 mm |
